D 900 AP / D 1000 AP / D 1000 APG
51

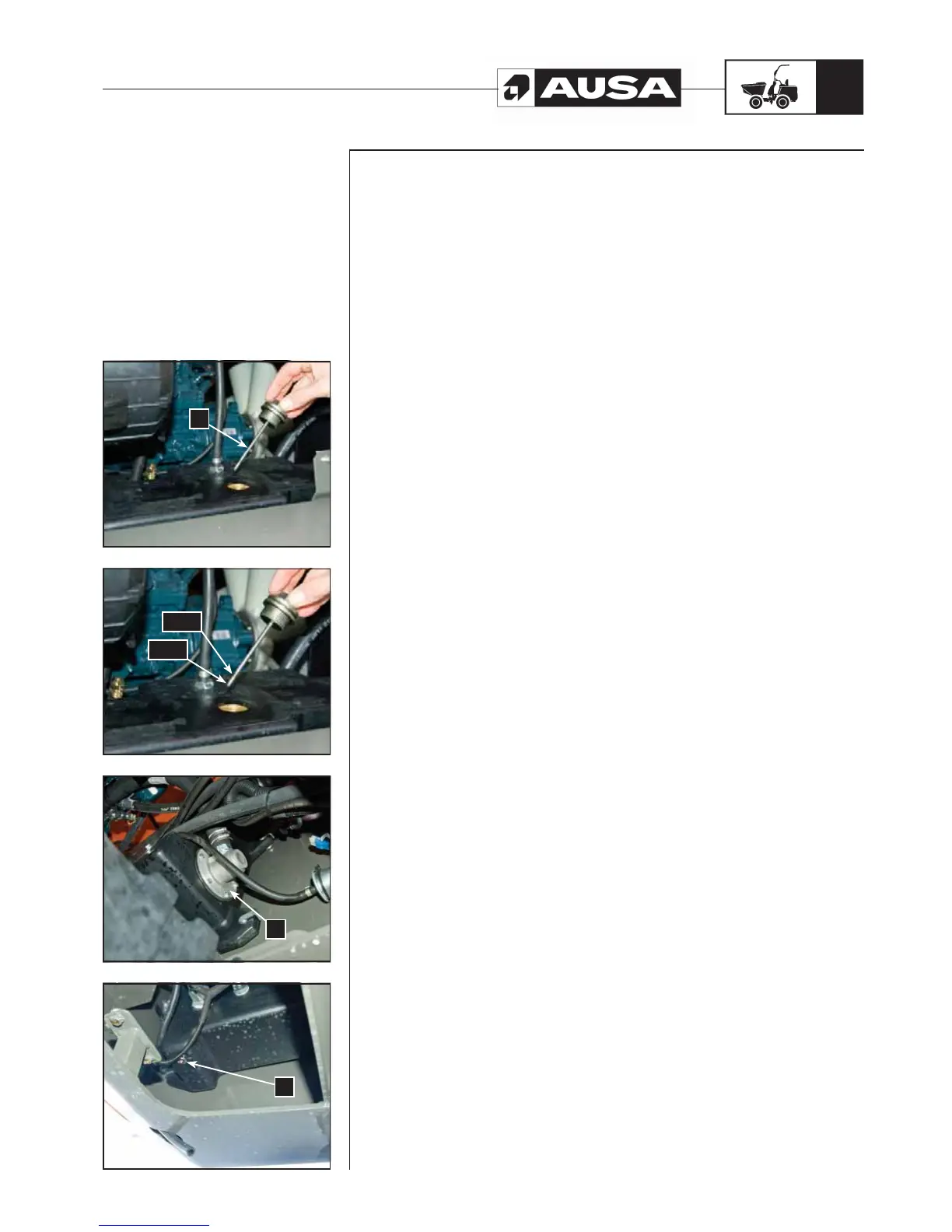

(fi g. 4) (fi g. 3) (fi g. 2) (fi g. 1)
10.- Hydraulic Circuit
Hydraulic oil level (fig. 1, 2, )
The hydraulic oil tank is located on the left side of the engine compartment.
Place that the dumper is on a level surface.
The oil level must always be checked with the hopper in the lower position and with the
engine stopped.
a. Filling cap and dipstick
Unscrew the filling cap which includes the dipstick. The oil level should be between the
MIN. and MAX. level marks.
If necessary, add oil through the same filling hole. Use a funnel to avoid spills.
Place and tighten the filling cap correctly and close the cover.
NOTE: Never exceed the maximum level.
NOTE: A hydraulic system that requires frequent top ups indicates that there are leaks.
See an authorised AUSA dealer.
Changing the hydraulic oil (fig. 3, 4)
b. Suction filter
c. Tank drainage cap.
Draining fuel is done via the cap situated on the lower part of the tank.
Clean the area around the drainage cap.
Place a container underneath the oil drainage cap.
Unscrew the cap.
In the hydraulic circuit there is a suction filter located inside the tank. It is a metallic filter
which must be cleaned each time the hydraulic oil is replaced.
Change the seal in the oil drainage cap. Clean the tank joint area and the oil drainage
cap and replace the cap.
Refill the tank as per the recommended oil level. See the LIQUIDS AND LUBRICANTS
section of the Manual for capacities.
Ensure that there are no leaks from the oil drainage cap.
WARNING!!
Clean any oil spillage.
Periodic
maintenance
operations
MAX
MIN
a
b
c
