4.1.4 Cable Entry Options
The MaxiCharger AC Compact supports three cable entry options for AC input cables and Ethernet and/or
RS485 cable: from the top, from the bottom, and from the back.
Depending on AC input cable entry, the Ethernet and/or RS485 cable entry will vary accordingly. The cable
entry options are as follows:

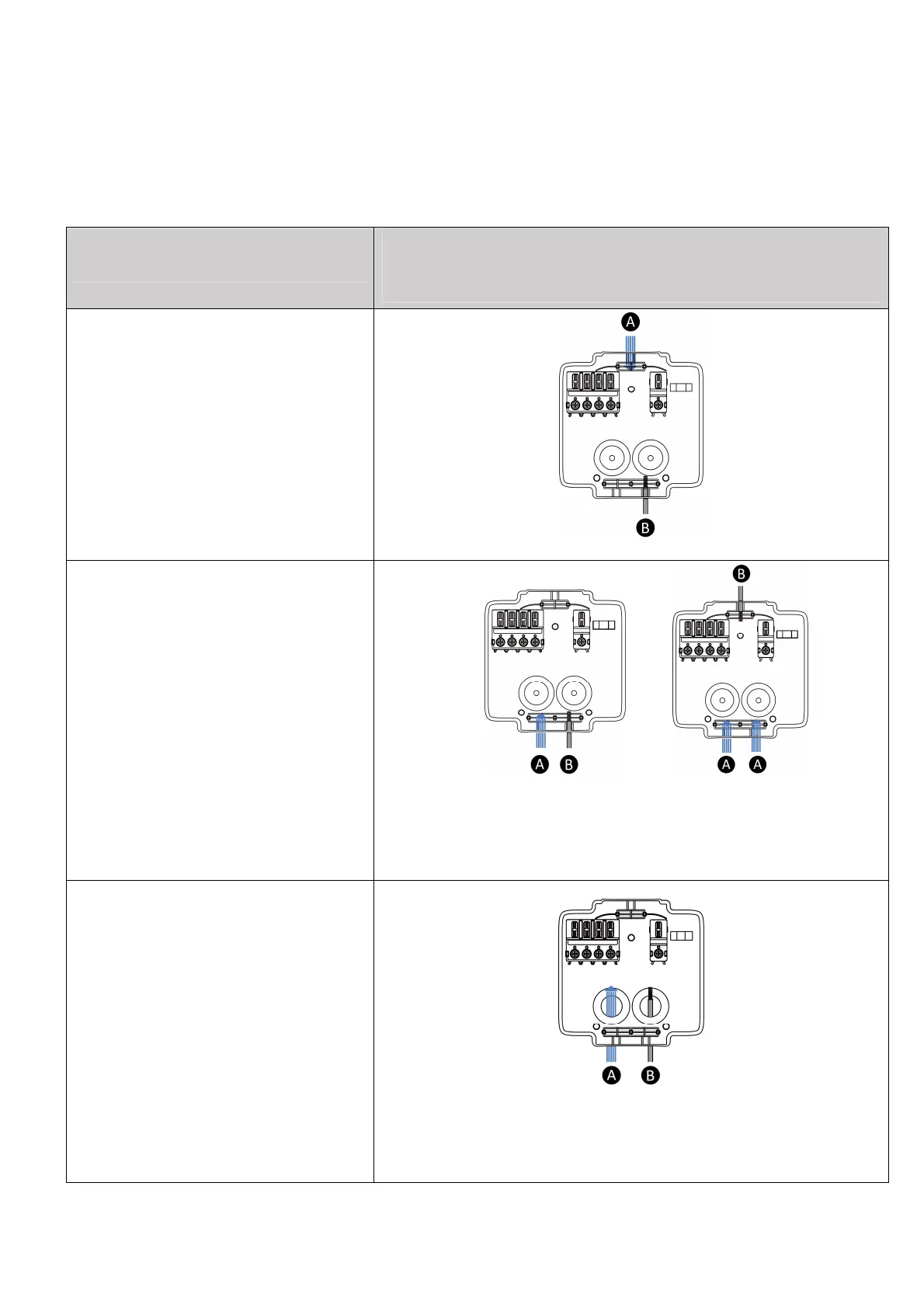

Cable Entry Options
A — AC Input Cable
B — Ethernet and/or RS485 Cable
1
2
NOTE: For parallel connection application, adjacent chargers can
be connected using the two bottom entries for AC input cables.
The Ethernet and/or RS485 cable can be engaged from the top
entry.
3
NOTE: Drill the two holes measuring 30 mm in diameter at the
designated locations and route cables into the wirebox before
installing the wirebox.
OR
