Autel MaxiCharger - Installation Guide; Wiring Diagrams

Autel MaxiCharger
78 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
25

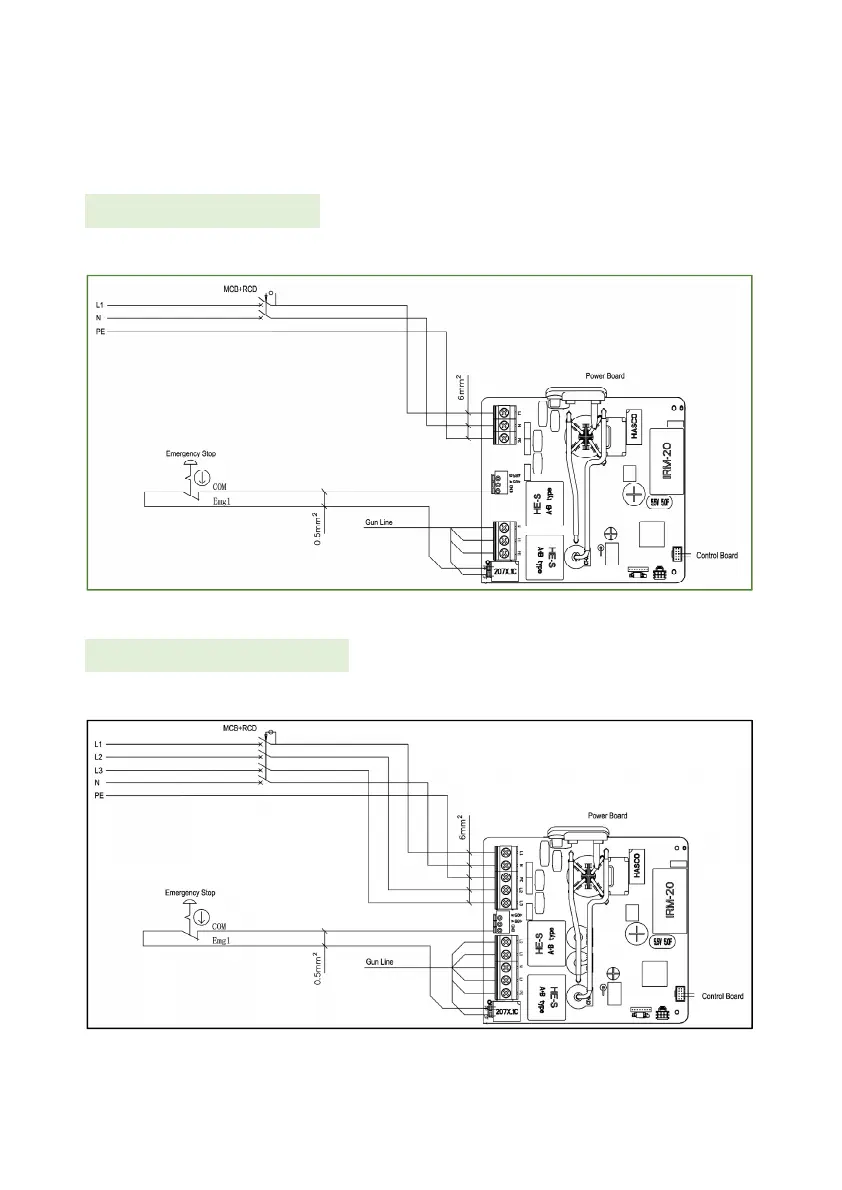

3.4 Wiring Diagram for MCB, RCD,
and Emergency Stop
For 7.4 kW model:
For 11/22 kW Model:
