4.3 Mechanical Installation

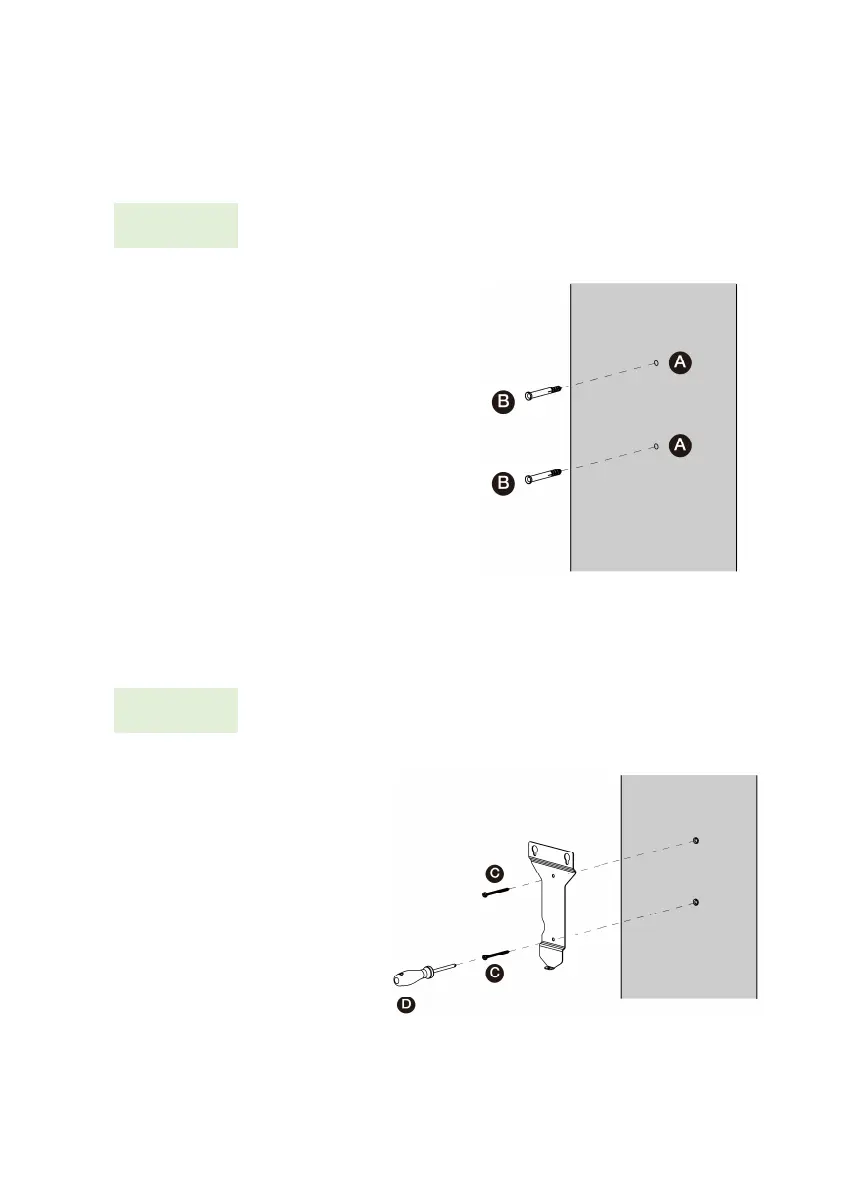

STEP 1
1. Place the wall dock against
the wall and level it using a
spirit level.
2. Mark the two lower
mounting holes (A) with a
pencil and drill two 8 mm
holes.
3. Insert the two 8 mm wall
plugs (B) into the holes.
STEP 2
1. Attach the wall dock to
the mounting location
by inserting two M6 x
50 screws (C) into the
lower mounting holes.
2. Tighten the two M6 x
50 screws using the
PH2 screwdriver (D).
