32
1. Diagnostics Toolbar Buttons – tap the drop-down button at the top
center of the screen and the toolbar buttons will display. See Table 4- 2
Diagnostics Toolbar Buttons on page 21 for detailed descriptions of the
operations for each button.
2. Main Section
Name Column – displays the parameter names.
a) Check Box – tap the check box on the left side of the
parameter name to make item selection. Tap the check box
again to deselect the item.
b) Drop-down Button – tap the drop-down button on the right side
of the parameter name opens a submenu, providing data
display mode options.
Value Column – displays the values of the parameter items.
Unit Column – displays the unit for the parameters.
To change the unit mode, tap the Setting button on the top
toolbar and select a required mode. See Unit on page 70 for
more information.
Display Mode
There are four types of display modes available for data viewing. Select
the proper mode for the diagnostic purpose.
Tap the drop-down button on the right side of the parameter name to
open a sub menu. There are four buttons to configure the data display

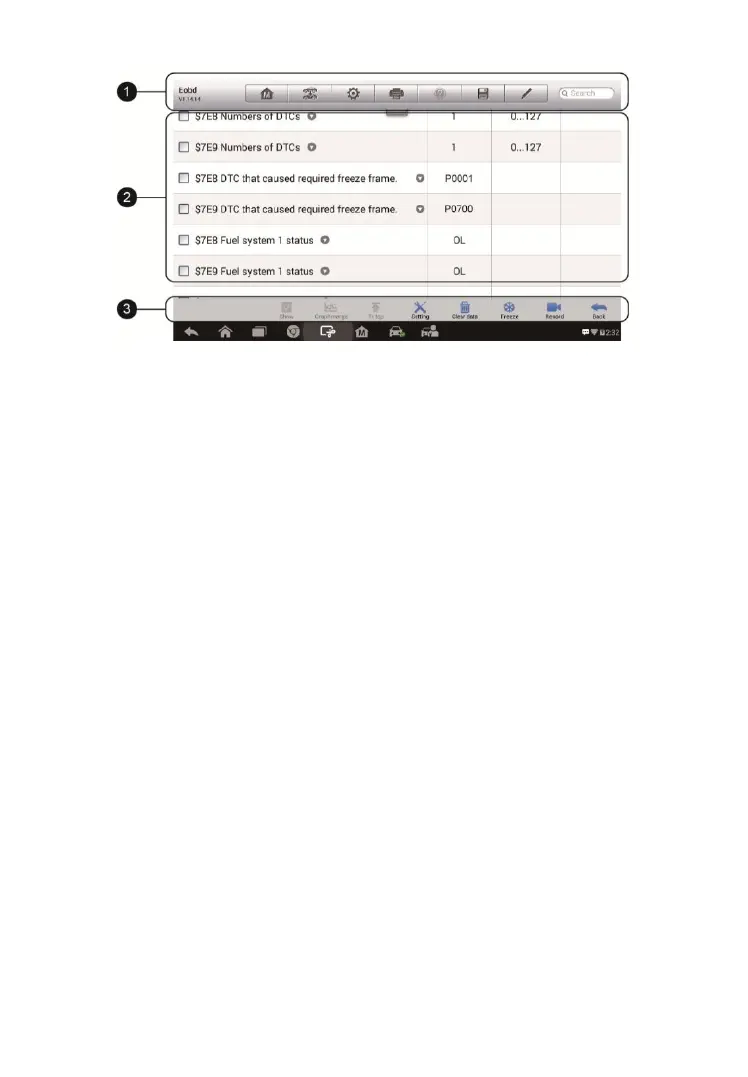

Figure 4- 14 Sample Live Data Screen
