5
3 Tool Information
Tool Description

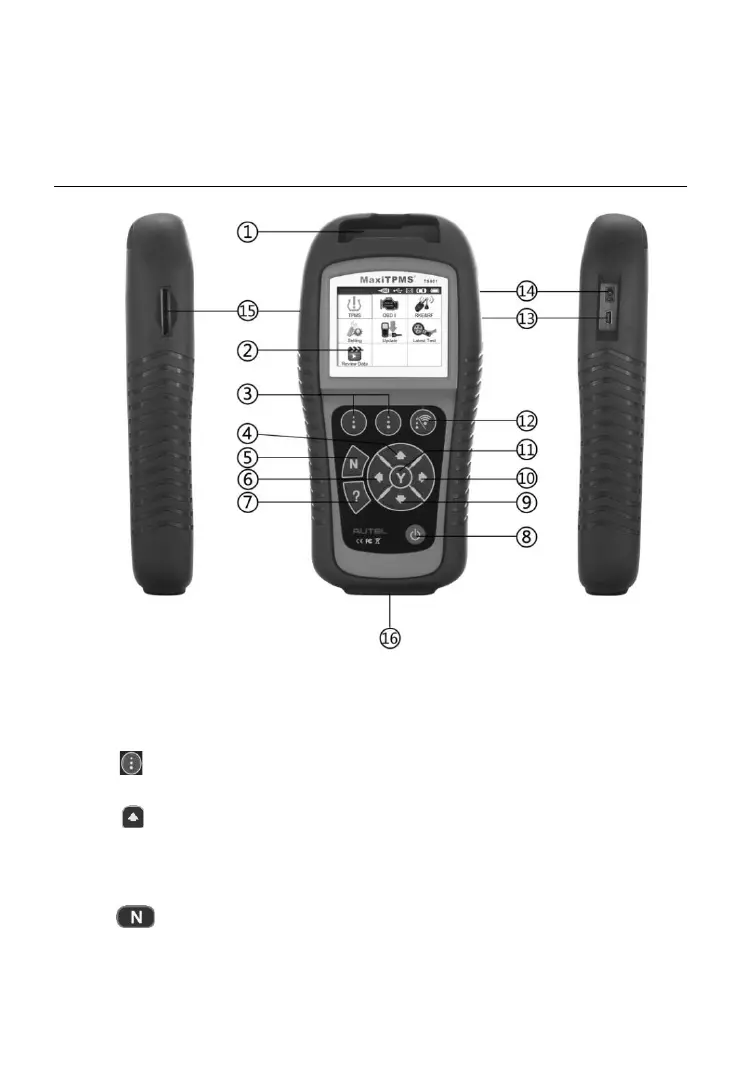

Figure 3-1
1) SENSOR SLOT – holds the MX-Sensor needs to be programmed.
2) LCD DISPLAY – displays the menus and test screens.
3) FUNCTION BUTTONS – corresponds with “buttons” on screen for
executing commands.
4) UP SCROLL BUTTON – moves up through menu and submenu
items in menu mode. When more than one set of data are retrieved,
use this button to move up to previous screens for additional data. It is
also used to view previous trouble code when viewing DTCs.
5) N BUTTON – cancels a selection (or action) from a menu or return
to previous menu.
