64
2) Wait a few seconds while the scan tool validates the PID MAP.
3) Use the UP/DOWN scroll button to select a specific item or use the
LEFT/RIGHT scroll button to turn to next page.

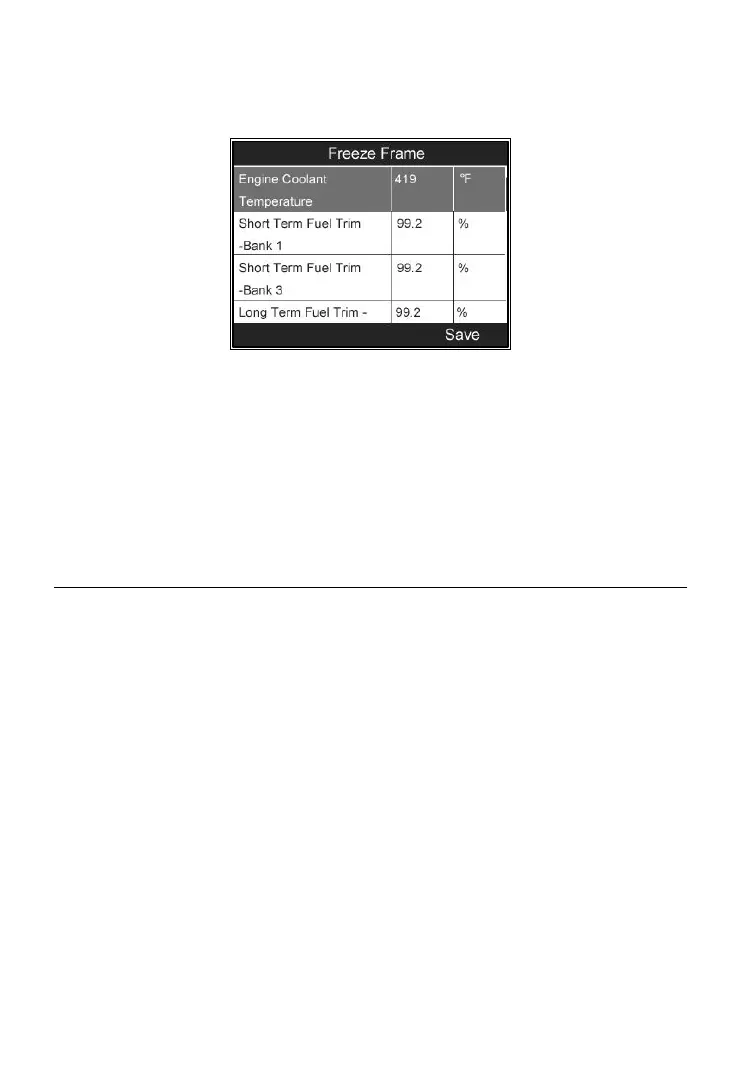

Figure 6-13
4) If there is no available freeze frame data, an advisory message “No
freeze frame data stored!” shows on the display.
5) Press the corresponding FUNCTION button Save to record freeze
frame to Review Data for later playback or printing. A confirming
message “Save success!” shows on the screen and press any key to
continue.
Retrieve I/M Readiness Status
Some latest vehicle models may support two types of I/M Readiness tests:
A. Since DTCs Cleared – indicates status of the monitors since the DTCs
are erased.
B. This Drive Cycle – indicates status of monitors since the beginning of
the current drive cycle.
An I/M Readiness Status result of “NO” does not necessarily indicate that
the vehicle being tested will fail the state I/M inspection. For some states,
one or more such monitors may be allowed to be “Not Ready” to pass the
emissions inspection.
⚫ OK – indicates that a particular monitor being checked has completed
its diagnostic testing.
⚫ INC – indicates that a particular monitor being checked has not
completed its diagnostic testing.
⚫ N/A – the monitor is not supported on that vehicle.
