OM-270 231 Page 14

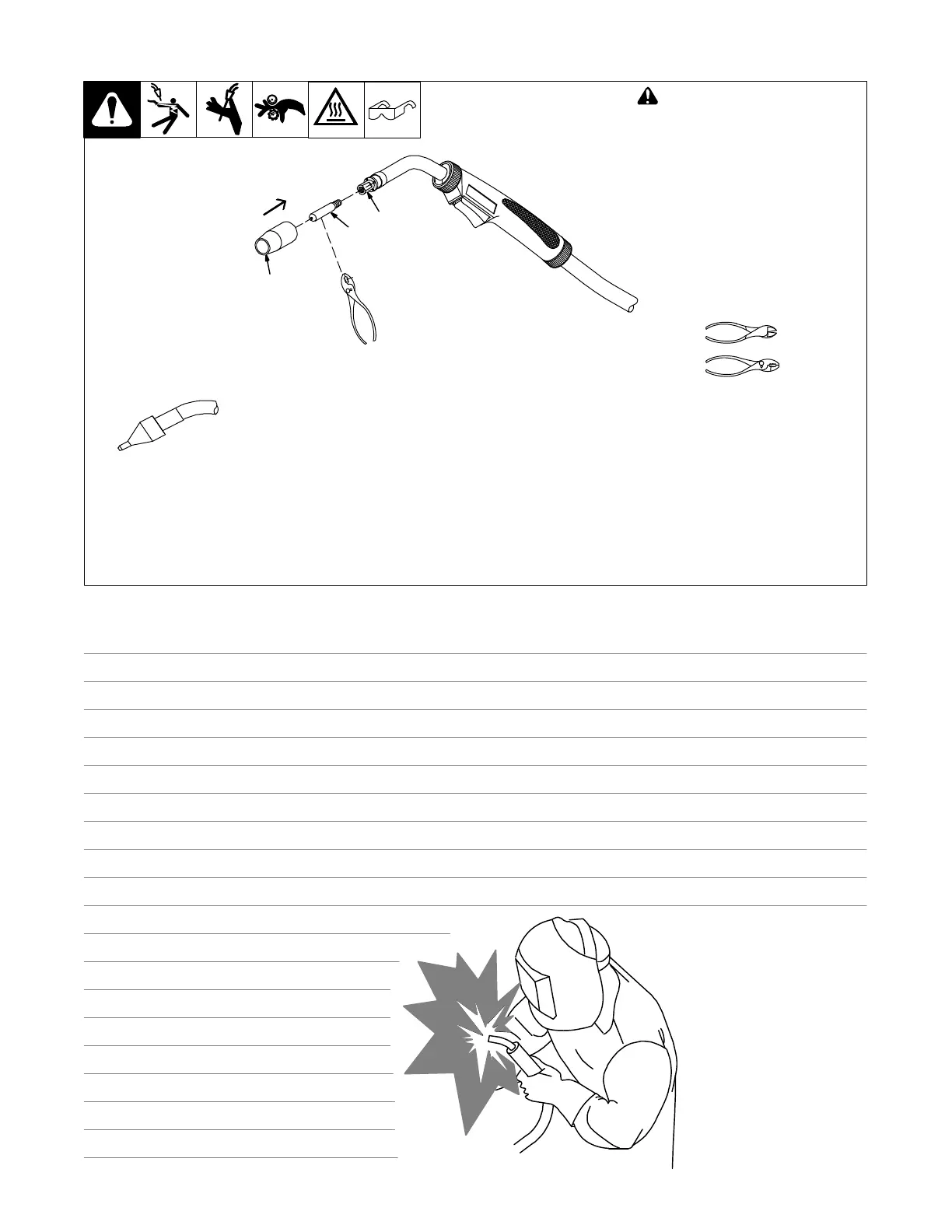

5-6. Installing Contact Tip And Nozzle
Tools Needed:
Ref. 804 241-A
! Turn off welding power source.
1 Nozzle
Remove nozzle.
2 Contact Tip
3 Tip Adapter
Thread welding wire through gun (see
Section 5-7).
Slide contact tip over wire and tighten
tip into tip adapter.
Install nozzle.
Flux Nozzle
Use with flux cored wire only. Narrow
design allows access in tight spaces
and provides better visibility of
puddle during welding.
Push nozzle over contact tip and
adapter until it is seated onto adapter.
Contact tip will be exposed
approximately 7/16 in. (11.3 mm)
when installed properly.
1
2
3
Notes
Work like a Pro!
Pros weld and cut
safely. Read the
safety rules at
the beginning
of this manual.
