SECTION 9 − FCAW WELDING GUIDELINES

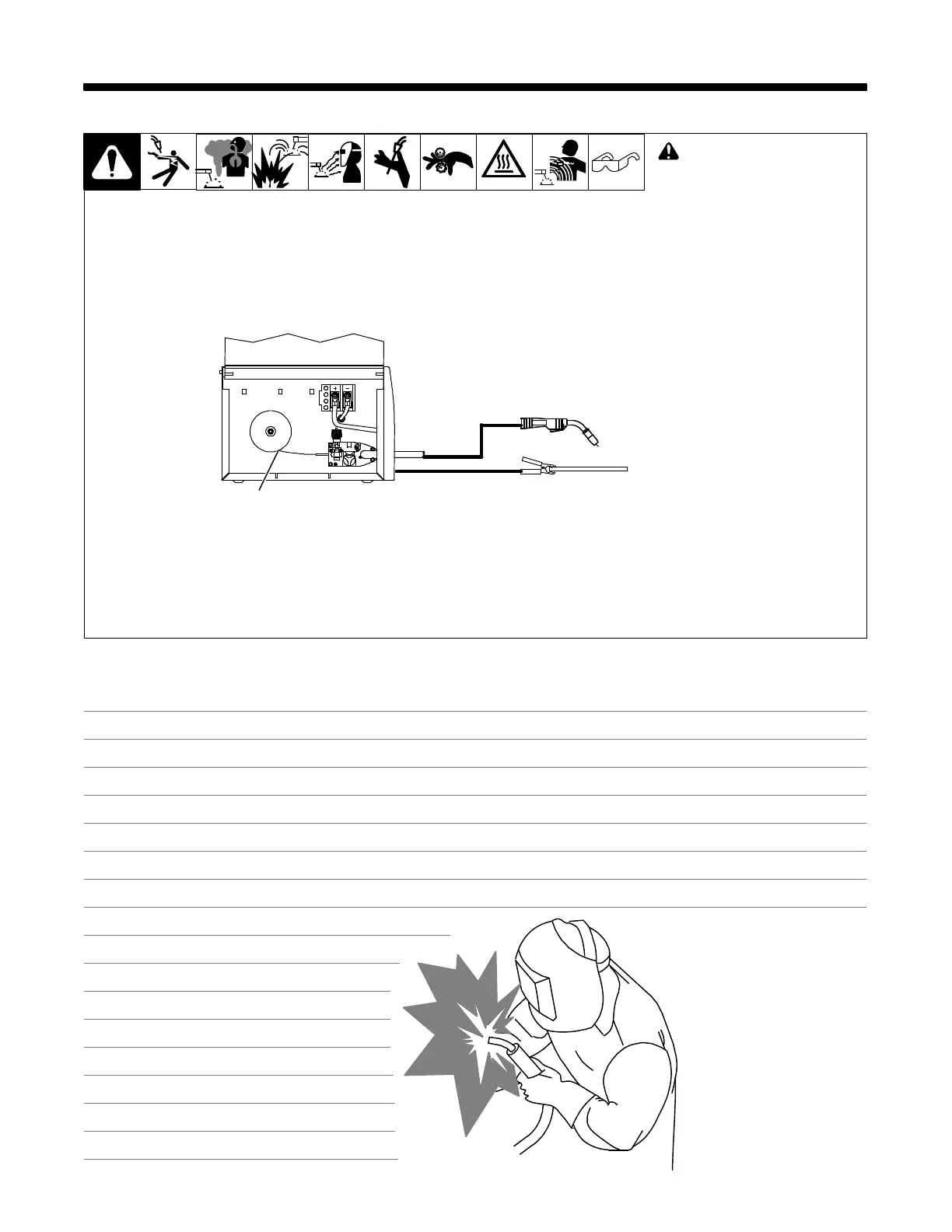

9-1. Typical FCAW Process Connections
Wire Feeder/
Power Source
Workpiece
Gun
Work Clamp
Self-Shielding Flux
Core Wire
FCAW1 2014−11 − Ref. 803 444-A
! Weld current can damage
electronic parts in vehicles.
Disconnect both battery
cables before welding on a ve-
hicle. Place work clamp as
close to the weld as possible.
. The Illustration is representative
of most equipment. Your unit
may differ from that shown.
