OM-270 231 Page 26

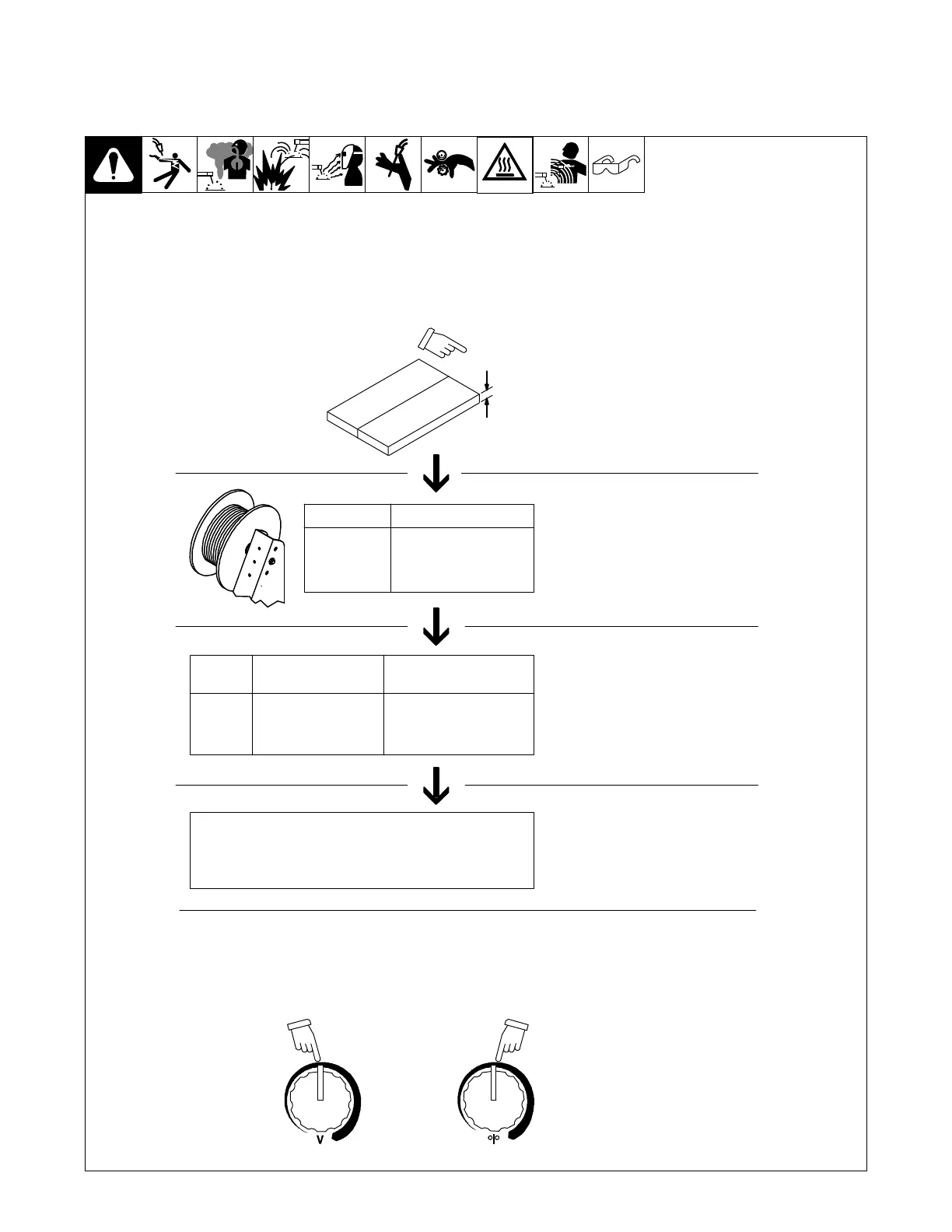

9-2. Typical Control Settings
. Auto−Sett and single-knob control units operate differently than outlined below. See Operation section of Owner’s Manual for specific information
on control settings.
3.5 x 125 A = 437 ipm
2 x 125 A = 250 ipm
1.6 x 125 A = 200 ipm
30 − 90 A
40 − 145 A
50 − 180 A
Convert Material
Thickness to
Amperage (A)
Material thickness determines weld
parameters.
.035 in
Recommendation
Wire Speed
(Approx.)
1/8 or 0.125 in.
(0.001 in. = 1 ampere)
0.125 in. = 125 A
Wire Size Amperage Range
0.023 in.
0.030 in.
0.035 in.
Select Wire Size
Wire
Size
0.023 in.
0.030 in.
0.035 in.
3.5 in per ampere
2 in per ampere
1.6 in per ampere
Select Wire Speed
(Amperage)
125 A based on 1/8 in.
material thickness
ipm = inches per minute
Low voltage: wire stubs into work
High voltage: arc is unstable (spatter)
Set voltage midway between high/low voltage
Select Voltage
Ref. 803 441-A
Voltage controls height and
width of weld bead.
Wire speed (amperage) controls weld
penetration (wire speed = burn-off rate)
. These settings are guidelines only. Material and wire type, joint design, fit-up, position, etc. af-
fect settings. Test welds to be sure they comply to specifications.
