Automate 425 User Manual

© 2001 Directed Electronics, Inc. Vista, CA 21
In order for this system to control one or more aftermarket actuators, a 451M or two relays (optional) are needed.
Vehicles without factory power door locks require the installation of one actuator per door. This requires mount-
ing the door lock actuator inside the door. Other vehicles may only require one actuator installed in the driver's
door if all door locks are operated when the driver's lock is used. This type of installation is required to operate
factory lock systems in Volvo (except 850), SAAB, and most Mazda, Isuzu and Subaru models. The fuse used on
12-volt inputs should be 7.5A per motor installed in the vehicle.

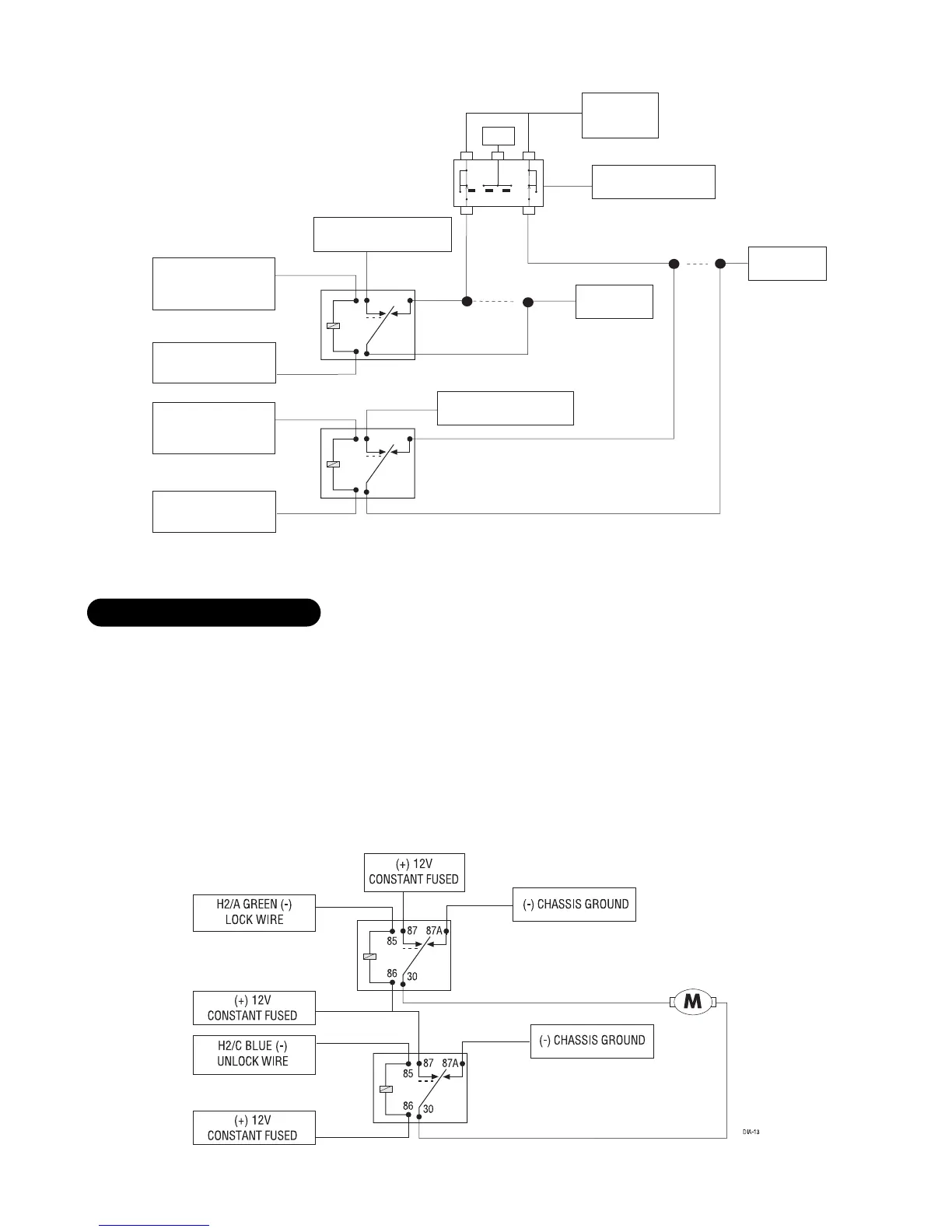

type D: after-market actuators
85
86
30
87
87A
85
86
30
87
87A
H 2/A GREEN (-)
LOCK WIRE
(+) 12V
CONSTANT FUSED
H 2/C BLUE (-)
UNLOCK WIRE
(+) 12V CONSTANT FUSED
MOTOR (+)
LOCK WIRE
MOTOR (+)
LOCK WIRE
MASTER SWITCH
LOCK UNLOCK
(+) 12V
XX
CUT
XX
CUT
(-) CHASSIS
GROUND
(+) 12V CONSTANT FUSED
(+) 12V
CONSTANT FUSED
