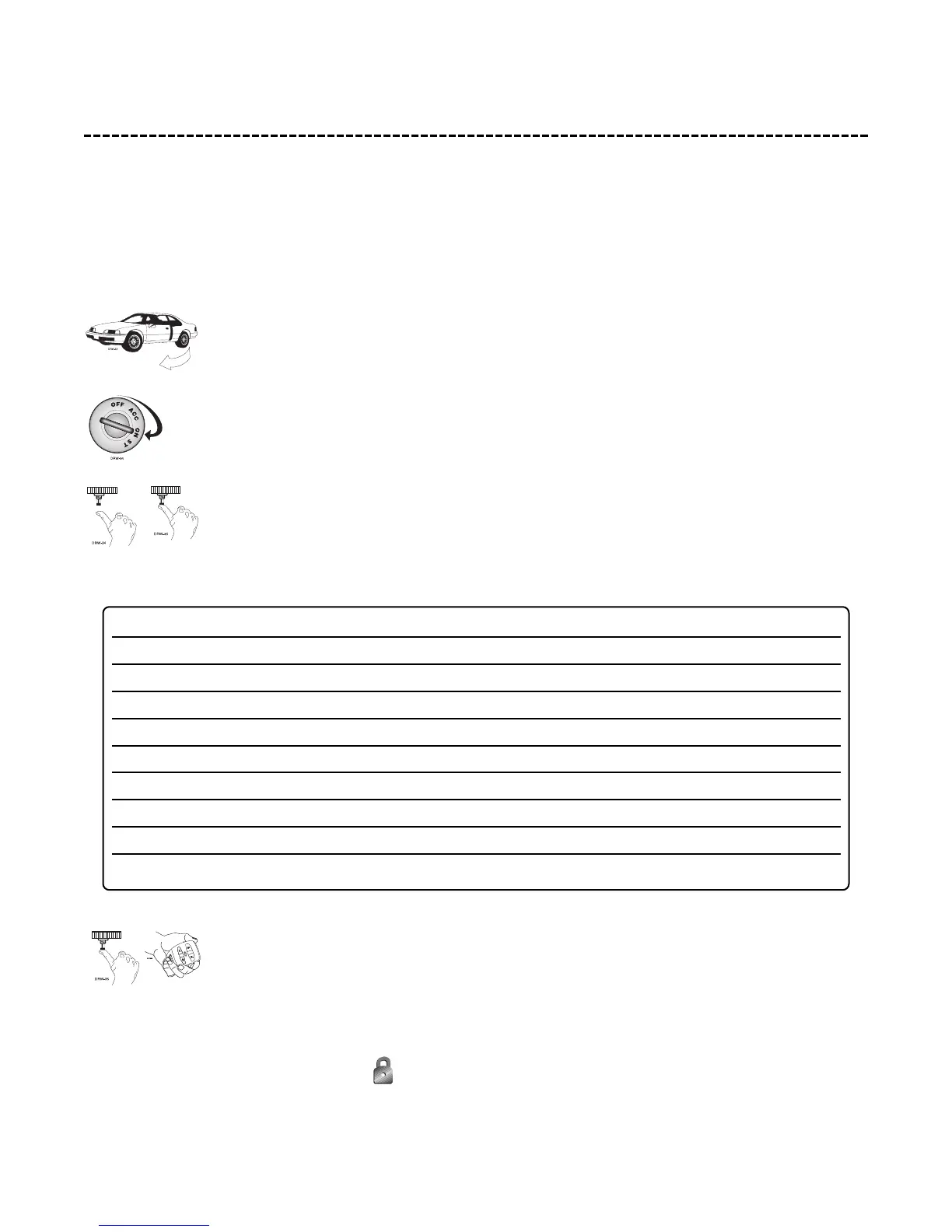

transmitter/receiver learn routine
The system comes with two transmitters that have been taught to the receiver. The receiver can store up to four
different transmitter codes in memory. Use the following learn routine to add transmitters to the system or to
change button assignments if desired. The transmitter learn routine can be locked using the optional PC inter-
face or DEI
®
Bitwriter
™
. If the learn routine is locked no transmitters can be programmed to the system.
1. Open a door. (The GREEN wire, H1/5, or the VIOLET, H1/7 must be connected.)
2. Turn the ignition on. (The YELLOW wire, H1/9 must be connected.)
3. Select the receiver channel. Press and release the Valet
®
/program switch the number of
times necessary to access the desired channel. Press and HOLD the Valet
®
/program switch
once more. The siren will chirp and the LED will blink the number of times corresponding
to the channel that is accessed.
4. Press the transmitter button. While HOLDING the Valet
®
/program switch, press the trans-
mitter button that you wish to assign to that channel. The unit will chirp indicating
successful programming. It is not possible to teach a transmitter button to the system more
than once.
Channel 1 AUTO-LEARN: Programming to channel one will automatically configure the channels in the
standard configuration. (Refer to owner’s guide, Standard Configuration.)
CHANNEL NUMBER FUNCTION WIRE COLOR
1 Auto learn
2 Delete all transmitters
3 Arm/Disarm/Panic
4 Channel Two Red/White
5 Channel Three White/Blue
6 Channel Four Violet/Black
7 Arm
8 Disarm
9 Panic
To Next Page
