Automated Logic RC642

25
If you have problems mounting, wiring, or addressing the Room Controller, contact ALC
Technical Support.

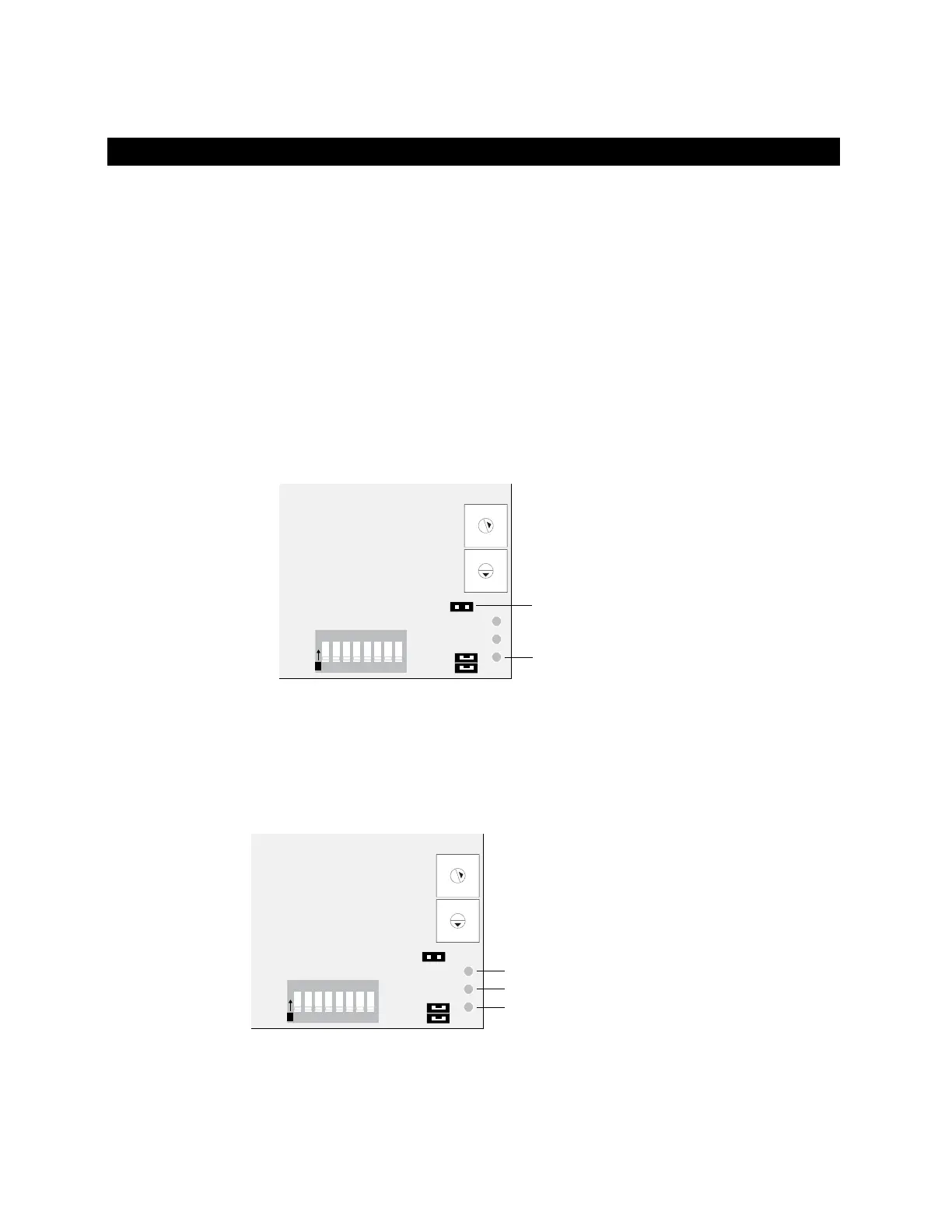

If you cannot communicate with the Room Controller after downloading it, as a last resort,
you can manually format the Room Controller to erase its memory.
1 Remove power from the Room Controller.
2 Make sure the address switches are not set to 0, 0.
3 Put the Format jumper on.
4 Apply power to the Room Controller.
5 When the Error LED stops flashing and turns on, remove the Format jumper.
Format jumper
Error LED
9
8
7
6
5
4
3
2
1
0
9
8
7
6 5
4
3
2
1
0
1 2 3 4 5 6 7 8
O
N
6 Download the Room Controller.
The LED's on the Room Controller show the status of certain functions.
Error LED
Run LED
Power LED
9
8
7
6
5
4
3
2
1
0
9
8
7
6 5
4
3
2
1
0
1 2 3 4 5 6 7 8
O
N
If the
Power LED is on, the Room Controller has power.
Troubleshooting a networked Room Controller
Formatting the
Room Controller
LED's
