Automated Logic RC642

To Next Page

To Previous Page

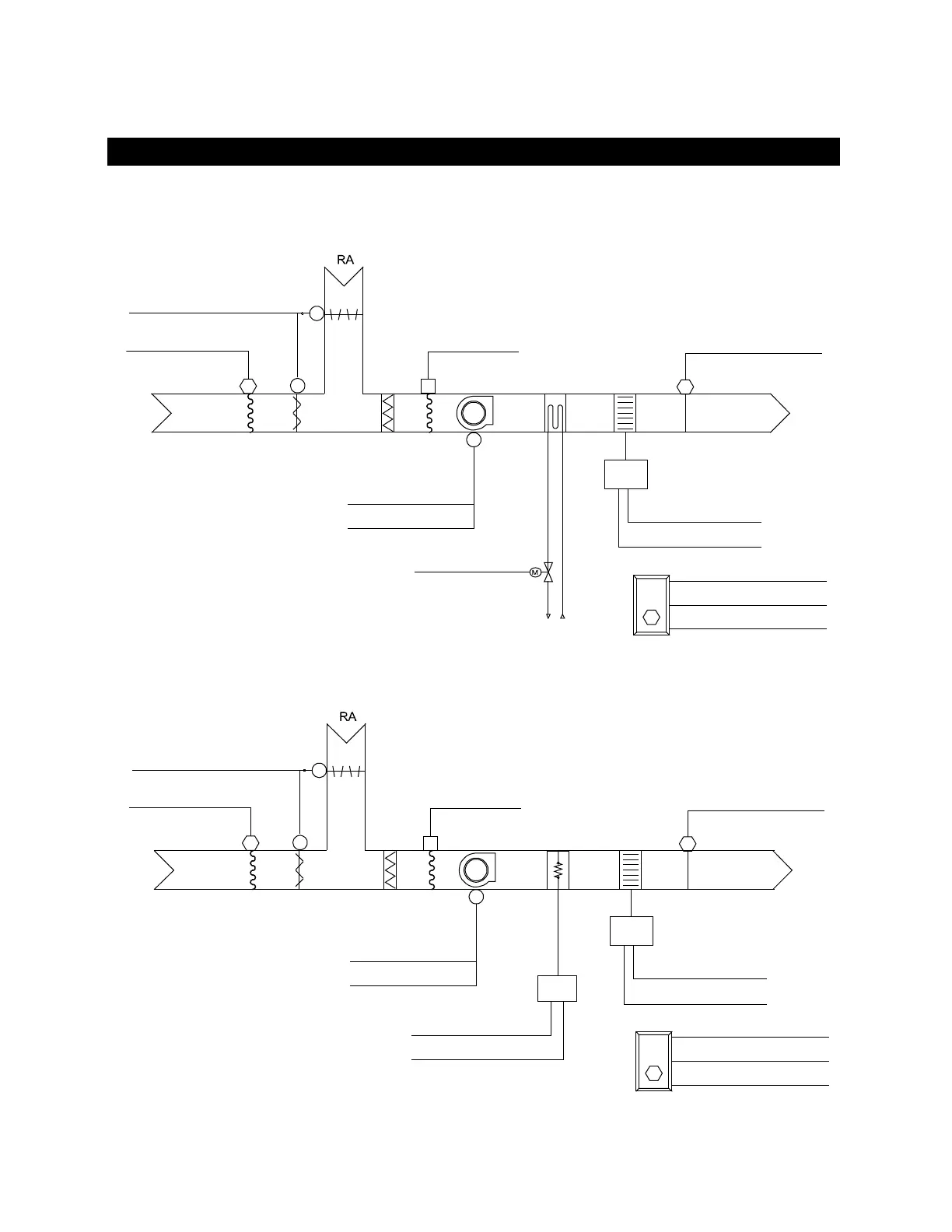

Typical layout with analog heating and cooling:

N.C.

N.O.

AO - Mixed air dampers

BO - Fan low speed

BO - Fan high speed

(optional)

AI - Discharge air temp

(optional)

BO - Cooling stage 1

BO - Cooling stage 2

AI - Zone temp

AI - Zone setpoint adjust

BI - Zone override

BI - Freezestat

(optional)

AI - Outside air temp

(optional)

AO - Heating valve

HWR HWS

Typical layout with staged heating and cooling:

N.C.

N.O.

AO - Mixed air dampers

BO - Fan low speed

BO - Fan high speed

(optional)

AI - Discharge air temp

(optional)

BO - Cooling stage 1

BO - Cooling stage 2

AI - Zone temp

AI - Zone setpoint adjust

BI - Zone override

BI - Freezestat

(optional)

AI - Outside air temp

(optional)

Elec

BO - Heating stage 1

BO - Heating stage 2

#12: Unit ventilator - 2-speed fan

Control schematics
