2 To set the beginning time for the schedule, tap or to change the minutes
or hold down the buttons to change the hour.
3 Press SCHEDULE again and set the beginning time for the Unoccupied schedule.
NOTE To delete a schedule, set Occupied and Unoccupied to the same time.
If you have problems mounting, wiring, or addressing the Room Controller, contact ALC
Technical Support.

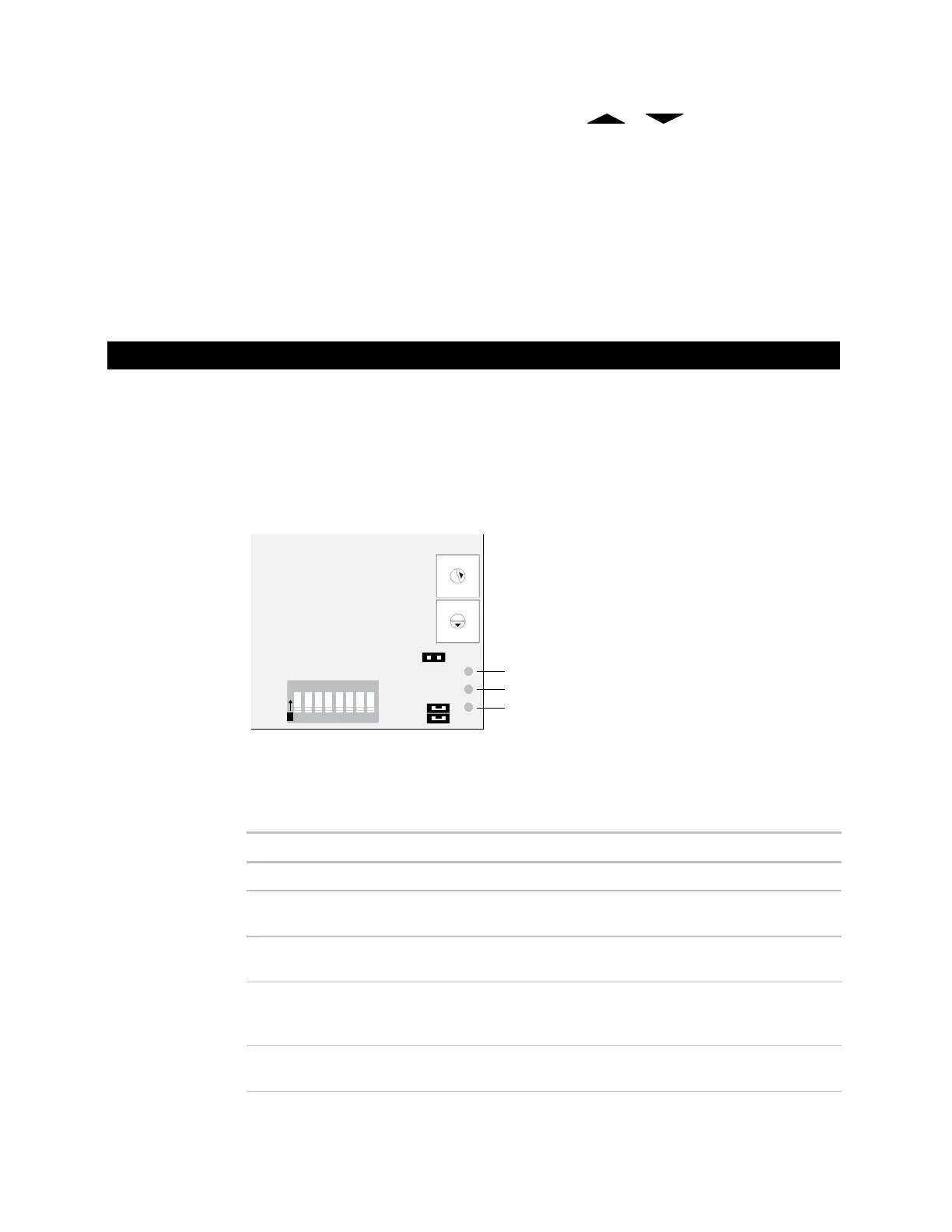

The LED's on the Room Controller show the status of certain functions.
Error LED
Run LED
Power LED
9
8
7
6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
0
1 2 3 4 5 6 7 8
O
N
If the
Power LED is on, the Room Controller has power.
The Run and Error LED's indicate controller and network status.
2 flashes per second Off Normal
2 flashes per second 2 flashes,
alternating with
LED
Five minute auto-restart delay
after system error
2 flashes per second 3 flashes,
then off
The controller has just been
formatted
2 flashes per second 4 flashes,
then pause
Two or more devices on this
network have the same
ARC156 network address
2 flashes per second 1 flash per second The controller is alone on the
network
Troubleshooting a stand-alone Room Controller
LED's
To Next Page
