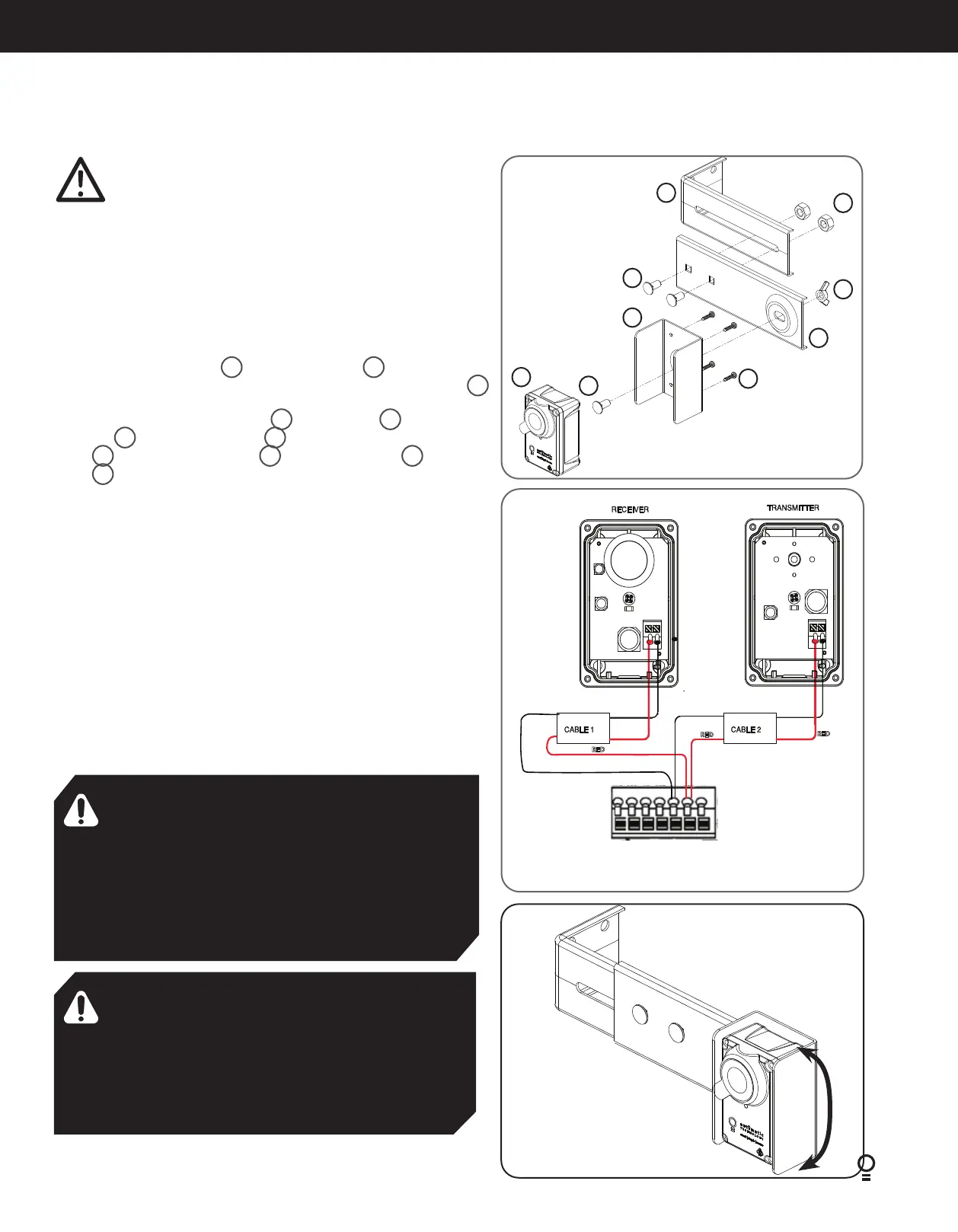

6.6 Safety Beam Installation
6.6.1 Safety Infra-Red Beam Kit (P/N 62047)
A Safety Beam extends across the door opening. This Safety Beam is
designed to detect an obstruction while the door is closing and to send a
signal to the door operator to reverse or stop the door movement. Install
the Safety Beam indoor only.
6.6.2 Assembling the Mounting Bracket
a. Place the round screw
3
through the Bracket
5
. Attatch the
Safety Beam Transmitter (TX) using four (4) M3 x 5 Taptite screws
4
(Fig. 6.6.1).
b. Connect the mounting bracket
2
to the Bracket
5
using the wing
nut
8
onto the round screw
3
. Secure the adjustment bracket
6
to the mounting bracket
2
using two (2) screws
3
and nuts
7
.
c. Repeat steps (a) and (b) to assemble the Safety Beam Receiver (RX).
d. Locate the Safety Beam in a strategic location in the door opening.
We recommend that the sensor is placed no higher than 6” and no
lower than 5”above the floor level. The mounting surface should be
rigid.
6.6.3 PE Assist Alignment
a. Wire the PE Beams as per Wiring Diargram (Fig. 6.6.2).
b. Power up the operator with the Safety Beam connected. The green
LED of the transmitter should be ON to indicate that power is present.
c. If the receiver is connected properly and the red LED is flashing and
operator is beeping (only in limit set mode) while the green LED of
the transmitter is ON, the transmitter and/or receiver are not aligned.
d. Make horizontal and/or vertical adjustment on the transmitter and/
or receiver until the red LED of the receiver turns steady on and
operator stops beeping, indicating alignment (Fig. 6.6.3).
e. Blocking the safety beam with an object will cause operator to beep,
confirming the Safety beam is functioning correctly.
RED
BLACK
RED
BLACK
RED
BLACK
BLACK
SB1 OV V+ SB2 OV OSC AUX
4
2
3
3
6
8
7
5
1
Fig.6.6.1
Fig.6.6.2
Fig 6.6.3
CAUTION: The Safety Beam must be installed and connected
before the travel limits are set.
ATTENTION: Le faisceau de sécurité doit être installé et
connecté avant de définir les fins de course.
WARNING: When the Safety Beam is fitted, the doorway
must be clear of all obstructions and persons at all times.
Incorrect location of the safety beams may not give safety
protection at all times. Check to make sure that the height
of the beam gives maximum protection.
AVERTISSEMENT: Lorsque le faisceau de sécurité est
en place, le passage doit être dégagé en permanence.
Si le faisceau est mal placé, la sécurité ne peut pas être
assurée correctement. Assurez-vous que la hauteur du
faisceau assure une protection maximale.
WARNING: Connect the Safety Beam as per
diagram in Fig 6.6.2. Tampering with the Safety
Beam could result in serious personal injury and/
or property damage and will void the warranty.
AVERTISSEMENT: Raccordez le faisceau de sécurité
conformément au schéma Fig. 6.2.2. Saboter le faisceau
de sécurité présente un risque de blessure corporelle
grave et/ou de dommages matériels, et annule la garantie.
