6.7. Setting the Travel Limits
WARNING! The door will automatically close,
open and close again after the next step.
Ensure that nothing is in the door’s path.
AVERTISSEMENT! La porte va se fermer puis s’ouvrir
automatiquement, avant de se fermer. S’assurer que
rien ne bloque l’ouverture ou la fermeture de la porte.
WARNING! In setting the close limit position, do
not force the door into the floor with excessive
force, as this can interfere with the ease of
operation of the manual release mechanism.
AVERTISSEMENT! Ne pas forcer la porte contre
le sol lors du réglage de fin de course, car une
force excessive peut entraver le fonctionnement
du système de déclenchement manuel.

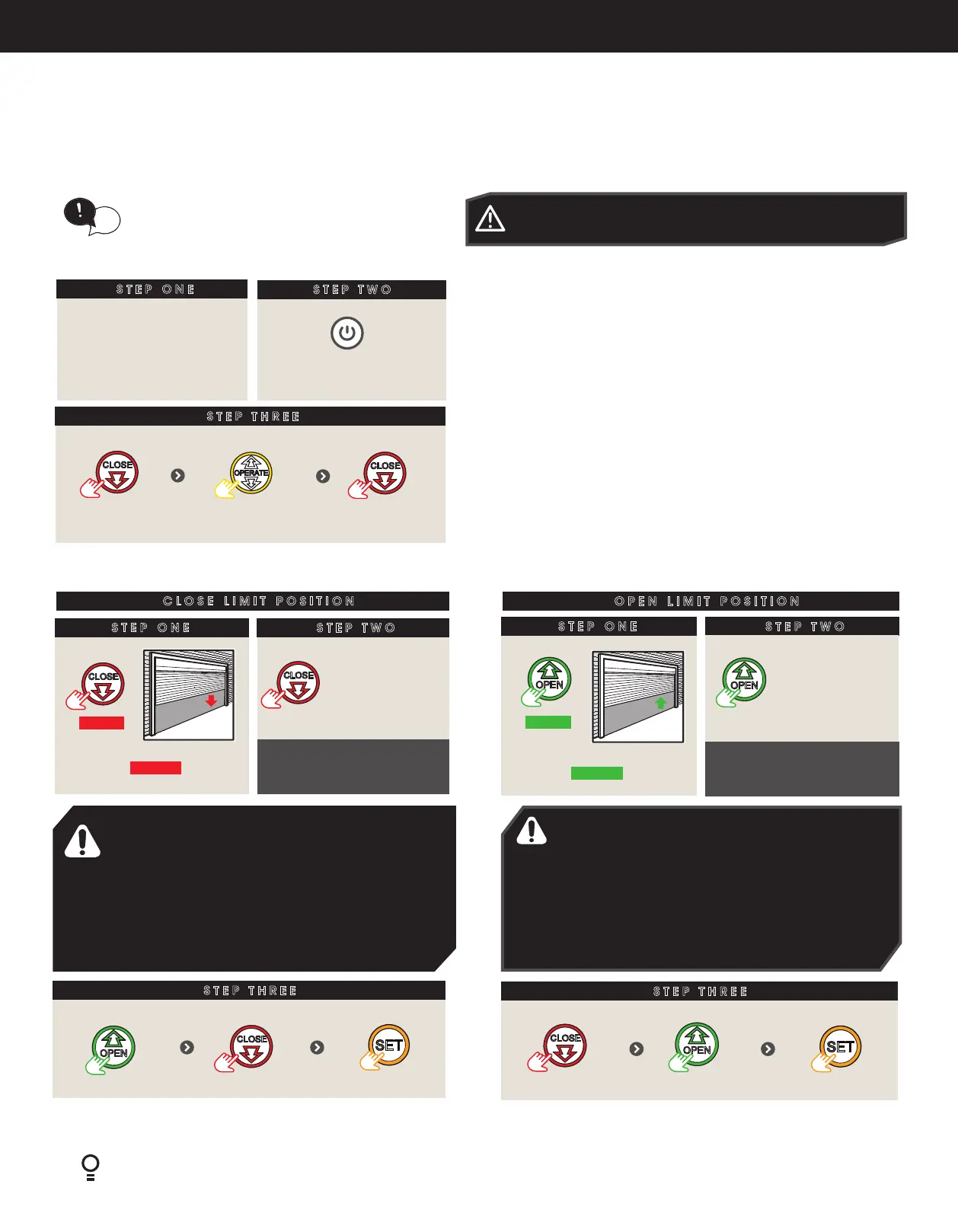

6.7.1 Initial Preparation:
STEP THREE
STEP ONE
When setting the Close limit, ensure the position
is when the door makes rst contact with the
ground. Alternatively for the Open limit the
position should be at the height of the garage
opening.
STEP TWO
Switch power on
tip
SETTING LIMITS
Remove controls cover
Press to close
If door opens
Press to change
direction
Press to move
door to midway
CAUTION: Limit setup is not available when running
on battery backup
STEP ONE
CLOSE LIMIT POSITION
STEP TWO
HOLD
Press to close door
STEP THREE
WARNING! In setting the close limit position,
do not force the door into the oor with
excessive force, as this can interfere with the
ease of operation of the manual release
mechanism.
If door overshoots
Press
Press to position Press to set
RELEASE
When door near
close, single
presses inch door
CLOSE limit should be
when rubber strip touches
the ground
STEP ONE
OPEN LIMIT POSITION
STEP TWO
HOLD
WARNING! The door will automatically close.
open and close again after the next step.
Ensure that nothing is in the door’s path.
Press to open door
RELEASE
When door near
open, single
presses inch door
OPEN limit should be the
height of the garage
opening
STEP THREE
If door overshoots
Press
Press to position Press to set
STEP ONE
CLOSE LIMIT POSITION
STEP TWO
HOLD
Press to close door
STEP THREE
WARNING! In setting the close limit position,
do not force the door into the oor with
excessive force, as this can interfere with the
ease of operation of the manual release
mechanism.
If door overshoots
Press
Press to position Press to set
RELEASE
When door near
close, single
presses inch door
CLOSE limit should be
when rubber strip touches
the ground
STEP ONE
OPEN LIMIT POSITION
STEP TWO
HOLD
WARNING! The door will automatically close.
open and close again after the next step.
Ensure that nothing is in the door’s path.
Press to open door
RELEASE
When door near
open, single
presses inch door
OPEN limit should be the
height of the garage
opening
STEP THREE
If door overshoots
Press
Press to position Press to set
6.7.2 Set the Limit Positions:
