Dominator EasyRoller Instruction Manual

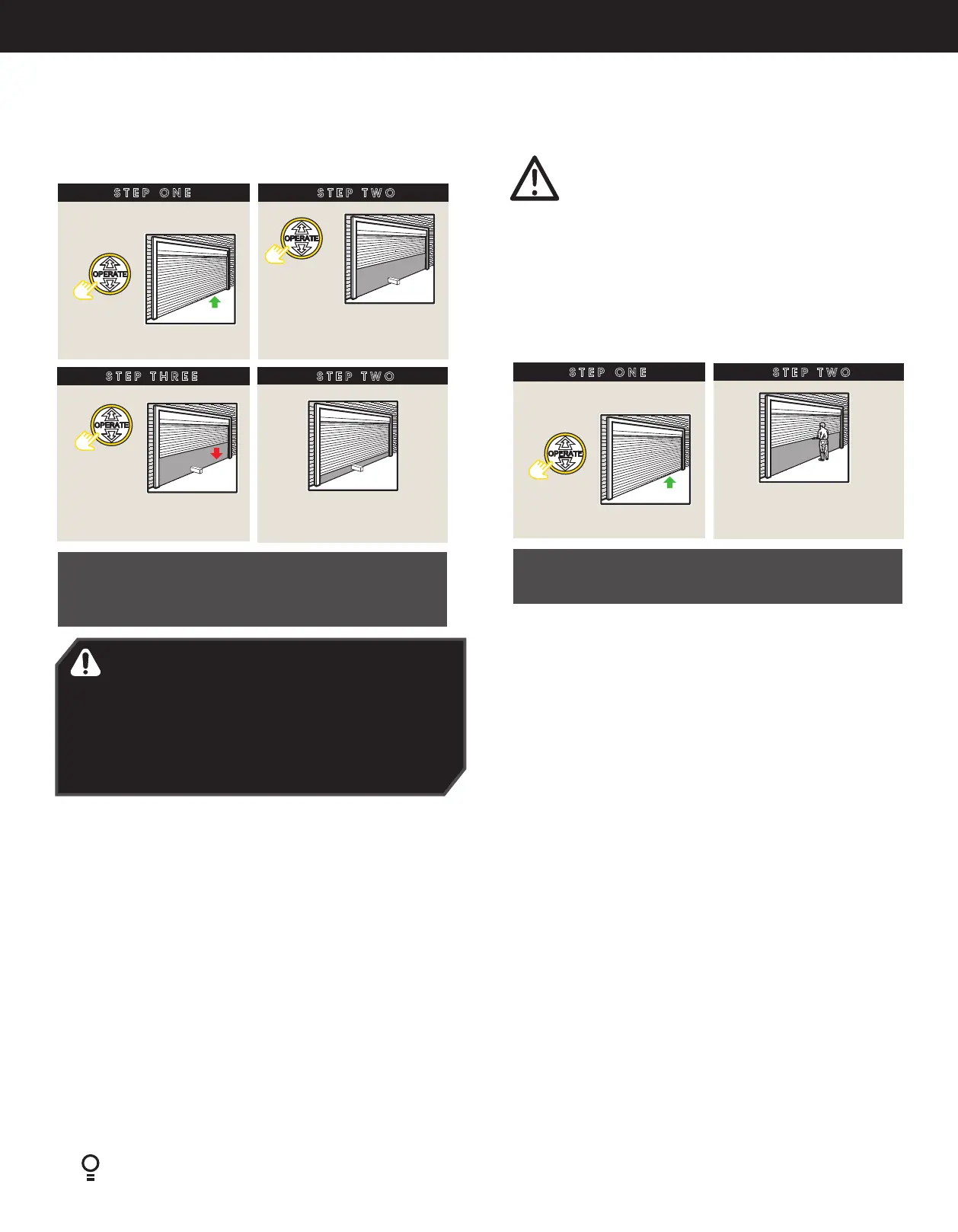

6.8 Testing & Setting Safety Obstruction Force
6.8.1 Testing the Close Cycle
STEP ONE
TESTING THE CLOSE CYCLE
STEP TWO
IF THE DOOR DOES NOT PROPERLY REVERSE:
Check that the close limit position is where the door
touches the ground. If the door STOPS but does not
reverse, decrease the force pressure.
Press to open door halfway
when the door is closed
Place a piece of 2” x 4”
timber laid at in centre
of opening
STEP THREE
STEP TWO
When door contacts
object, the door must
STOP and REVERSE!
Press to
stop
Press to
close
CAUTION: Take care when testing the safety
obstruction force. Excessive force may cause serious
personal injury and/or property damage can result
from failure to follow this warning.
ATTENTION: Testez la résistance aux obstacles avec
précaution. Une force excessive présente un risque
de blessure corporelle grave et/ou d’endommager le
matériel si vous ne respectez pas cet avertissement.
6.8.2 Testing the Open Cycle
STEP ONE
TESTING THE OPEN CYCLE
STEP TWO
IF THE DOOR DOES NOT STOP: The Force pressure
may be excessive and need adjusting. Follow steps to
decrease force pressure.
Press to open door
when the door is closed
When the door reaches
halfway, grab the bottom
rail rmly. Door should STOP!
IMPORTANT WARNING! If the door is closing and is
unable to re-open when obstructed, discontinue use. Do
not use a door with faulty obstruction sensing. Repair
fault and re-test before using.
AVERTISSEMENT IMPORTANT! Si la porte est en train
de se refermer et ne peut pas être rouverte, arrêtez de
l’utiliser. N’utilisez pas une porte dont les détecteurs
d’obstacles sont défectueux. Réparez-les et refaites un
essai.
