Dominator EasyRoller Instruction Manual
17
© Copyright 2018
Test the force again
as per Testing cycles
RELEASE
STEP ONE
STEP TWO
Remove controls
cover
TO INCREASE FORCE MARGIN
STEP THREE
HOLD
+
Each press will
increase force &
LED will ash
If LED keeps
ashing, maximum
is reached
Test the force again
as per Testing cycles
RELEASE
STEP ONE
STEP TWO
Remove controls
cover
TO DECREASE FORCE MARGIN
STEP THREE
HOLD
+
Each press will
decrease force &
LED will ash
If LED keeps
ashing, minimum
is reached
Adjusting Safety Obstruction Force
The safety obstruction force is calculated automatically and set in
memory on the operator. It is usually not necessary to adjust the safety
obstruction force. The only time the force may need to be increased is
due to environmental conditions, for example, windy or dusty areas,
and areas with extreme temperature changes.
STEP ONE
Remove controls
cover
TO RECALL FACTORY SET FORCE
+
default
will be
recalled
HOLD for 2 sec
RELEASE
STEP ONE
STEP TWO
Remove
controls cover
RE-PROFILING THE DOOR
HOLD
for 6 secs
Door will open and close
several times
Re-proling is a simple way of re-learning the travel
characteristics of a previously setup Limit Switch
travel. Re-proling is used when travel characteristic
change due to mechanical adjustments.
tip
To initiate a re-prole: LIMITS must already be set.
opener
beeps once
RELEASE
STEP THREE
opener
beeps once
Then ret
controls cover

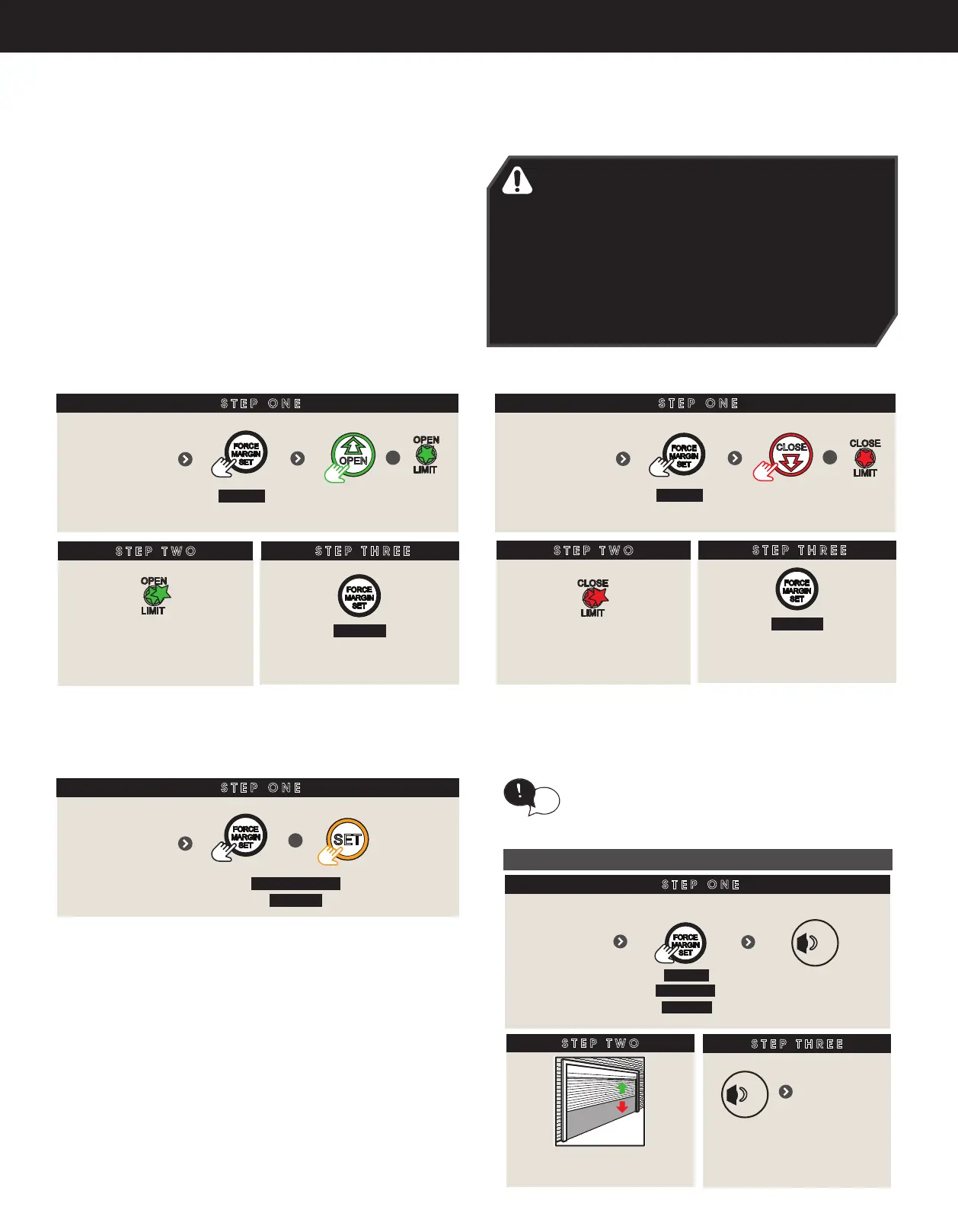

6.8 Testing & Setting Safety Obstruction Force
WARNING! Risk of entrapment. After adjusting either the
force or limits of travel, retest the door opener. The door
MUST reverses on contact with a 1-
1
/
2
-inch high object
(or a 2 by 4 board laid flat) at the center of doorway on
the floor.
AVERTISSEMENT! Risque de pincement. Après avoir réglé
la force ou les fins de course, refaites un essai du système
d’ouverture de porte. La porte doit OBLIGATOIREMENT
inverser sa course en cas de contact avec un objet de 25 à
40 mm (1-1/2’’) (ou une planche de 5 x 10 cm posée à plat)
au milieu du passage.
6.8.3 To Increase Force Pressure 6.8.4 To Decrease Force Pressure
6.8.5 To Recall Factory Set Force 6.8.6 To Re-Profile the Door
