13. Control Board & Accessories
Control Board Layout
To access the control board:
a. Remove the back cover by unscrewing the two (2) screws.

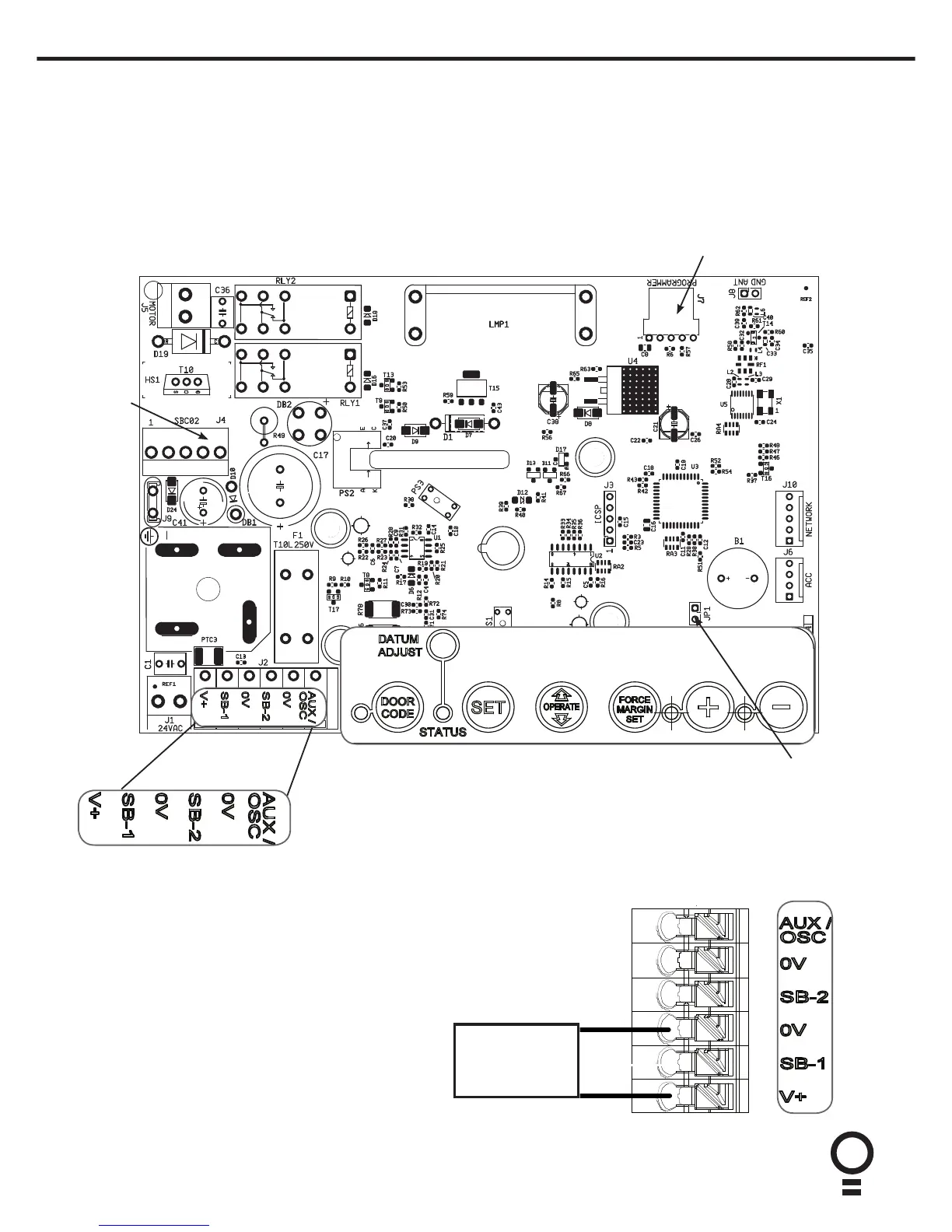

b. Refer to below diagram.
Terminal
Block
Network
Programmer
Solar
Shunt
Solar /
Battery
Backup
Auxiliary Output
The auxiliary output can be used to control
alarm or another garage door opener. A valid
transmission from the pre-coded transmitter
will cause the auxiliary output to pulse for
approximately 1 (one) second. The maximum DC
voltage must not exceed 35 volts DC. Maximum
current must not exceed 80 ma.
External device,
Alarm, Door or
Gate opener.
