Chapter 2: Installation and Wiring
GS1 Series AC Drive User Manual
2–12

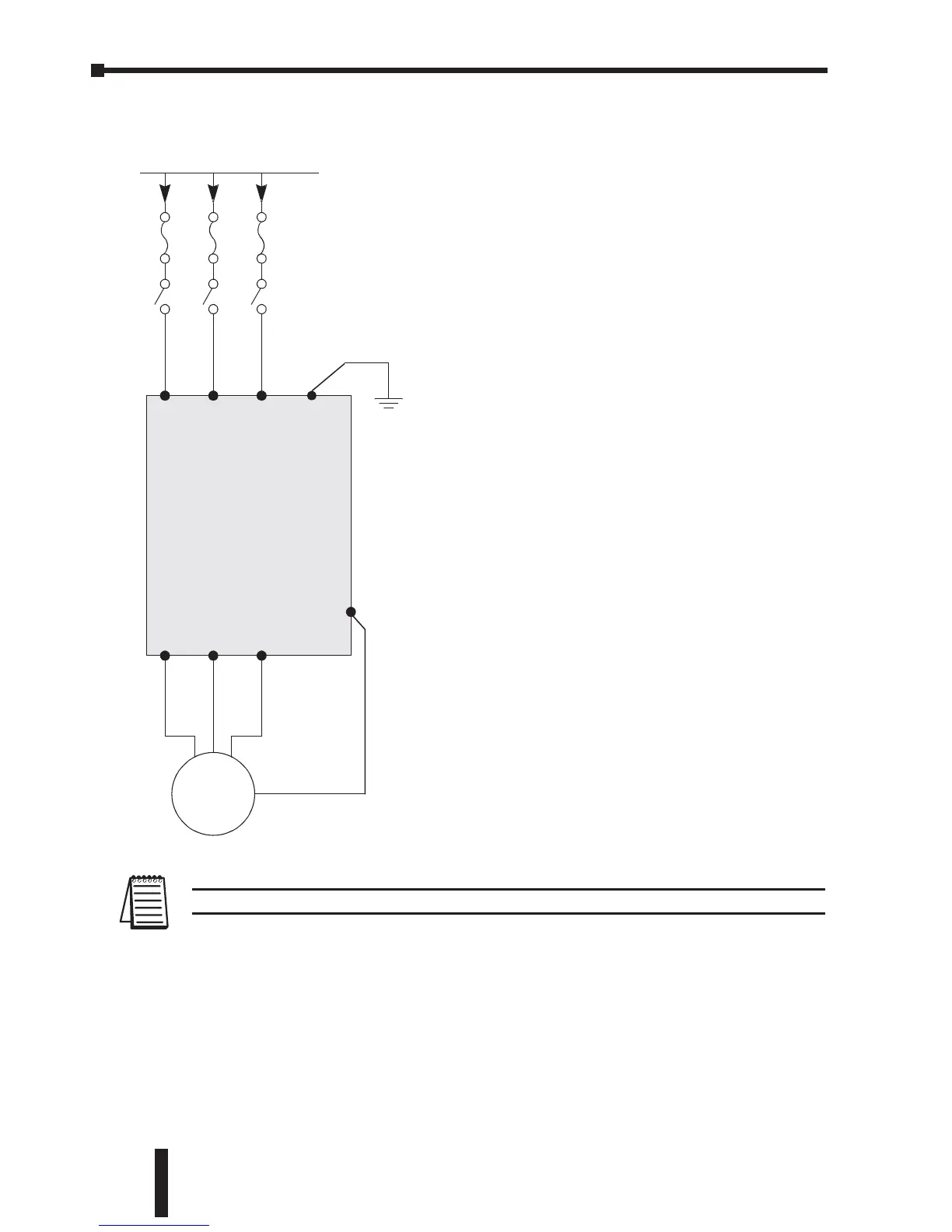

External Wiring
Note: Please refer to APPENDIX A for specifications on GS1 AC Drive Accessories.
Motor
L1
L3
L2
T1
T3
T2
GN
D
Disconnect
switch
From power supply
GS1 -xxxx
AC Drive
GND
Power Supply
Please follow the specific power supply
requirements shown in C
HAPTER 1.
Fuse
Input fuses protect the AC drive from excessive
input current due to line surges, short circuits,
and ground faults. They are recommended for all
installations and may be required for UL-listed
installations.
