GS1 Series AC Drive User Manual

4–13

Chapter 4: AC Drive Parameters

Decel S-Curve Mem Addr 0104H(40261)

Range: 0 to 07 Default Setting: 0

This parameter is used whenever the motor and load need to be decelerated more

smoothly. The Decel S-Curve may be set from 0 to 7 to select the desired

deceleration S-Curve.

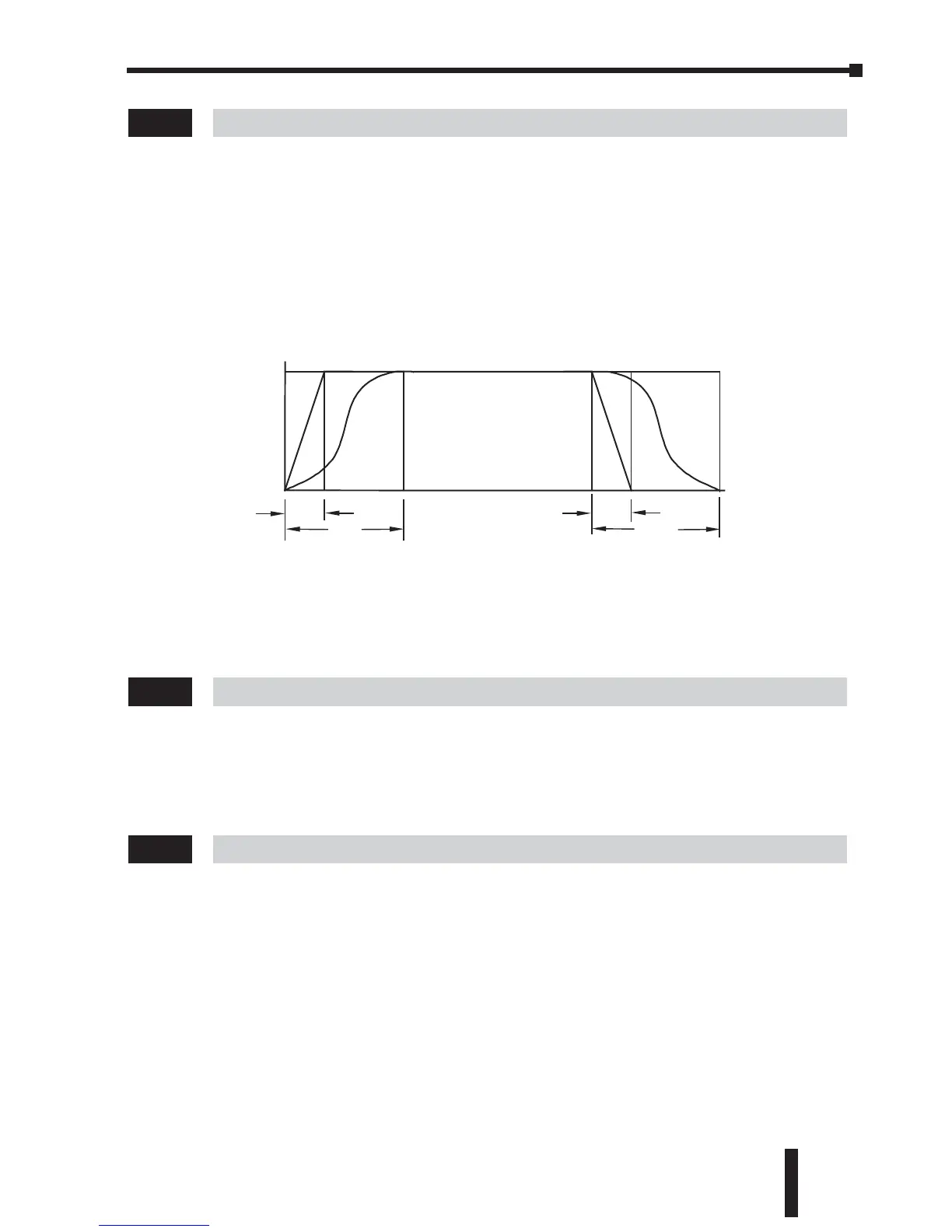

Note: From the diagram shown below, the original setting accel/decel time will be

for reference when the function of the S-curve is enabled. The actual accel/decel

time will be determined based on the S-curve selected (1 to 7).



Acceleration Time 2 Mem Addr 0105H(40262)

Range: 0.1 to 600.0 sec Default Setting: 10.0

•The Second Acceleration Time determines the time for the AC drive to accelerate

from 0 RPM to Maximum Motor RPM (0-04). Acceleration Time 2 (1-05) can be

selected using a multi-function input terminal or frequency transition (1-07).



Deceleration Time 2 Mem Addr 0106H(40263)

Range: 0.1 to 600.0 sec Default Setting: 30 sec

•The Second Deceleration Time determines the time for the AC drive to decelerate

from Maximum Motor RPM (0-04) to 0 RPM. Deceleration Time 2 (1-06) can be

selected using a multi-function input terminal or frequency transition (1-07).

1-06

1-05

1-04

Time

Disabling S curve is disabled in (1), (2)

1-03 sets S curve for (3)

1-04 sets S curve for (4)

(4)

(3)

(4)

(3)

(2)

(1)

(2)(1)

1-03

1-04

Frequency
