Autonics TM4-N2SB User Manual

6 Parameter Settings and Functions
© Copyright Reserved Autonics Co., Ltd. 51

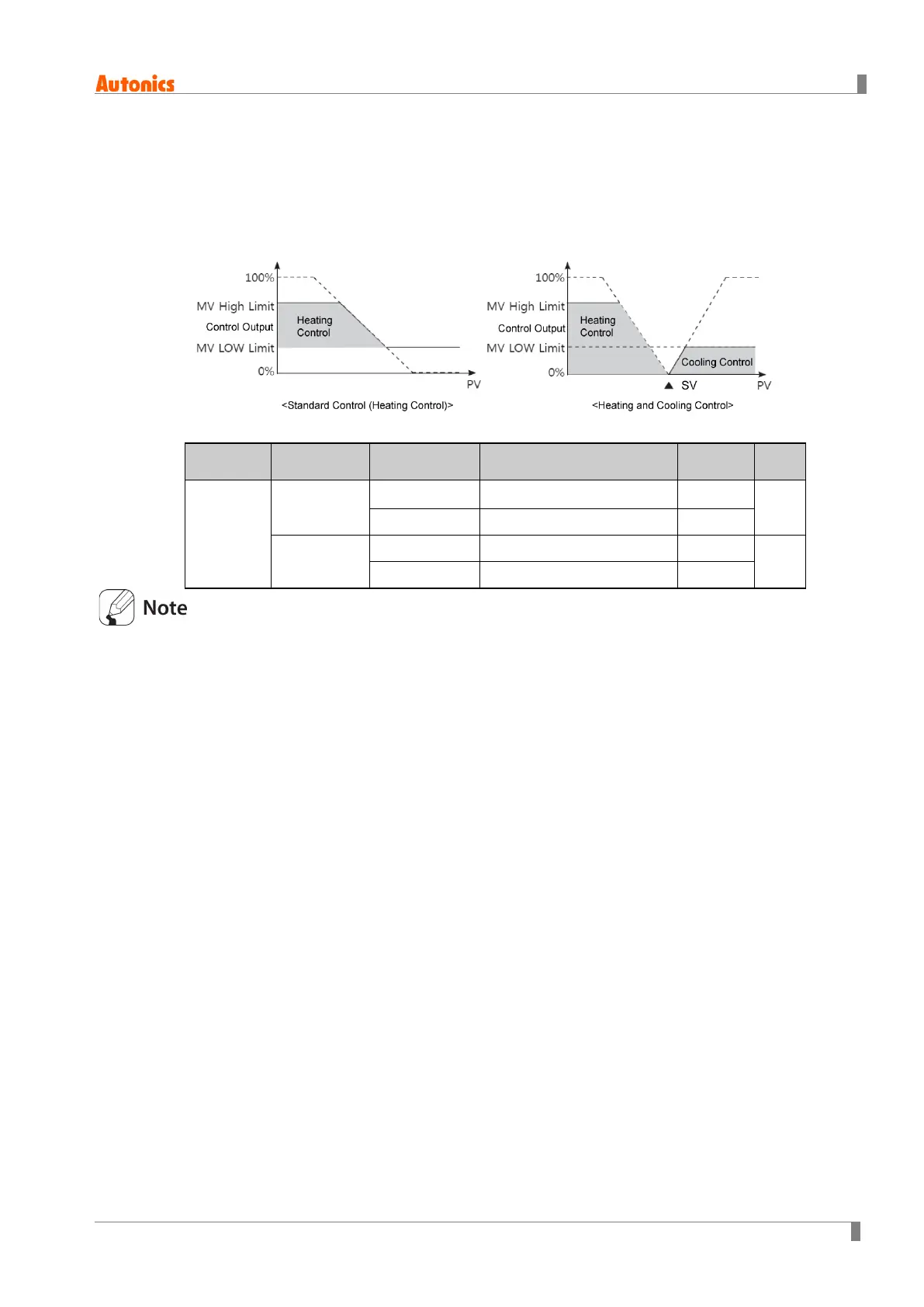

6.2.3 MV high/low-limit value
MV high/low-limit values for control output can be configured to the actual MV, provided the
temperature controller's MV calculation exceeds the limits.
During heating and cooling control, cooling MV carries a "-" prefix. Therefore, the high-limit is
expressed as a + value on the heating side and the lower limit as a - value on the cooling side.
Setting
group
Preceding
condition
Parameter Setting range
Factory
default
Unit
Control
Operation
Heating
Cooling
MV Low-limit 0.0 to MV high-limit - 0.1 0.0
%
MV High-limit MV low-limit + 0.1 to 100.0 100.0
Heating and
Cooling
MV Low-limit -100.0 to 0.0 -100.0
%
MV High-limit 0.0 to 100.0 100.0
 Same MV high/low-limit value will be applied during Auto-tuning.
 MV high/low-limit values are not applied to manual control, MV upon control stop, MV upon
a sensor error, and initial manual control MV.
 MV high/low-limit value configuration is not available for ON/OFF control in standard control
mode (heating or cooling control).
