4 Connections and Insulation Block Diagram
© Copyright Reserved Autonics Co., Ltd. 31
4 Connections and Insulation Block Diagram

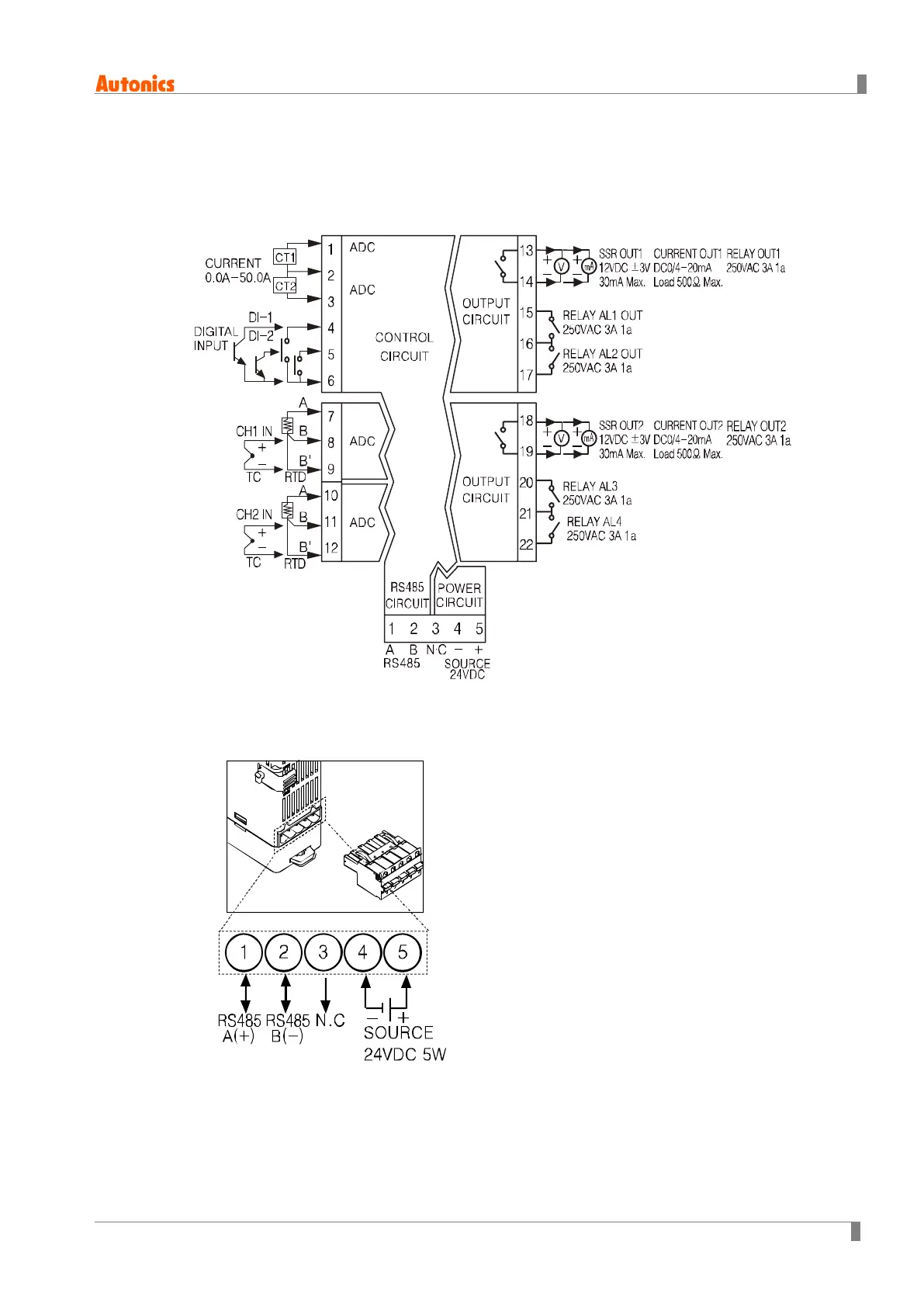

4.1 TM2 Series
※ Relay AL3/AL4 OUT are available only for TM2-42□□ models.
Power/Comm. connection terminal [Only for basic module: TM□-□□□B]
