- SMTF01- Cable for HONDA PCX/SH125/150/MODE
- SMTF08- KEY ADAPTER.
- SCU (smart key control unit), the new FOB.

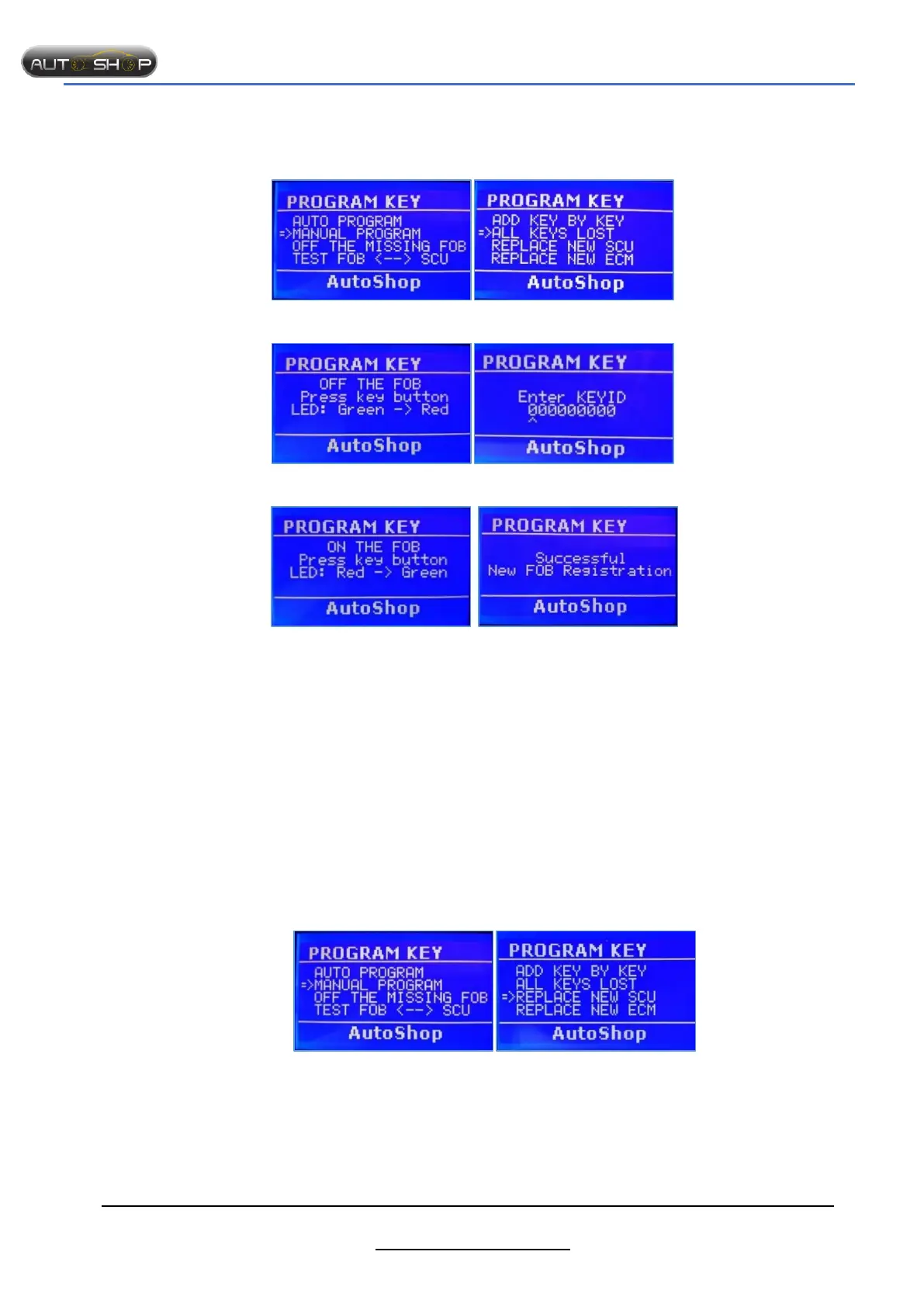

The steps taken on the Smart Tool.
Step 1: Select “MANUAL PROGRAM” Step 2: Select “ALL KEYS LOST”
Step 3: Enter KEYID Step 4: Turn OFF FOB
Step 5: Turn on FOB Successfully!!!
Notes:
- Turn OFF the unused FOBs.
- KEYID which is registered inside SCU.
- Read KEYID and ECMID: Select “AUTO PROGRAM””READ KEYID”.
- Take 2-3 mins from step 4 to step 5.
1.1.4 Replace SCU (smart key control unit)
Purpose:
- To sync between ECM and SCU.
- Replace new SCU when old SCU is broken.
Preparation:
- SMTF00- SMART TOOL
- SMTF01- Cable for HONDA PCX/SH125/150/MODE
- SMTF08- KEY ADAPTER
- SCU and FOB synced each other, ECMID code.
The steps taken on the Smart Tool
Step 1: Select “MANUAL PROGRAM” Step2:Select“REPLACE NEW SCU”
