Autoshop Smarttool - Report SD Card Error; Show EEPROM Error; Can’t Solder Cable

SMARTTOOL – BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
39
http://autoshopvn.com
- Reason: Cause ODO has data error, false connecting plug, Adapter circuit error.
- Repair: Modify new value of ODO, restore data, check ODO Adapter again.

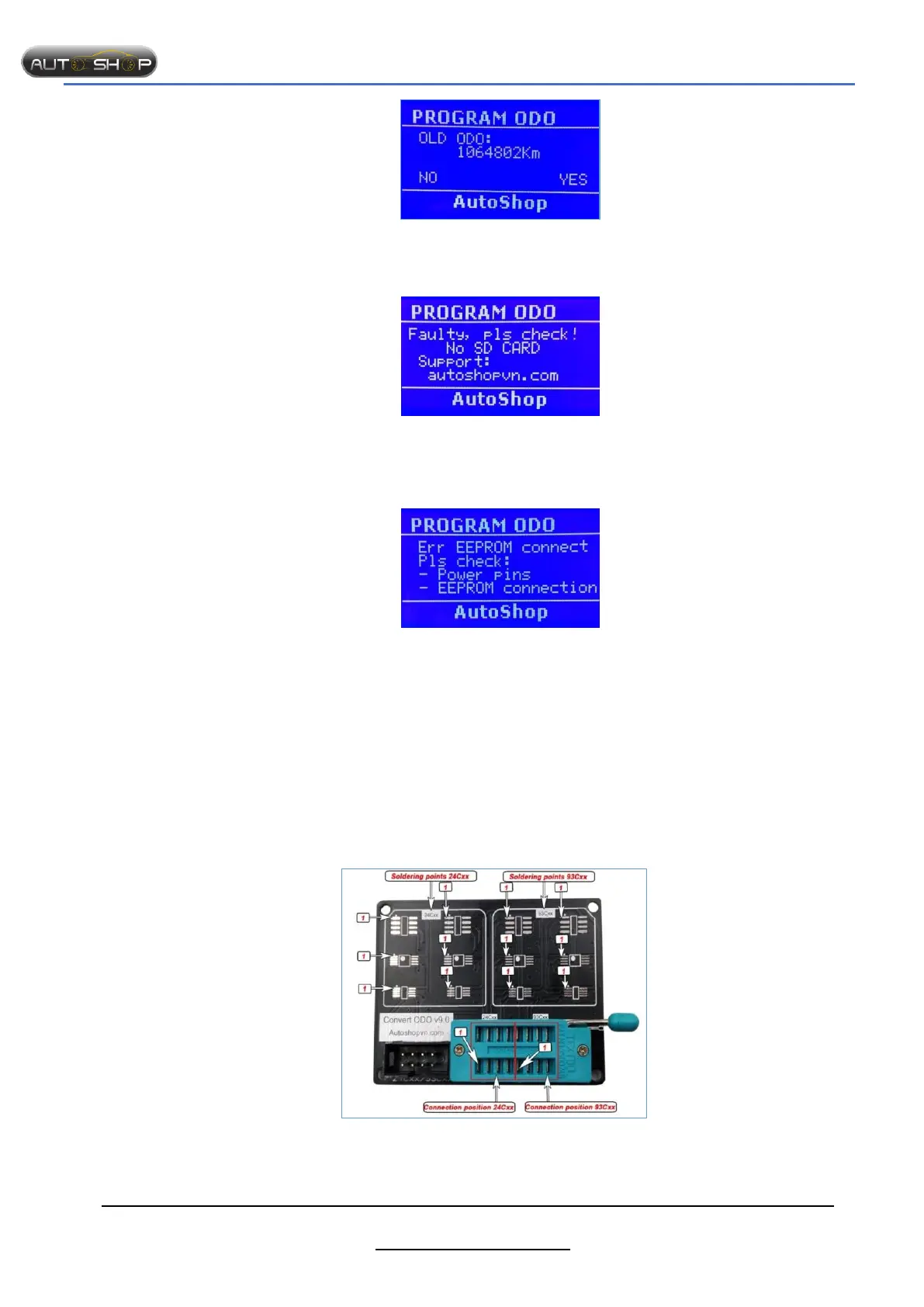

Report SD Card error.
- Reason: SD card isn’t plugged; contact is not good or null.
- Repair: Check plug, update SD card.
Show EEPROM error.
- Reason: Incorrect solder connection, EEPROM plug, bike version.
- Repair: Check connection diagram again, bike version, processor type.
Can’t solder cable.
- Reason: Solder repeatedly cause Slip bronze state.
- Repair: Use convert ODO circuit (only support for 93Cxx and 24Cxx processor)
Steps taken:
- Step 1: Remove chip out of the ODO
- Step 2: Solder chip with Convert ODO v9.0 circuit.
According to size of chips, we Select the reasonable position to solder
How to identify chip pin:
