10.5 Show Status - Faults
This menu gives detailed information on the current status of faults in
the system. It provides the following information:
• the location
• an identification of the address
• the nature of the fault
• a detailed text
The example below describes how to view the current status of faults.

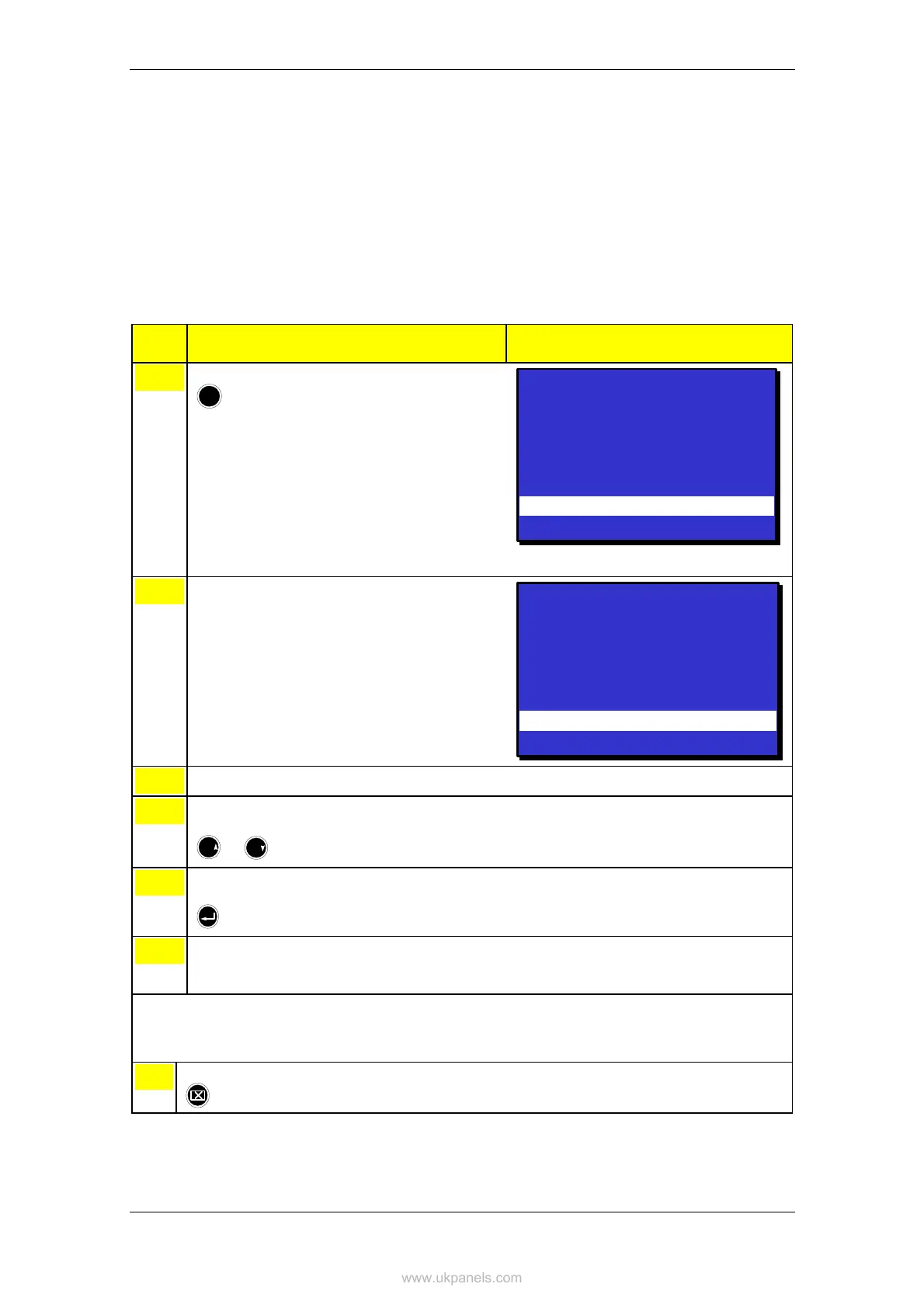

Step Actions to be taken Display Indication
1
To enter the Main Menu, press
!
MENU
19:23
Total: 3
1 SHOW STATUS
2 DISABLE
3 ENABLE
4 SYSTEM
5 SERVICE
2
To select SHOW STATUS, press 1.
SHOW STATUS
1 FIRE ALARMS
2 FIRE WARNINGS
3 FAULTS
4 DISABLEMENTS
5 DETECTION ZONES IN TEST
6 OIL&GAS INHIBITED POINTS
7 ACTIVATED OUTPUTS
19:23
3
To select FAULTS, press 3.
4
To move the cursor to the desired selection,
scroll with the arrow buttons
6
PQR
or
9
YZ
5
To view detailed zonal information for the
selected detection zone, press
6
To view point(s) in fault state for the selected
detection zone, press Action Digit 1 (SHOW
POINTS).
Comments:
Step 5 and 6 apply to Fault Warnings related to
Detection Zone / Points. The operator must in
this case always go via Detection Zone in order
to accept the fault warning (point).
7
To return (each step backwards), press
