Disabling/restoring
Operators Handbook, Fire Alarm Control panel BX-10, P-BX10/FE - Rev.F, 030123, Autronica Fire and Security AS
Page 18
s
ALARM
Test
Fault
Disabled
Power
Zone 1
Zone 2
Zone 3
Zone 4
Alarms
Contr.
Al -outp.
Fault/Disabled/Test
Battery
Power
Earth
Fault
Zone 1
Zone 2
Zone 3
Zone 4
Fault outp.
.
Operator
Imm. alarm
InformationAlarm
System Zone
Operator
1:
2:
3:
4:
Access code: xxx
Silence int. buzzer
Silence/res. alarms
Reset
Autronica Fire & Security
System
0
C
987
6
5
4
3
21
BX-10
R
R
Alarm call activated

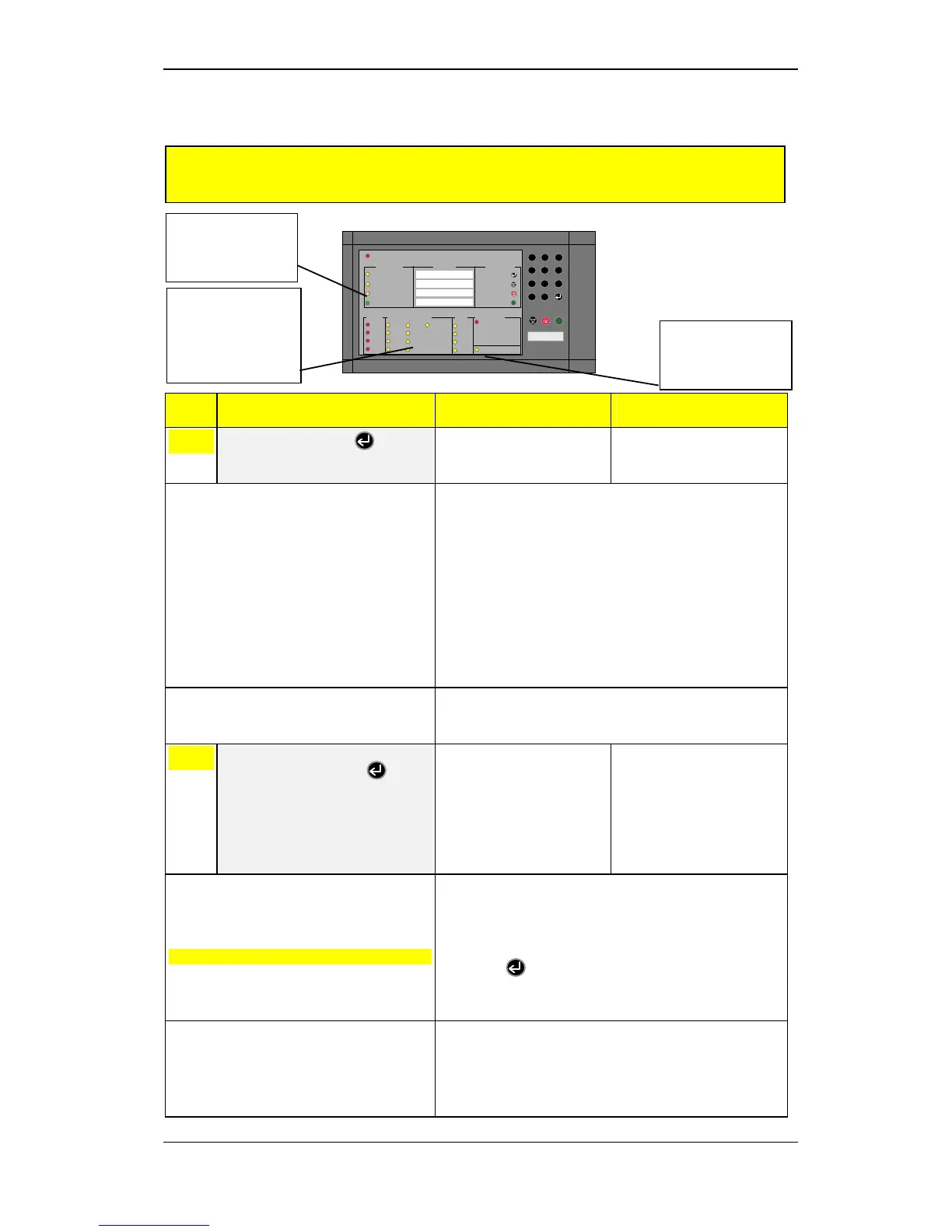

7.2 Disabling/restoring from the front panel
Step Necessary Action Visual Warning Status Audio Warning Status
1
Key operator code +
The yellow OPERATOR
LEVEL indicator will come
on.
Note: In operator mode, the keys numbered 1-8 represent the
following disabling operations:
Key 1: disabling of zone 1
Key 2: disabling of zone 2
Key 3: disabling of zone 3
Key 4: disabling of zone 4
Key 5: disabling of alarm outputs (AK1, AK2)
Key 6: disabling of control outputs
(zone outputs 1-4, AUX 1 and 2, fire doors)
Key 7: disabling of alarm outputs (BMA) FARE
Key 8: disabling of fault output (BMF) FWRE
Key 9: disabling of immediate warning (delayed alarm)
Note: With delayed alarm (D/N mode), the yellow common
DISABLING indicator and yellow DISABLING IMMEDIATE
WARNING indicator will come on.
2
Press the
respective key (1-8) +
The yellow common
DISABLING indicator will
come on.
One (or more) of the yellow
indicators in the
FAULT/DISABLING/TEST
field will come on indicating
the type of disabling.
Note:
Restoring functions:
The yellow common DISABLING indicator and indicator for
the respective function will go out as soon as the function is
cancelled, i.e. when the function is manually restored.
Functions are restored manually by implementing the same
procedure for the function concerned. E.g. zone 1 is restored by
keying 1 + .
In this example the yellow LED indicator for ZONE 1 will go
out.
Automatic safety restoring
All disabling, except disabling of immediate warning, will be
automatically restored after a 24-hour time lapse. Disabling of
immediate warning will be restored after 12 hours.
* Agricultural version is automatically restored after 4 hours
(special requirement).
The common yellow
DISABLING indicator
will come on.
One (or more) of the
yellow indicators in the
FAULT/DISABLING/T
EST field will come on
indicating the type of
disabling.
The operator can disable one or more zones (detector loops 1-4), alarm outputs, control outputs,
and/or general alarm and error outputs.
Restoration is implemented manually following the same procedure.
The yellow
OPERATOR LEVEL
indicator will come on.
