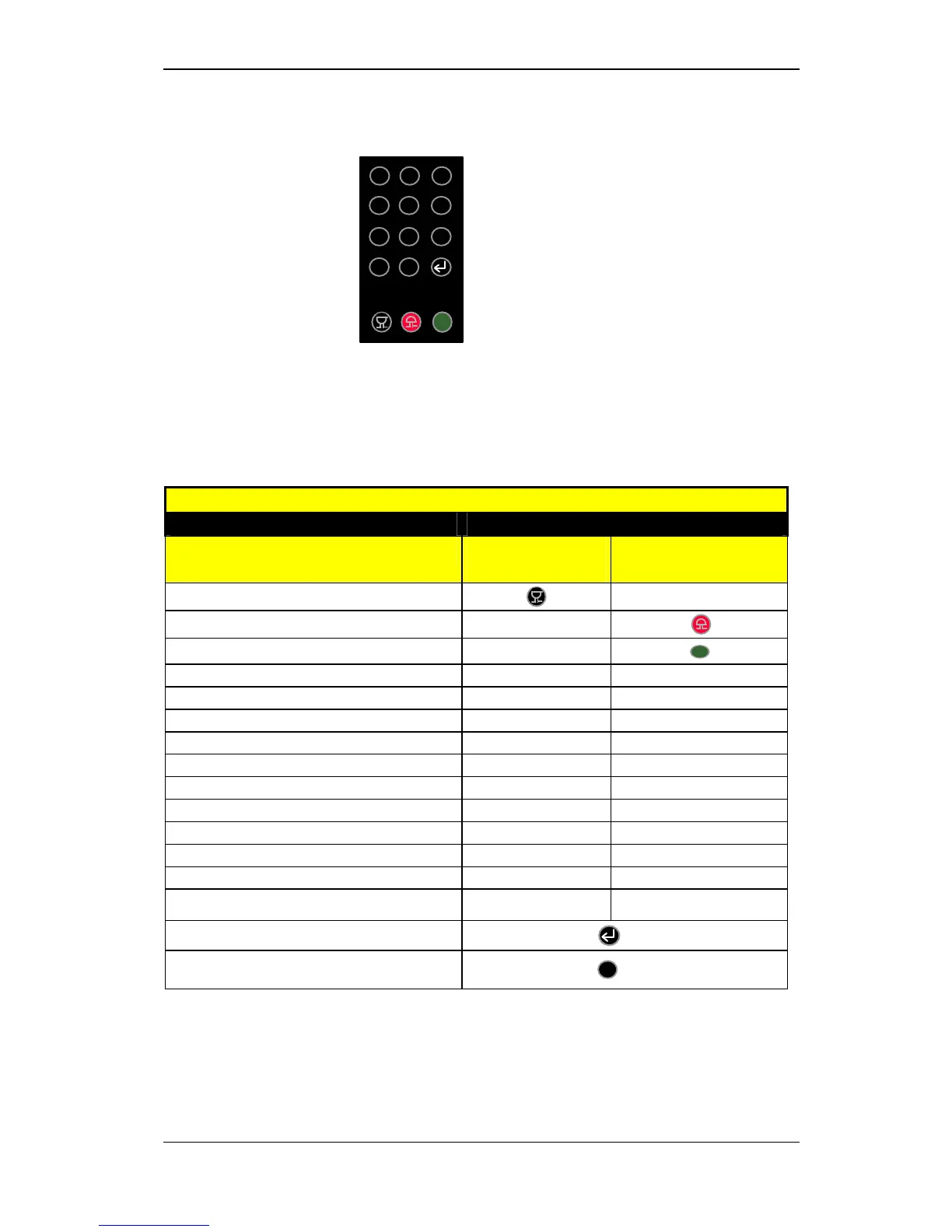

2.3 Keypad
The keypad comprises 15 keys and is back-lit when
the control panel records an event, or when one of
the keys is pressed.
The back-lighting will switch off automatically
about 5 minutes after the last keystroke is made.
Any fault in the keypad connection (e.g. a sticking
key) will cause the internal audio warning device
to emit a rapid intermittent sound.
2.4 Keypad functions
2.4.1 Summary of the keypad configurations
Keypad functions
Function
Keypad configuration
In normal status:
(no code required)
In operator mode:
Operator code +
Cancel internal audio warning device
Cancel/activate alarm
Reset
R
Disabling zone 1 1 +
Disabling zone 2 2 +
Disabling zone 3 3 +
Disabling zone 4 4 +
Disabling alarm circuits (AK1 and AK2) FAD's 5 +
Disabling control outputs 6 +
Disabling alarm output (BMA) FARE 7 +
Disabling fault output (BMF) FWRE 8 +
Disabling immediate alarm (D/N function) * 9 +
Disabling of intruder alarm (not implemented) 10 +
Lamp test / audio warning device test 30 +
ENTER (accept)
Resetting the keypad
C
* Maritime version has a 2 minutes delay.
0
C
98
7
6
5
4
3
2
1
R
(always accessible
)
(always accessible
)
