Fire alarm with delayed warning
Operators Handbook, Fire Alarm Control panel BX-10, P-BX10/FE - Rev.F, 030123, Autronica Fire and Security AS
Page 13
s
ALARM
Test
Fault
Disabled
Power
Zone 1
Zone 2
Zone 3
Zone 4
Alarms
Contr.
Al -outp.
Fault/Disabled/Test
Battery
Power
Earth
Fault
Zone 1
Zone 2
Zone 3
Zone 4
Fault outp.
.
Operator
Imm. alarm
InformationAlarm
System Zone
Operator
1:
2:
3:
4:
Access code: xxx
Silence int. buzzer
Silence/res. alarms
Reset
Autronica Fire & Security
System
0
C
987
6
5
4
3
21
BX-10
R
R
Alarm call activated

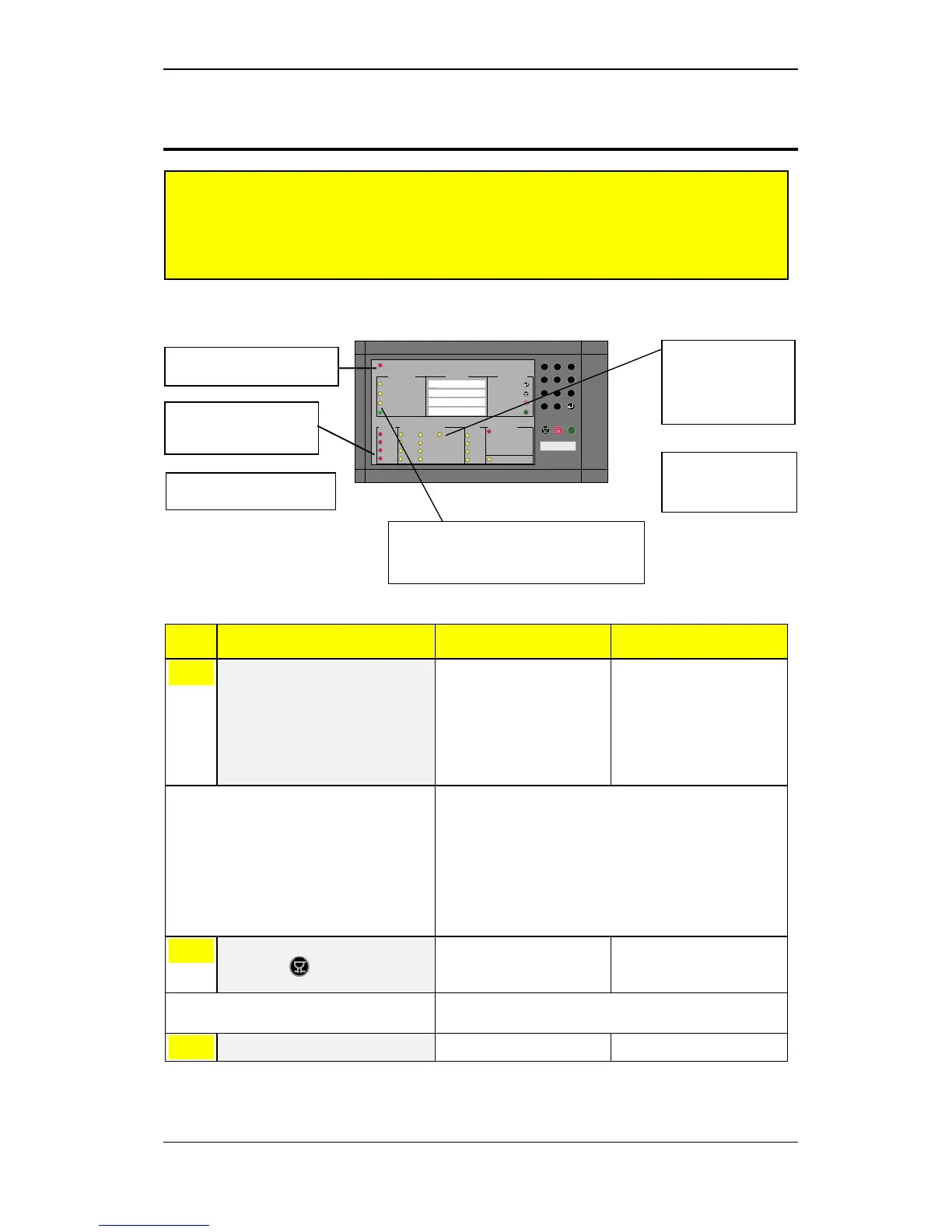

5. Fire alarm with delayed warning
Step Necessary Action Visual Warning Status Audio Warning Status
1
Follow local fire instructions
step by step.
The red FIRE indicator
flashes.
One of the red zone indicators
at the bottom-left will flash to
indicate in which detection
zone the fire is detected (zone
1, 2, 3 or 4).
The integrated audio warning
device is activated.
Note: Five-minute alarm delay starts (two minute alarm delay applies
to maritime version).
Immediate alarms are disabled during the delay period.
The yellow DISABLING indicator comes on, together with the
yellow IMMEDIATE WARNING DISABLED indicator.
If an alarm is given from two or more detectors or detection
zones simultaneously, the alarm outputs will be activated
immediately, i.e. the alarm delay will be interrupted.
2
Silence internal buzzer by
pressing
The red FIRE indicator and
zone indicator will continue to
flash.
The internal buzzer is
switched off.
Note: The yellow DISABLING indicator and IMMEDIATE
WARNING DISABLED indicator will remain on.
3
Investigate the fire.
(Continued on next page…..)
One or more detectors/manual call-points send an alarm signal from a detection zone in a
situation where alarm delay is activated (immediate warning disabled, see Chap. 8).
NOTE: If an alarm is activated from two or more detection zones simultaneously, the alarm
outputs and alarm transference will be activated immediately, i.e. the alarm delay will be
cancelled. The same activation will appear if a manual call point is operated in a zone.
The red FIRE indicator flashes.
Red flashing zone lights
indicate which detector
zone(s) are involved.
The integrated audio
warning device is
activated.
The yellow DISABLING indicator comes on
when immediately warning is disabled.
*This does not applies on the maritime version
(Appendix 10.2).
Audio/visual characteristics:
0.5 sec. ON – 0.5 sec. OFF
The yellow LED
indicator for
IMMEDIATE
WARNING
DISABLED comes on.
To Next Page
