AVANT 528+ - Filters and Greasing Points; FILTERS; GREASING POINTS

Filters, greasing points
24
500 Series
FILTERS

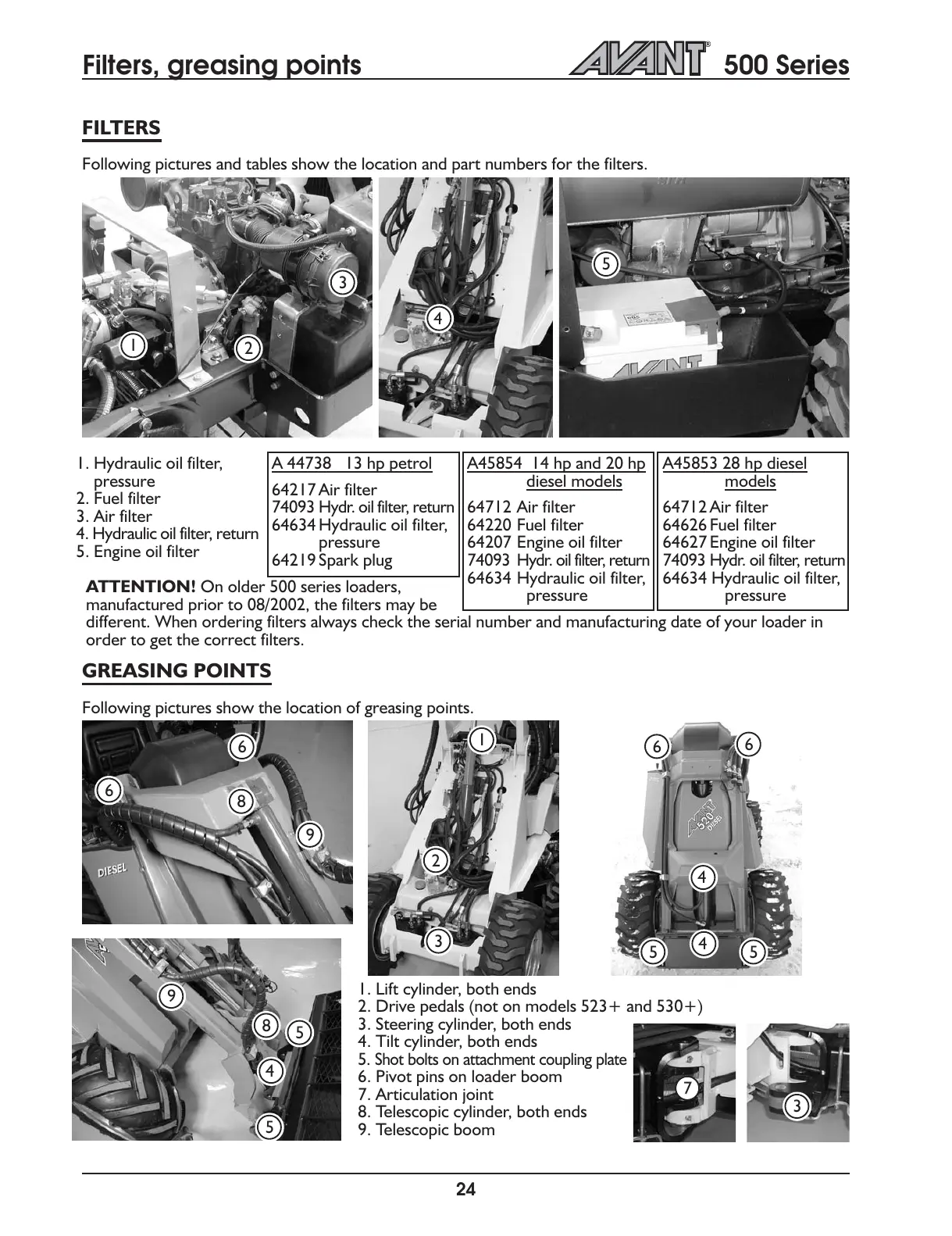

Following pictures and tables show the location and part numbers for the filters.
2
4
3
5
GREASING POINTS
Following pictures show the location of greasing points.
1
1. Lift cylinder, both ends
2. Drive pedals (not on models 523+ and 530+)
3. Steering cylinder, both ends
4. Tilt cylinder, both ends
5. Shot bolts on attachment coupling plate
6. Pivot pins on loader boom
7. Articulation joint
8. Telescopic cylinder, both ends
9. Telescopic boom
3
7
4
55
6
6
4
2
1
6
6
4
5
5
3
9
8
8
9
1. Hydraulic oil filter,
pressure
2. Fuel filter
3. Air filter
4. Hydraulic oil filter, return
5. Engine oil filter
A 44738 13 hp petrol
64217 Air filter
74093
Hydr. oil filter, return
64634 Hydraulic oil filter,
pressure
64219 Spark plug
A45854 14 hp and 20 hp
diesel models
64712 Air filter
64220 Fuel filter
64207 Engine oil filter
74093
Hydr. oil filter, return
64634 Hydraulic oil filter,
pressure
A45853 28 hp diesel
models
64712 Air filter
64626 Fuel filter
64627 Engine oil filter
74093
Hydr. oil filter, return
64634 Hydraulic oil filter,
pressure
ATTENTION! On older 500 series loaders,
manufactured prior to 08/2002, the filters may be
different. When ordering filters always check the serial number and manufacturing date of your loader in
order to get the correct filters.
