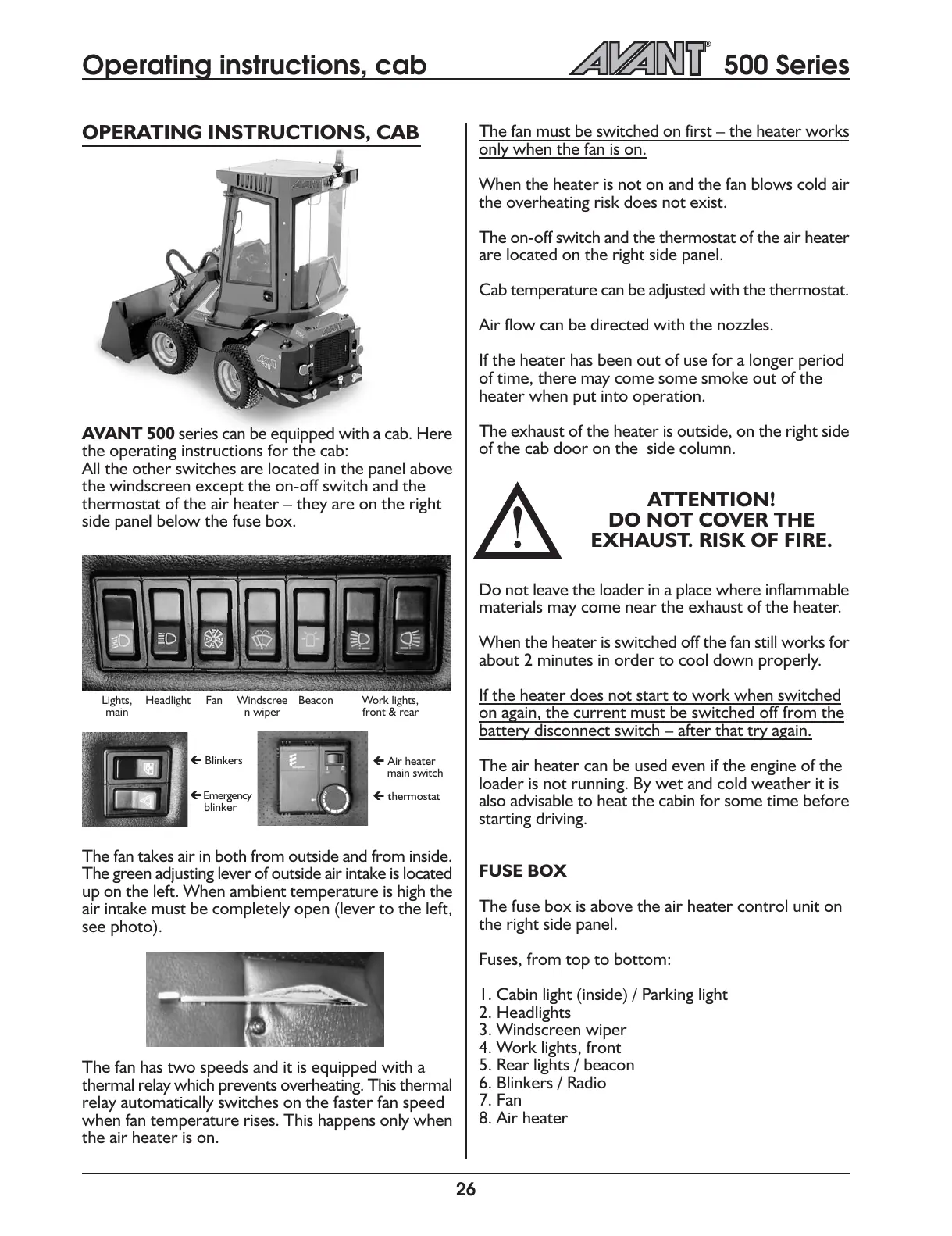

Operating instructions, cab
26
ç Air heater
main switch
ç thermostat
500 Series
Lights,
main
Headlight Fan Windscree
n wiper
Beacon Work lights,
front & rear
ç Blinkers
ç Emergency
blinker
ATTENTION!
DO NOT COVER THE
EXHAUST. RISK OF FIRE.
OPERATING INSTRUCTIONS, CAB
AVANT 500 series can be equipped with a cab. Here
the operating instructions for the cab:
All the other switches are located in the panel above
the windscreen except the on-off switch and the
thermostat of the air heater they are on the right
side panel below the fuse box.
The fan takes air in both from outside and from inside.
The green adjusting lever of outside air intake is located
up on the left. When ambient temperature is high the
air intake must be completely open (lever to the left,
see photo).
The fan has two speeds and it is equipped with a
thermal relay which prevents overheating. This thermal
relay automatically switches on the faster fan speed
when fan temperature rises. This happens only when
the air heater is on.
The fan must be switched on first the heater works
only when the fan is on.
When the heater is not on and the fan blows cold air
the overheating risk does not exist.
The on-off switch and the thermostat of the air heater
are located on the right side panel.
Cab temperature can be adjusted with the thermostat.
Air flow can be directed with the nozzles.
If the heater has been out of use for a longer period
of time, there may come some smoke out of the
heater when put into operation.
The exhaust of the heater is outside, on the right side
of the cab door on the side column.
Do not leave the loader in a place where inflammable
materials may come near the exhaust of the heater.
When the heater is switched off the fan still works for
about 2 minutes in order to cool down properly.
If the heater does not start to work when switched
on again, the current must be switched off from the
battery disconnect switch after that try again.
The air heater can be used even if the engine of the
loader is not running. By wet and cold weather it is
also advisable to heat the cabin for some time before
starting driving.
FUSE BOX
The fuse box is above the air heater control unit on
the right side panel.
Fuses, from top to bottom:
1. Cabin light (inside) / Parking light
2. Headlights
3. Windscreen wiper
4. Work lights, front
5. Rear lights / beacon
6. Blinkers / Radio
7. Fan
8. Air heater
