Load diagram
10
500 Series
LOAD DIAGRAM

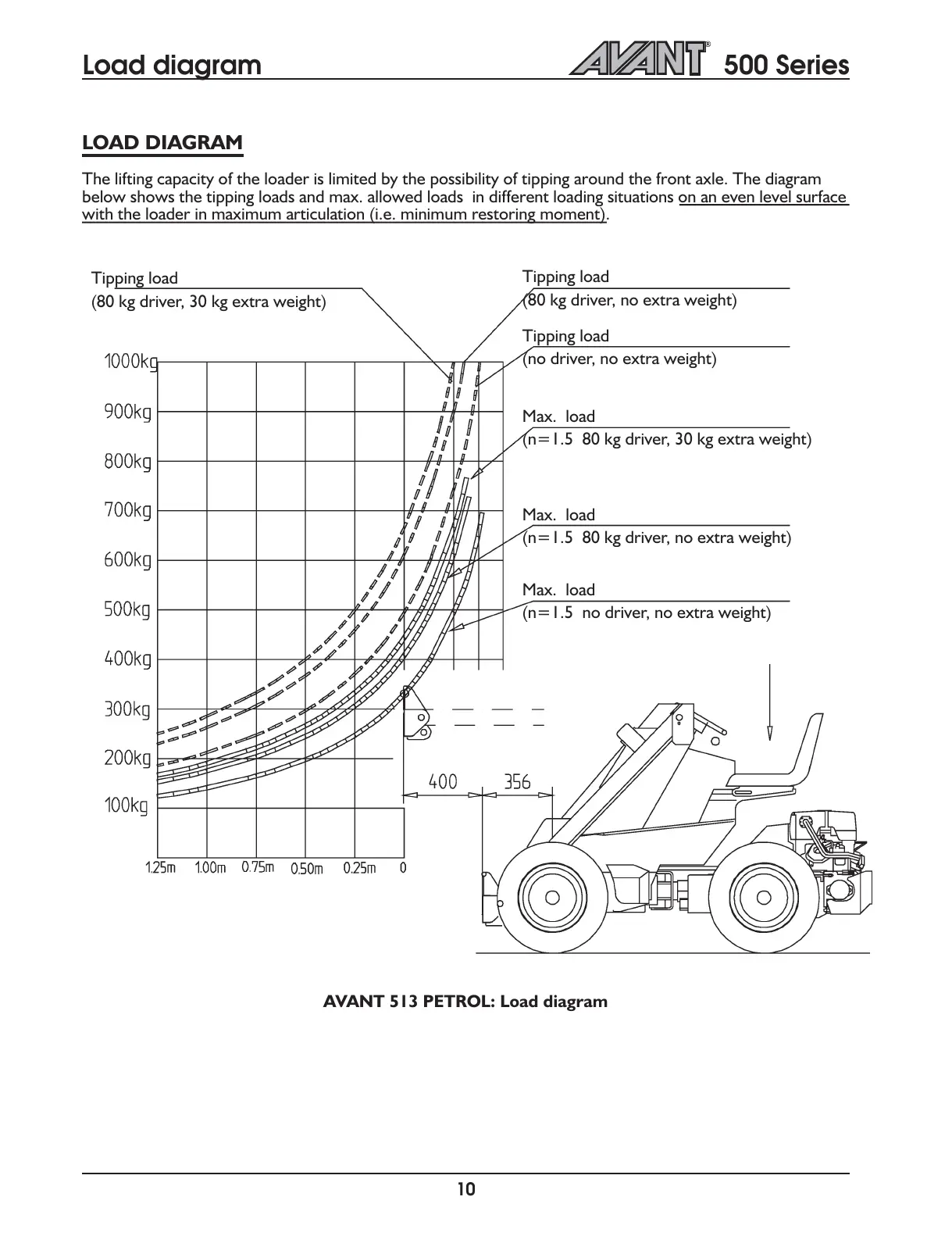

The lifting capacity of the loader is limited by the possibility of tipping around the front axle. The diagram
below shows the tipping loads and max. allowed loads in different loading situations on an even level surface
with the loader in maximum articulation (i.e. minimum restoring moment).
AVANT 513 PETROL: Load diagram
Tipping load
(80 kg driver, 30 kg extra weight)
Tipping load
(80 kg driver, no extra weight)
Tipping load
(no driver, no extra weight)
Max. load
(n=1.5 80 kg driver, 30 kg extra weight)
Max. load
(n=1.5 80 kg driver, no extra weight)
Max. load
(n=1.5 no driver, no extra weight)
