Controls and options of the Loader Avant 755i 760i
48
.

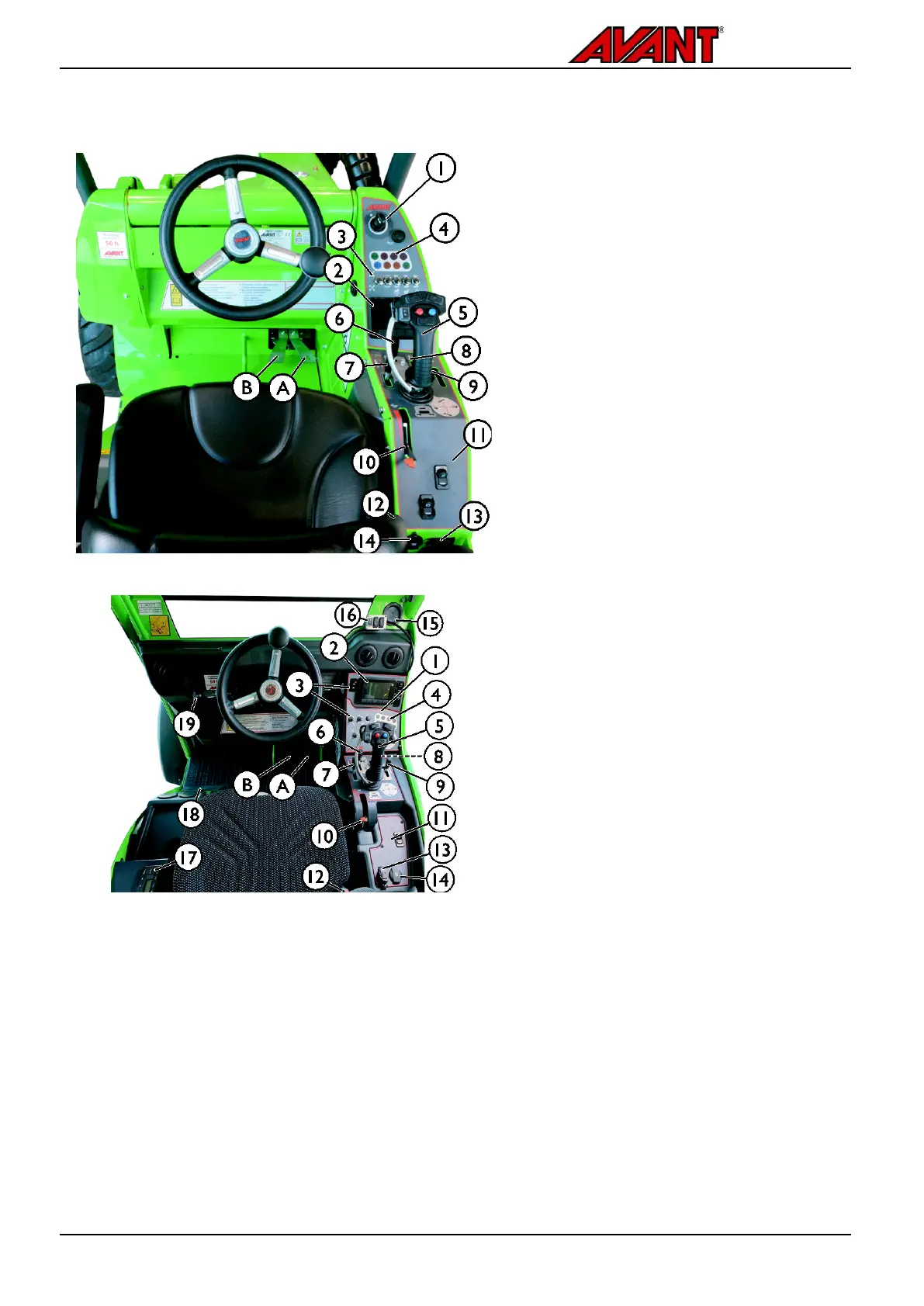

Overview of controls
Reference Page
1. Dashboard
Ignition switch
50
2. Multi-function display 51
3. Switches on the dashboard 50
4. Indicator lights 51
Control lever of boom and bucket 50
6. Auxiliary hydraulics control lever
7. Selection lever for auxiliary hydraulic
pumps
54
8. Extra auxiliary hydraulics control lever
(option)
58
9. Manual control lever for boom
telescope
55
10. Hand throttle lever 56
11. Control switches on the panel 49
12. Seat belt buckle 67
13. CAN Diagnostics port
14. 12 V outlet (max 15 A) 59
15. Routing for routing electric cables of
an attachment with electric functions
(Cab LX and DLX only)
16. Opticontrol switches for rear mounted
attachments (option)
17. Radio (option, Cab DLX only)
18. Heater temperature control (Cab LX
and DLX only)
Controls in footwell
A Drive pedal, right: drive forward 80
B Drive pedal, left: drive backward 80
