Avant 755i 760i Working with attachments
91

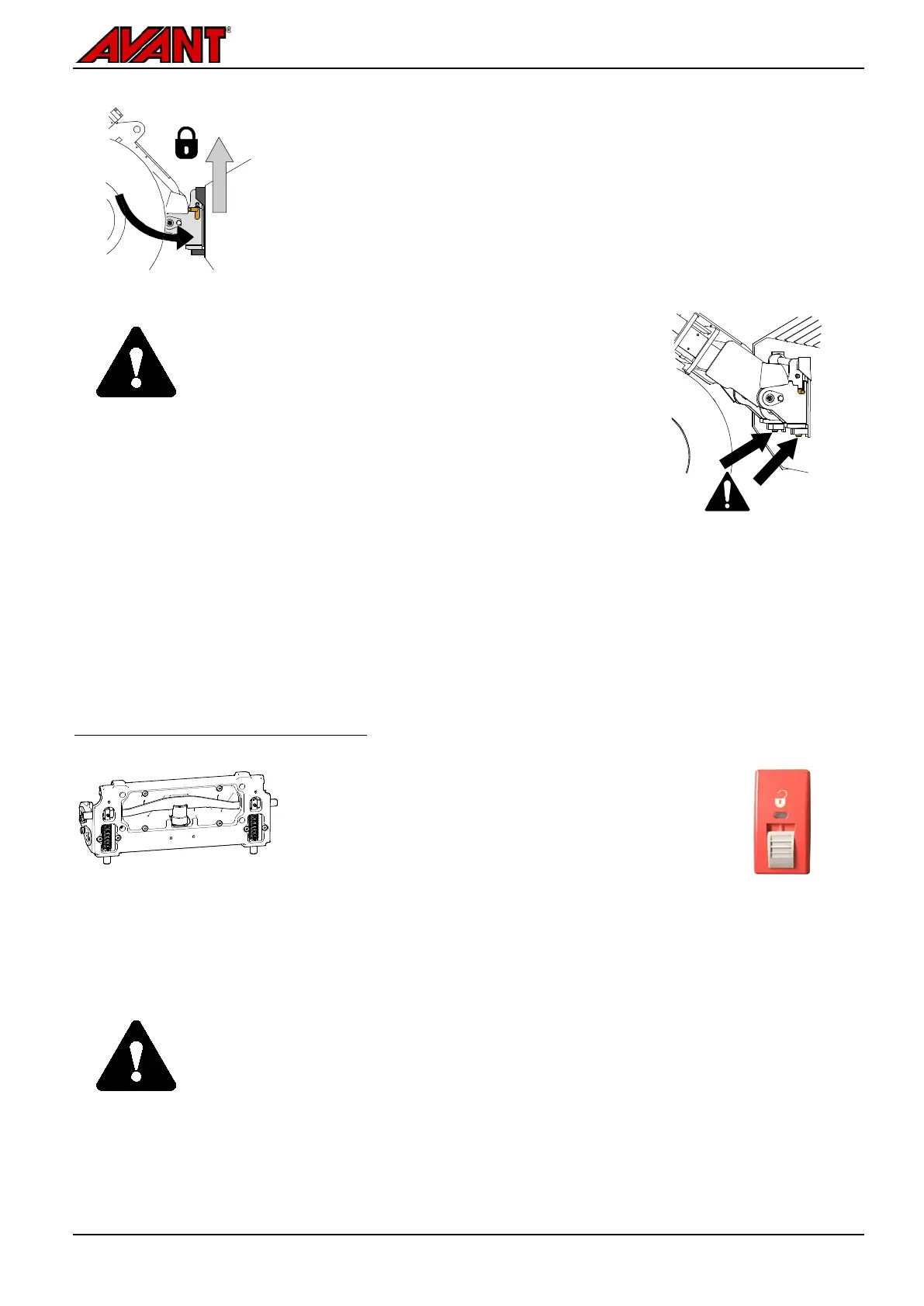

Step 3:

Lift the boom slightly –
pull the boom control lever backward to raise the
attachment off the ground.

Turn the boom control lever left to turn the bottom se
ction of the quick
attach plate onto the attachment.

Lock the locking pins manually or lock the hydraulic locking.

Always check the locking of both locking pins.
DANGER
Risk of falling objects -
Prevent dropping of
attachment.
 An attachment that has
not been completely
locked to the loader may fall on the boom or
towards the operator, or fall under the loader
during driving, causing loss of control of the
loader. Never move or lift an attachment that
has not been locked.
 Before moving or lifting the
attachment, make
sure that the locking pins are in the lower
position and come through the fasteners on the
attachment on both sides.
Hydraulic attachment coupling
The optional hydraulic attachment couplin
g plate enables
locking and unlocking of an attachment from driver’s seat.
A control switch is located at the control panel on the right
(see page 49
). The switch is equipped with a sliding lock
to deter accidental unlocking of an attachment.
There is a hydraulic cylinder inside the attachment
coupling plate which moves the locking pins up and down.
To operate the locking system the loader engine must be
running.
DANGER
Risk of falling of attachment - Familiarize yourself wit
h the controls of the loader.
Avoid dropping of the attachment. Operate the hydraulic coupling only when the
attachment is close to the ground.
Always make sure that the locking pins lock properly down in the holes of the attachments
also when using the hydraulic locking. Both pins must be locked.
