Wireless Fixed Base
Issue 6 September 2001
3-19

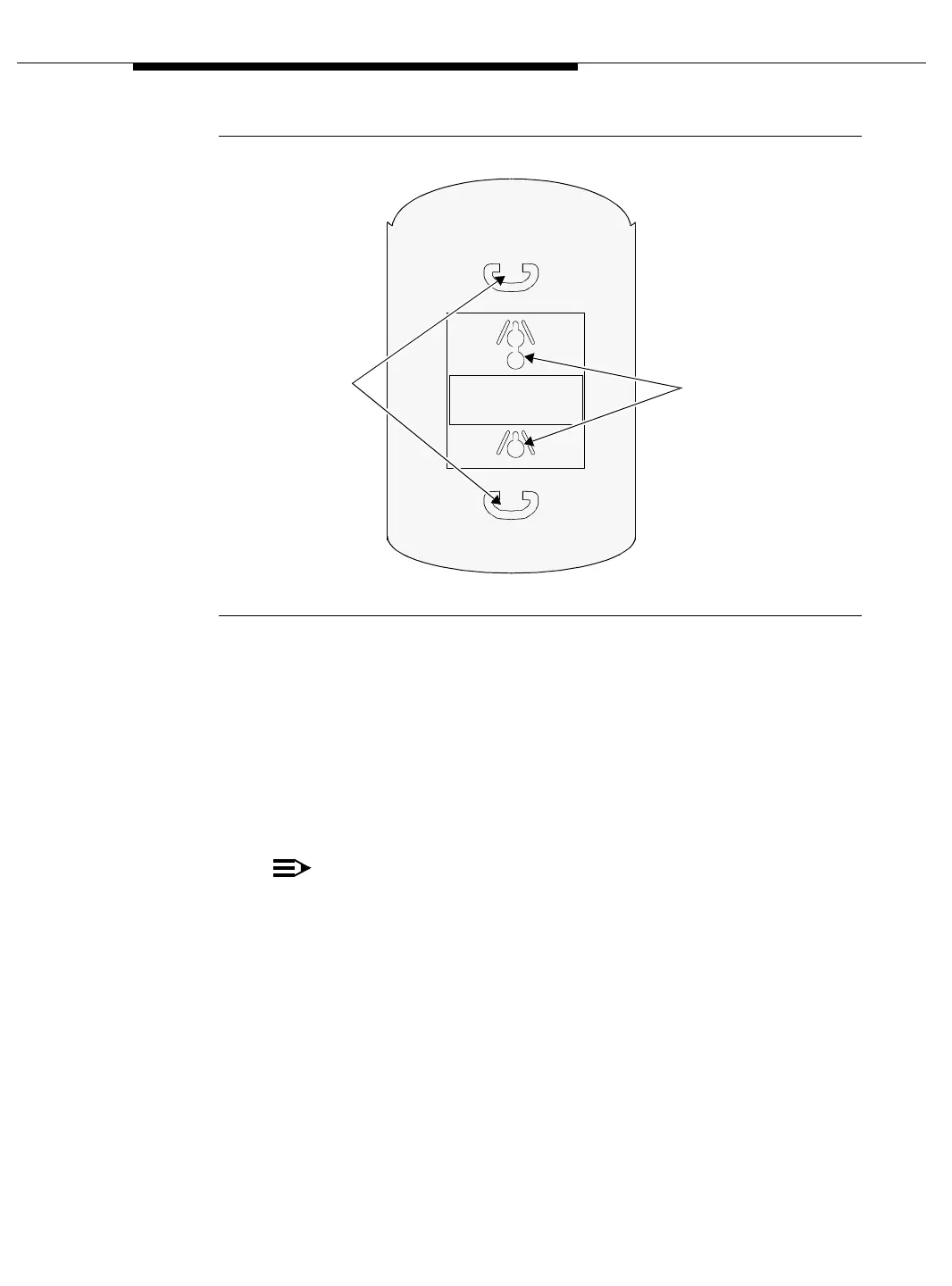

Figure 3-6. Mounting Points of the WFB
4. Unpack the WFB.
5. The WFB can be mounted on a wall or similar structure by using a standard
telephone mounting plate. The mounting plate and screws must be
obtained separately because they are not part of the WFB installation
package.
6. Using a screwdriver, attach the mounting plate at the location designated in
the installation map (shown in the previous figure).
NOTE:
WFBs with an internal antenna or CAUs must not be mounted within one
meter of one another to conform to the FCC Part 15 Rules. If a WFB does not
have an internal antenna, it can be placed next to a WFB or a CAU.
7. Slide the WFB onto the mounting plate.
8. Remove the cover of the WFB. The cover is located above the logo on the
upper portion of the WFB, and it is held in place by tabs on the sides of the
unit. By lifting both corner tabs, you can slide off the cover. See the next
figure.
Tie Wrap
Mounting Tabs
Wall
Mounting
Slots
