AVer SVC100 User Manual

4

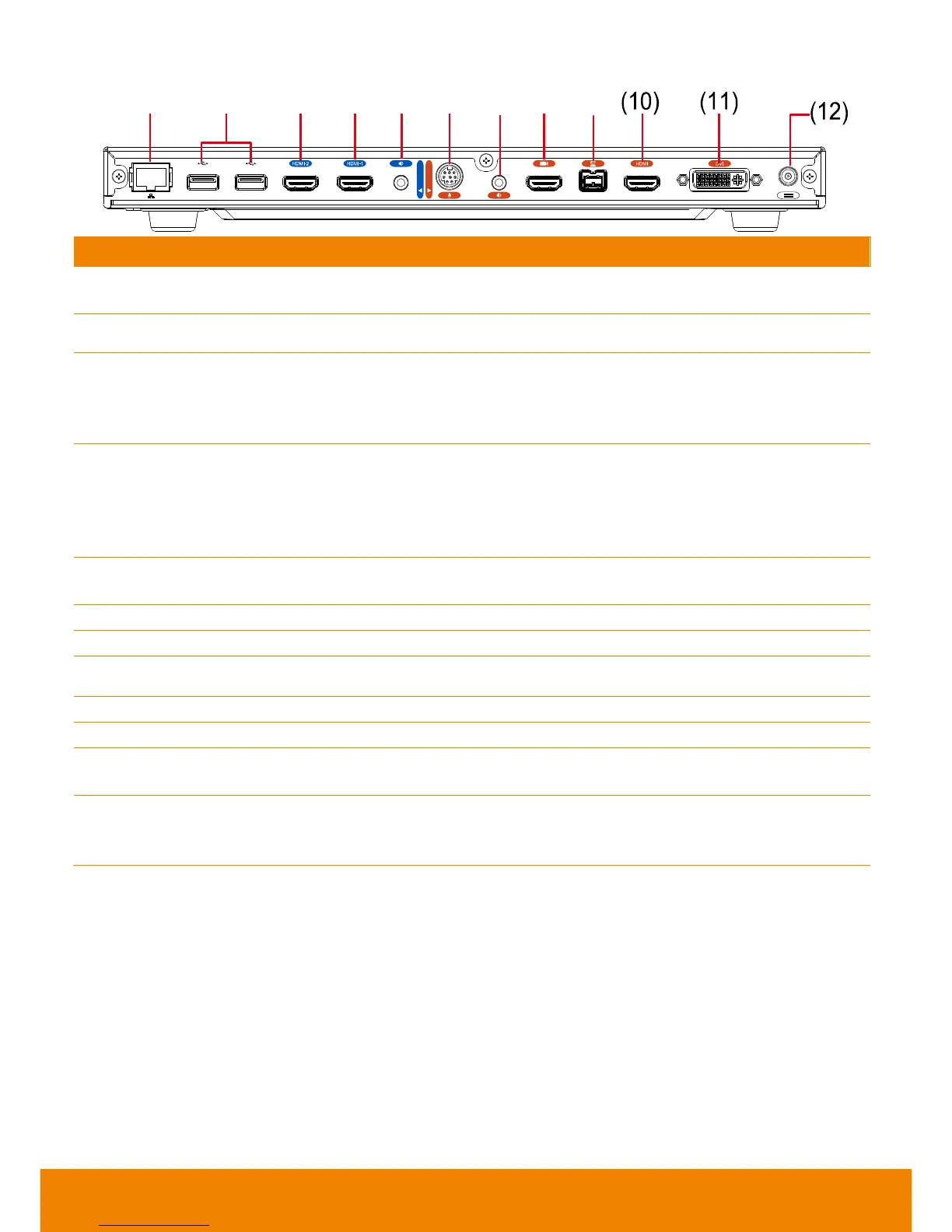

Back Panel:
OUTPUT
INPUT
(1) (2) (3) (4) (5) (6)
(7)
(8)
(9)
Name
Function
(1) LAN Port
Use the RJ-45 Ethernet cable to connect an IP-based network to the LAN
port.
(2) USB Port
To connect the USB storage for system log saving and FW upgrade.
(3) HDMI-2 Port
Connect the HDMI cable to the HDMI-2 output port located on the back
panel, and connect the other end of HDMI cable to a display device to output
both video and audio signal. In dual screen configuration, the output screen
connected to this port will be set up to secondary screen automatically.
(4) HDMI-1 Port
Connect an HDMI cable from the HDMI monitor to HDMI-1 output port
located on the back panel. The HDMI interface allows you to transmit both
audio and video signals over a single cable (HDMI cable). In dual screen
configuration, the output screen connected to this port will be set up to
primary screen automatically.
(5) AUDIO OUT Port
Use to connect the main system to external speakers or amplifiers for audio
signal output.
(6) MIC IN Port
Receive audio signal from MIC device via a mini din 8 pin MIC cable.
(7) AUDIO IN Port
Receive audio signal from an external audio source through the audio cable.
(8) HDMI IN(for 2
nd
Camera)
To connect 2
nd
camera via a HDMI cable.
(9) CAMERA IN Port
Connect the camera to the main system via a camera cable.
(10) HDMI Input
Connect an external HDMI source as an input via this port.
(11) DVI IN Port
Using the DVI to VGA connector to transfer the DVI to VGA interface and
through the VGA cable connects to the PC or NB.
(12) POWER Port
Connect the power supply cord and adapter to the power port located on the
back panel. And connect the other end of the power cord to a suitable power
outlet.
