5 — Electrical Drawings
Service Instructions RP-A301CE/RP-A351CE/RP-A355CE 5 - 5

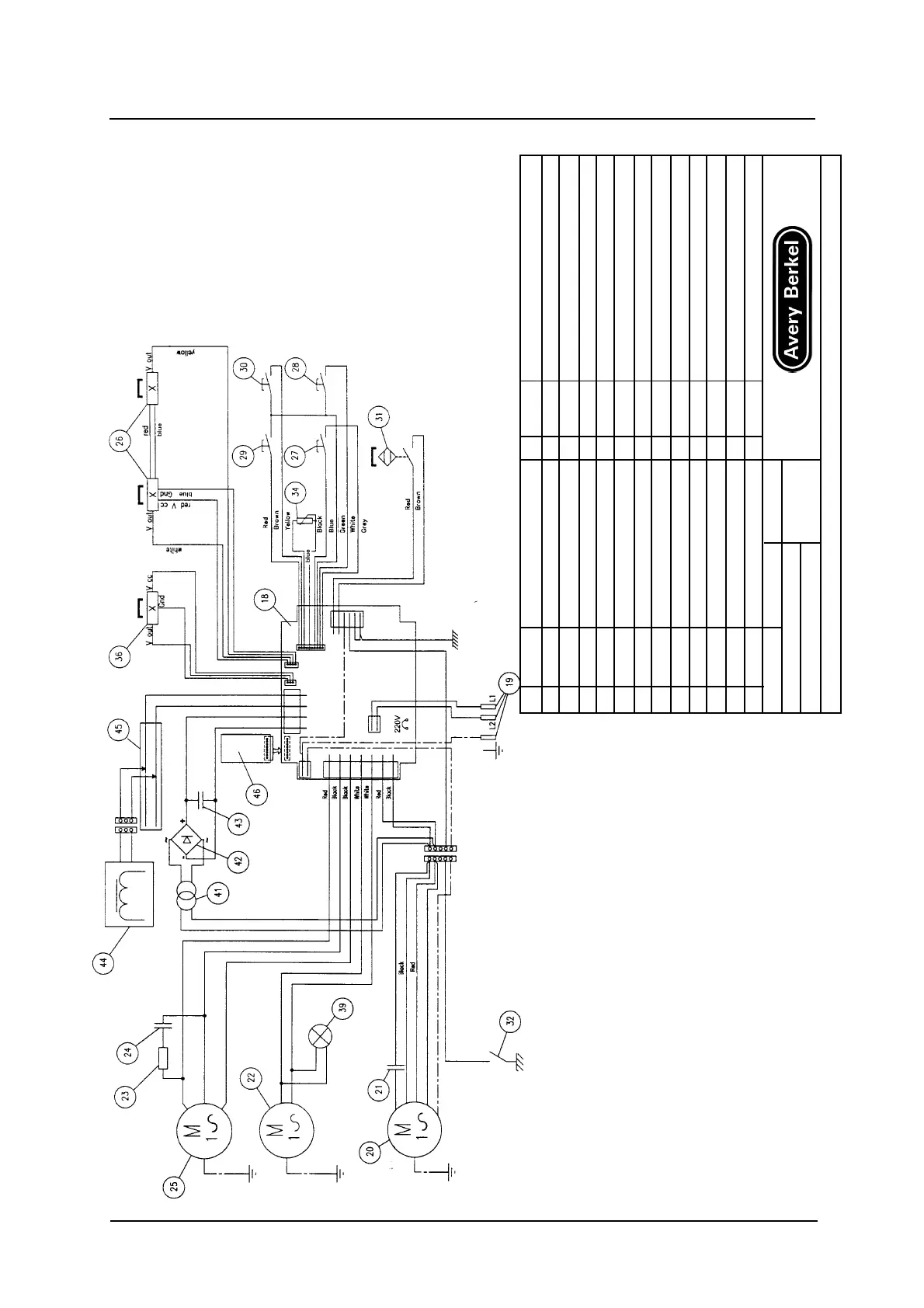

5.3 Circuit diagram RP-A355CE
No PART No DESCRIPTION No PART No DESCRIPTION
18 S3251 PRINTED CIRCUIT BOARD 30 CARRIAGE START PUSHBUTTON
19 C6081 PLUG CORD 31 I3647 CARRIAGE MICROSWITCH
20 M8242 BLADE MOTOR 32 BLADE COVER CONTACT
21 M5807 CAPACITOR 10uF 450 VI 34 CARRIAGE STROKE ADJUSTMENT
22 V4012 FAN 36 I3647 HALL EFFECT SWITCH
23 R4002 RESISTOR 50W 22 OHM 41 TRANSFORMER 220Va.c. - 24Va.c.
24 C5812 42 RECTIFIER
25 M8357 CARRIAGE MOTOR 43 CAPACITOR 4700uF 50 V
26 I3646 HALL EFFECT SWITCH 44 INDUCTOR WITHMAGNETIC CORE
27 BLADE STOP PUSHBUTTON 46 C8232 PRINTED CIRCUIT BOARD
28 BLADE START PUSHBUTTON 46 S3250 PRINTED CIRCUIT BOARD
29 CARRIAGE STOP PUSHBUTTON
N
o
DESIGN DATE MACHINE
S 2273 01-05-99 RP-A355CE
TENSIONE: 230V-50Hz
Ci riserviarno la proprieta’a termine di legge di questo disegno con divieto di riprodurlo anche in parte a di renderlo noto a terzi.
