6 — Technical Information
Service Instructions RP-A301CE/RP-A351CE/RP-A355CE 6 - 7
The knife must be replaced once its diameter reaches 10 mm less than its
nominal value. The reduction of the knife diameter could require a correct
adjustment of the sharpener, which should be positioned in this way:
1. Lift up the protection cover (pos 1 figure 6-6) and rotate the sharpener into
its sharpening (pos 2) position.
2. Remove the caps (pos 2 and 3, figure 6-6), loosen the screw (pos 4
figure 6-7), lower the sharpener as necessary by checking that both stones
are positioned, as regards the knife, as shown in figure 6-7 and figure 6-6;
then fasten the screw (pos 4).
3. Loosen the screw (pos 5 figure 6-7), put the sharpener into its not operating
position (figure 6-6), rotate the cam (pos 6 figure 6-7) anticlockwise till the
end of the stroke. Loosen the screw pos.8 and rotate the excentric either
clockwise or anticlockwise (pos 9 figure 6-7) and check that the movable
guard (pos 7 figure 6-6) juts out over the knife edge, as shown in
figure 6-6 and then fasten the screw 8 (pos 8 figure 6-7).
4. Reset the sharpener into its sharpening position (figure 6-7) and meantime
rotate the cam clockwise (pos 6 figure 6-7), checking that there are no
interferences in the rotation between the trimming stone and the movable
guard (pos 7 figure 6-7) then fasten the screw (pos 5).

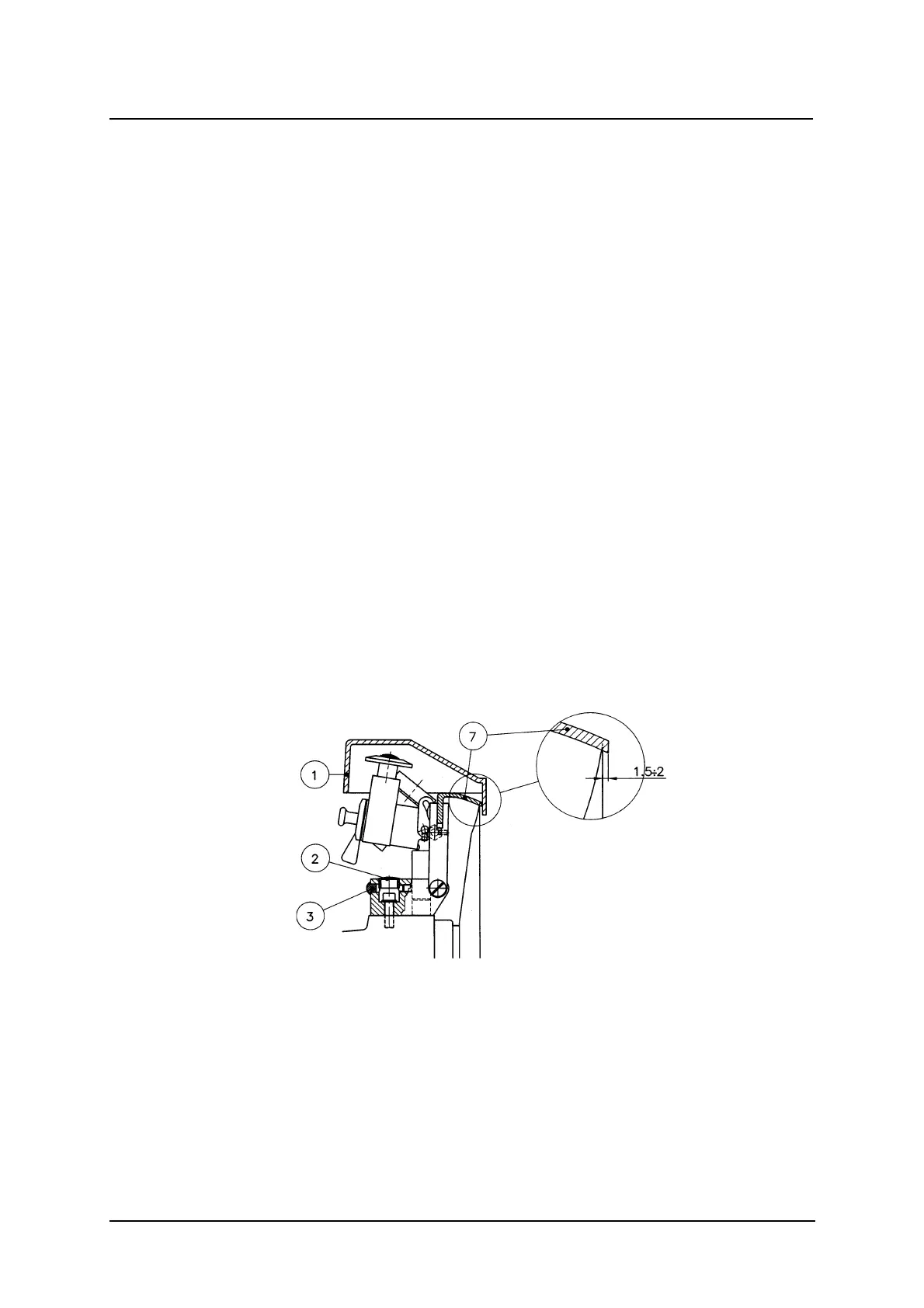

Figure 6-6
6.3 Sharpener settings/adjustments RP-A351CE/A355CE
