XLR-6, XLR-8 and XLR-12 Installation Instructions 11
3.2 Adapter Mounting Plate
When utilizing the Rail Mount bracket (refer to Figure 3.2), there is an adapter mounting
plate (PN AWT20-504460), see Figure 3.3.
Weld or mount the plate to a surface. You can use hose clamps through the slots
marked with a A in Figure 3.3 to mount it to a pole or post.
There must be a 1/2 space between the plate and the mounting surface to allow room
for the XLR to fit over the mounting plate.
Slip the mounting plate up into the slot on the back of the XLR and use bolts to attach
the XLR to the mounting plate through the bottom, mating holes marked with the letter
B in Figure 3.3.
The other holes are used to mount various other Avery Weigh-tronix V-mount brackets
and objects.

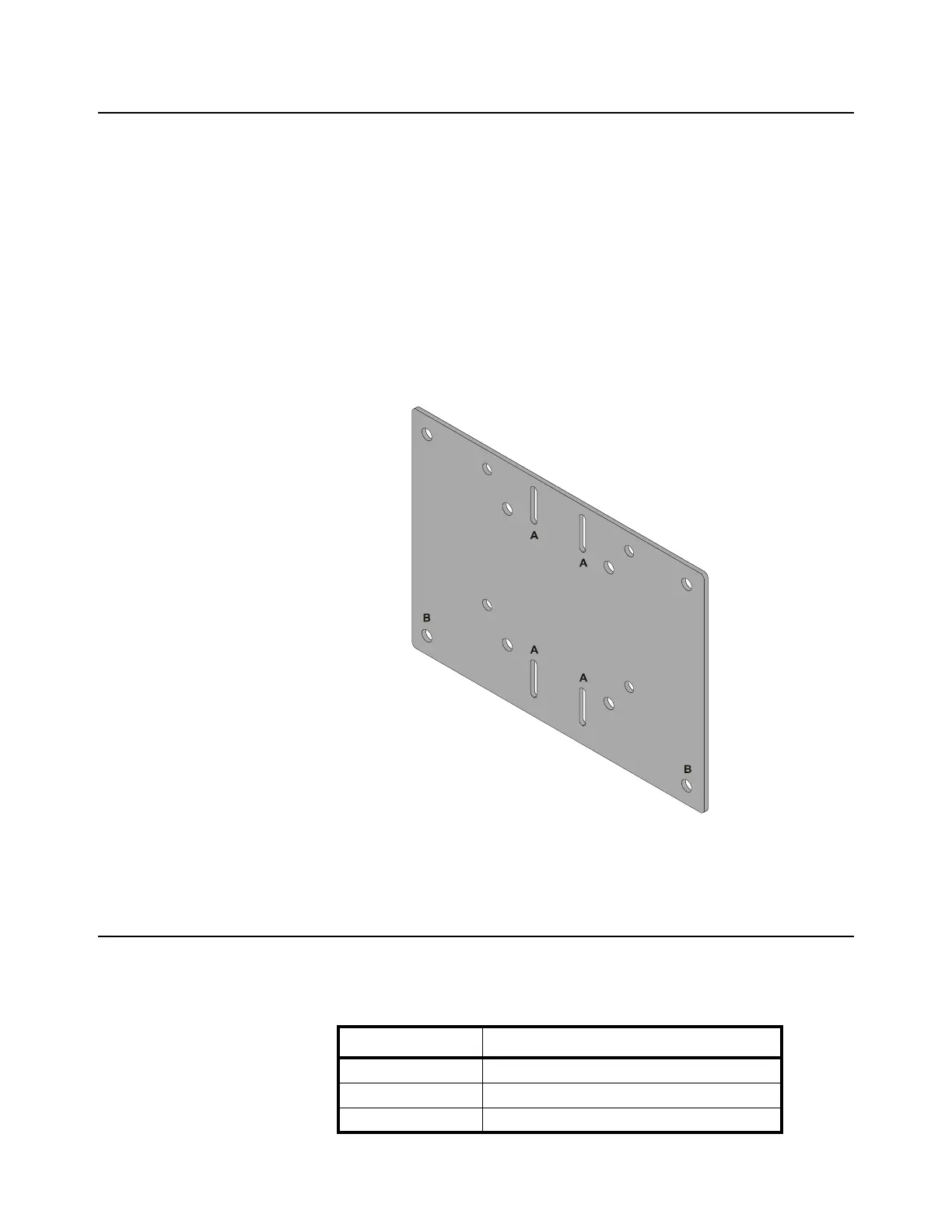

Figure 3.3 Adaptor Mounting Plate
3.3 Stainless Steel Shield
It is highly recommended to use the optional Stainless Steel Shield with the XLR series
remote display. The Stainless Steel shield will help keep dust and moisture off of the
display to improve viewing quality.
Part Number Description
AWT20-508532 Protective Stainless Steel Shield XLR-6
AWT20-504832 Protective Stainless Steel Shield XLR-8
AWT20-504833 Protective Stainless Steel Shield for XLR-12
