XLR-6, XLR-8 and XLR-12 Installation Instructions 23

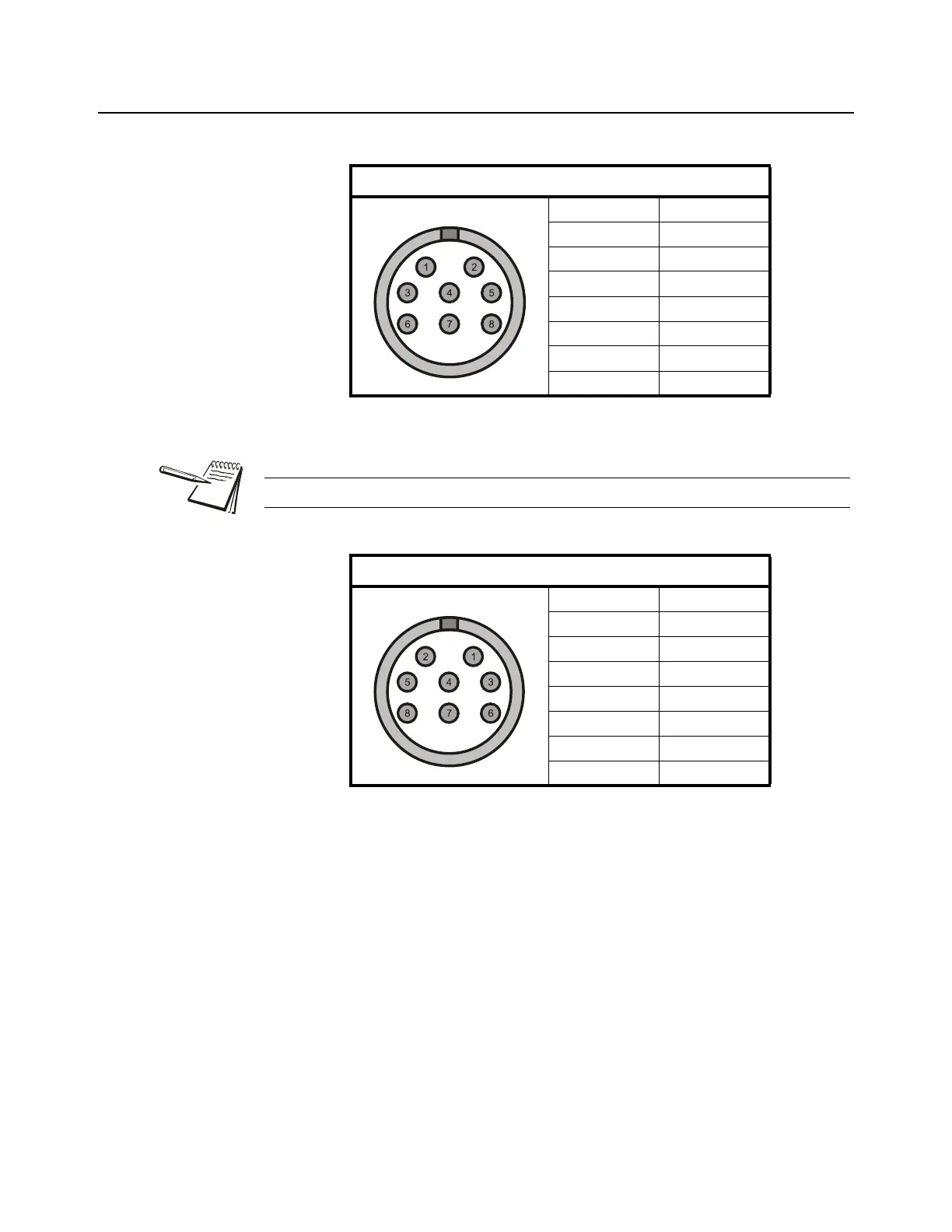

4.2 Connector Pin outs

Avery Weigh-Tronix RS-232 (8 pin male)

Pin 1 Not used

Pin 2 RS232 Tx

Pin 3 Not used

Pin 4 RS232 Rx

Pin 5 GND

Pin 6 GND

Pin 7 PWR ON

Pin 8 +12V

When using Connector A, 12V must be supplied to Pin 7 for the unit to turn on.

Digi-Star (8 pin female)

Pin 1 +12V

Pin 2 +12V

Pin 3 Clicker

Pin 4 Data

Pin 5 Clock

Pin 6 GND

Pin 7 Not used

Pin 8 GND
