24 XLR-6, XLR-8 and XLR-12 Installation Instructions
5 Learn a New Transmitter Code (channel 1)

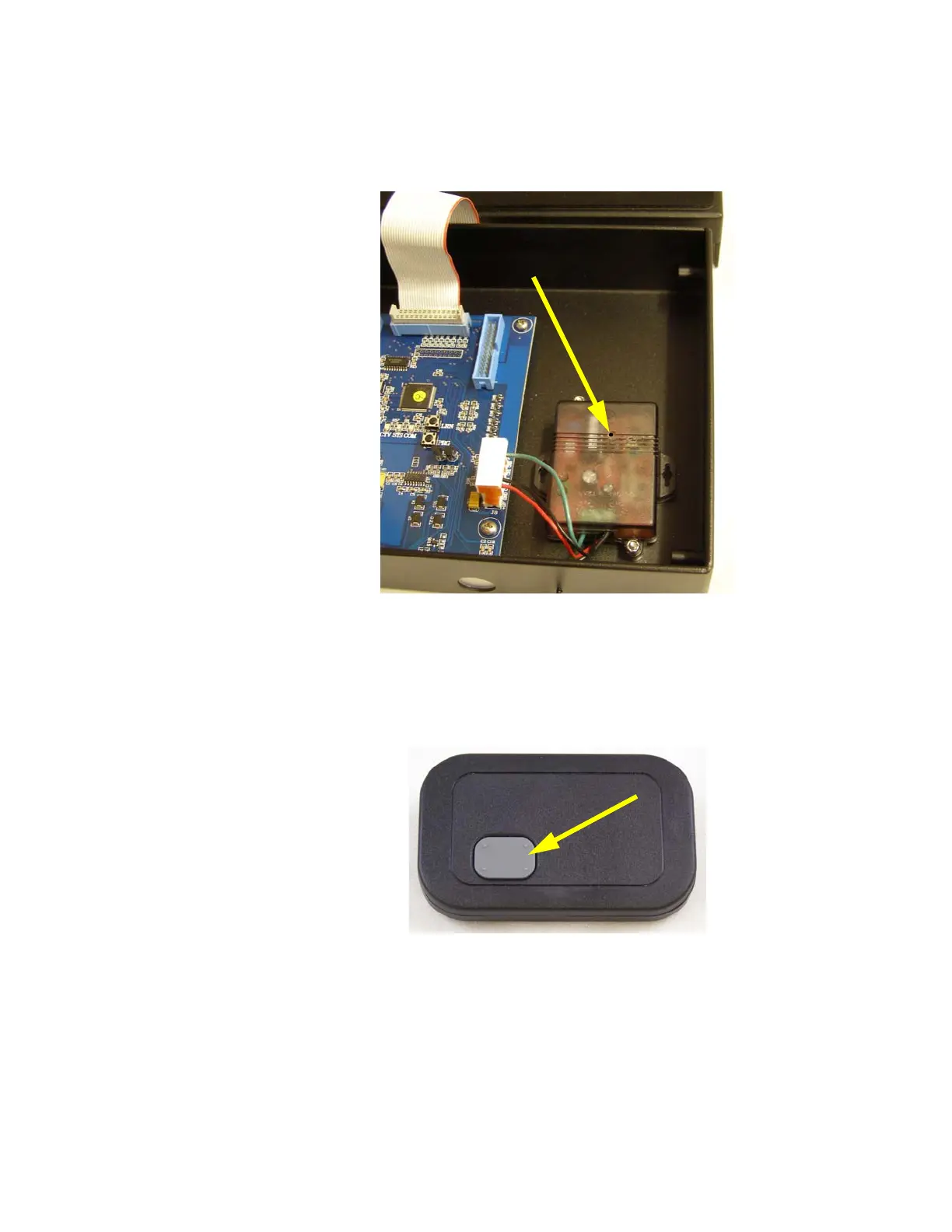

1. Press the mode switch, pointed out in Figure 5.1.
The green LED will start to flash quickly.
Figure 5.1 Mode button on the remote receiver (PN AWT25-500927)
2. While the green LED is flashing quickly (approximately 15 seconds), press the
button on the remote transmitter shown in Figure 5.2.
The green LED will flash once and then turn off to show that the button
was learned.
Figure 5.2 Remote button (AWT15-501088)
3. Repeat steps 1 and 2 to learn more buttons into channel 1.
