XLR-6, XLR-8 and XLR-12 Installation Instructions 9
2 Introduction
The XLR-6, XLR-8 and XLR-12 remote displays incorporate the most features and
highest performance standards of any agricultural weighing display; making them the
best choice for remote viewing applications.
The XLR series features:
l Scrolling 8 or 12 character full Alphanumeric Display.
l Ultra wide viewing angles up to 120 degrees.
l Multi interface support including: Avery Weigh-Tronix, Digi-Star and RS-232
Computer interfaces.
l Quad (single for XLR-6) LED digits offering bold and easy to read digits in
direct sunlight.
l Dedicated bar graph assists in loading of ingredients.
l Large G and N annunciator for clear Gross/Net indication.
l Built-in standard Radio Clicker for ingredient advancement.
l Auto brightness control dims the display for ease of reading display at night
time (XLR-8 and XLR-12 only).
l Easy to use communication protocol for custom applications.
l Same installation bracket and bolt pattern across all 3 models.

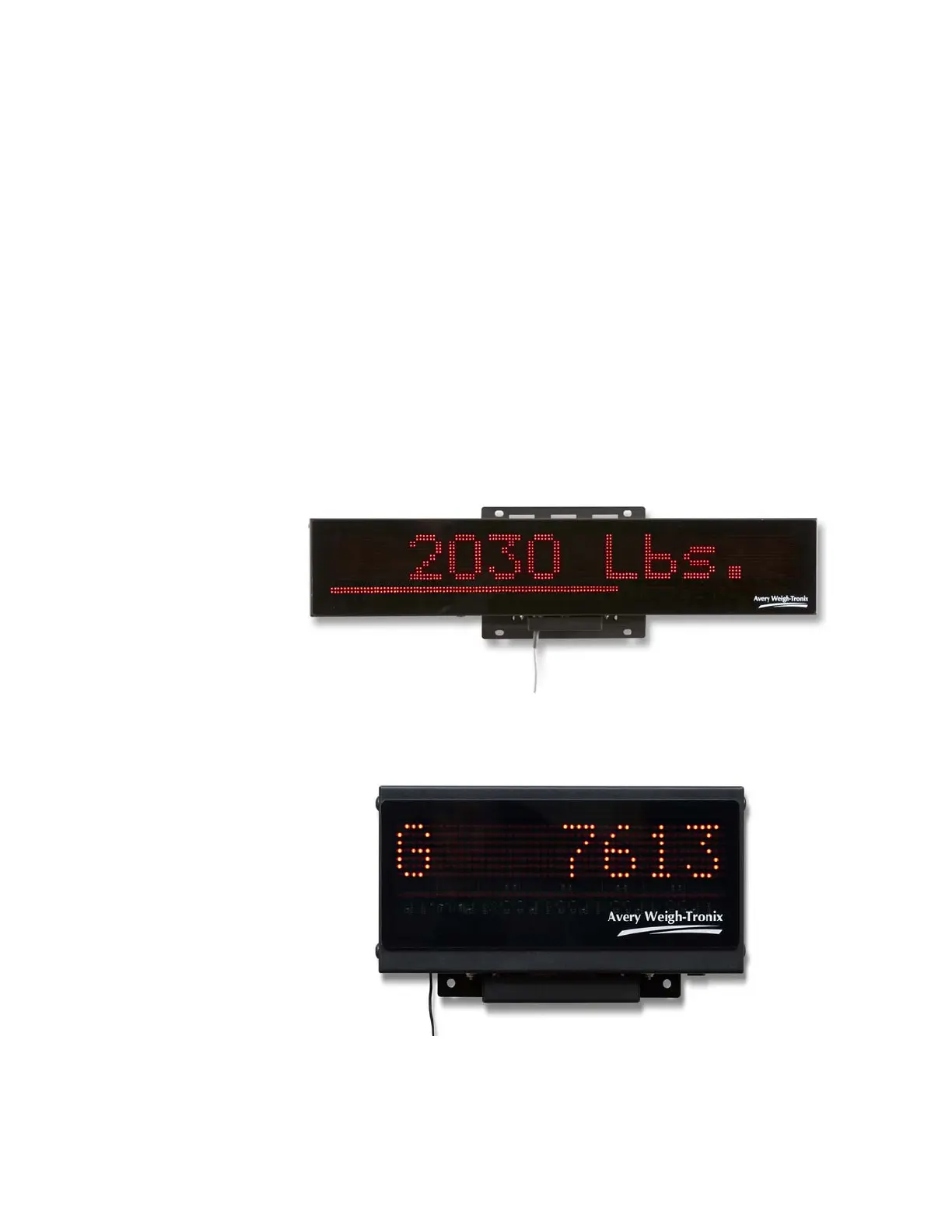

Figure 2.1 XLR-8 and XLR-12 Remote Display
Figure 2.2 XLR-6 Remote Display
NOTE: Remove the protective film on the XLR display. If the film is left on, it will
bake on the display over a period of time and decrease visibility.
