3.4 Connecting the Display to Your Equipment
All connections are made at the bottom of the unit using Amphenol 8-pin RS-232
circular connectors. All power and communications goes through a single cable.
3.4.1 XLR-8 / XLR-12 Connections
If you are connecting to Avery Weigh-Tronix or equipment that uses RS-232
communications, then you will be connecting to connector A (8 pin male). If you are
using Digi-Star equipment then connect to connector B (8 pin female). Use only
supplied cable assemblies from the manufacturer.

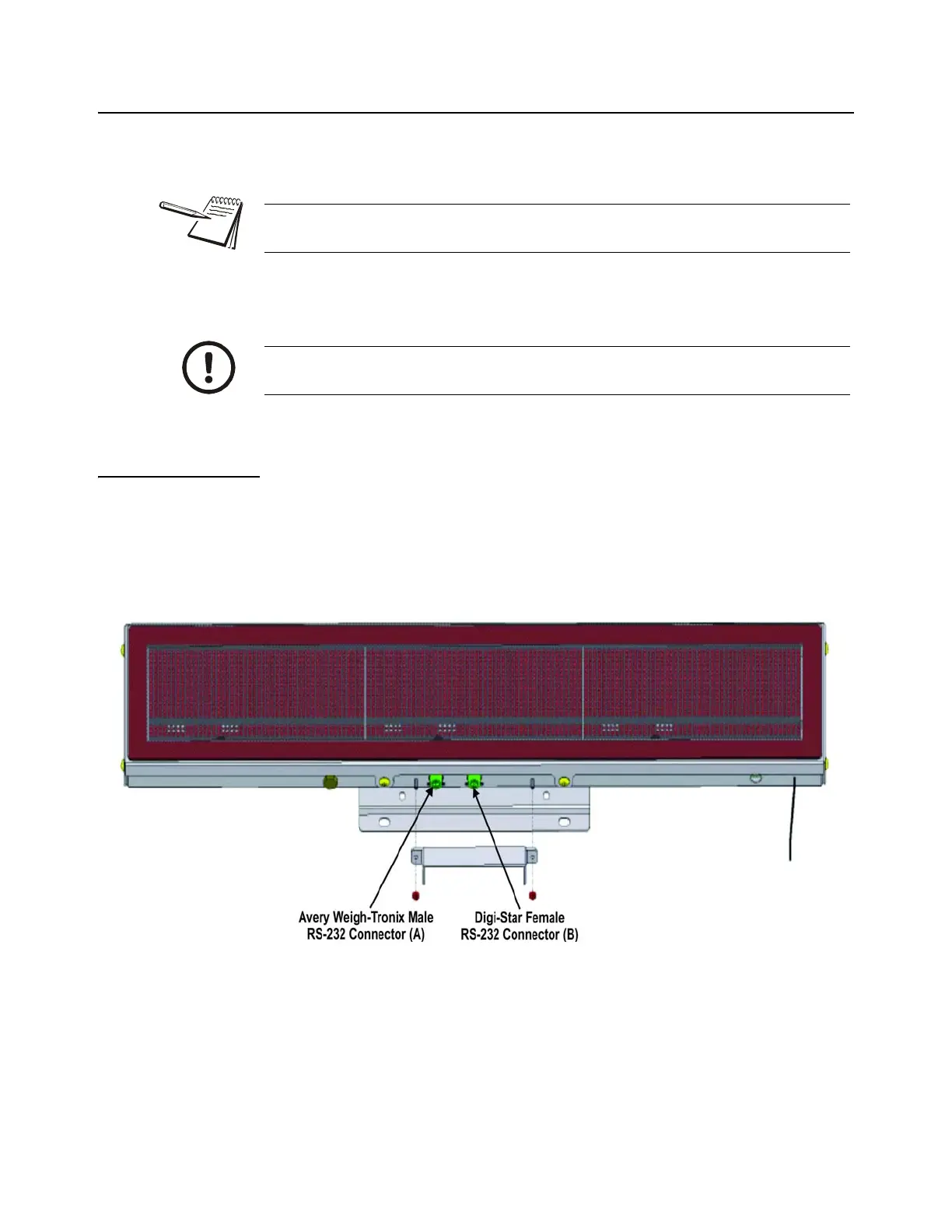

Figure 3.4 XLR-8 / XLR-12 Connector Configuration
NOTE: The XLR remote never needs to be opened for wiring. There are no switch
settings or internal adjustments required.
CAUTION: Never pressure wash your display as water may be forced through
the connectors causing electrical problems.
