14 XR Series Installation and Technical Instructions
Installation

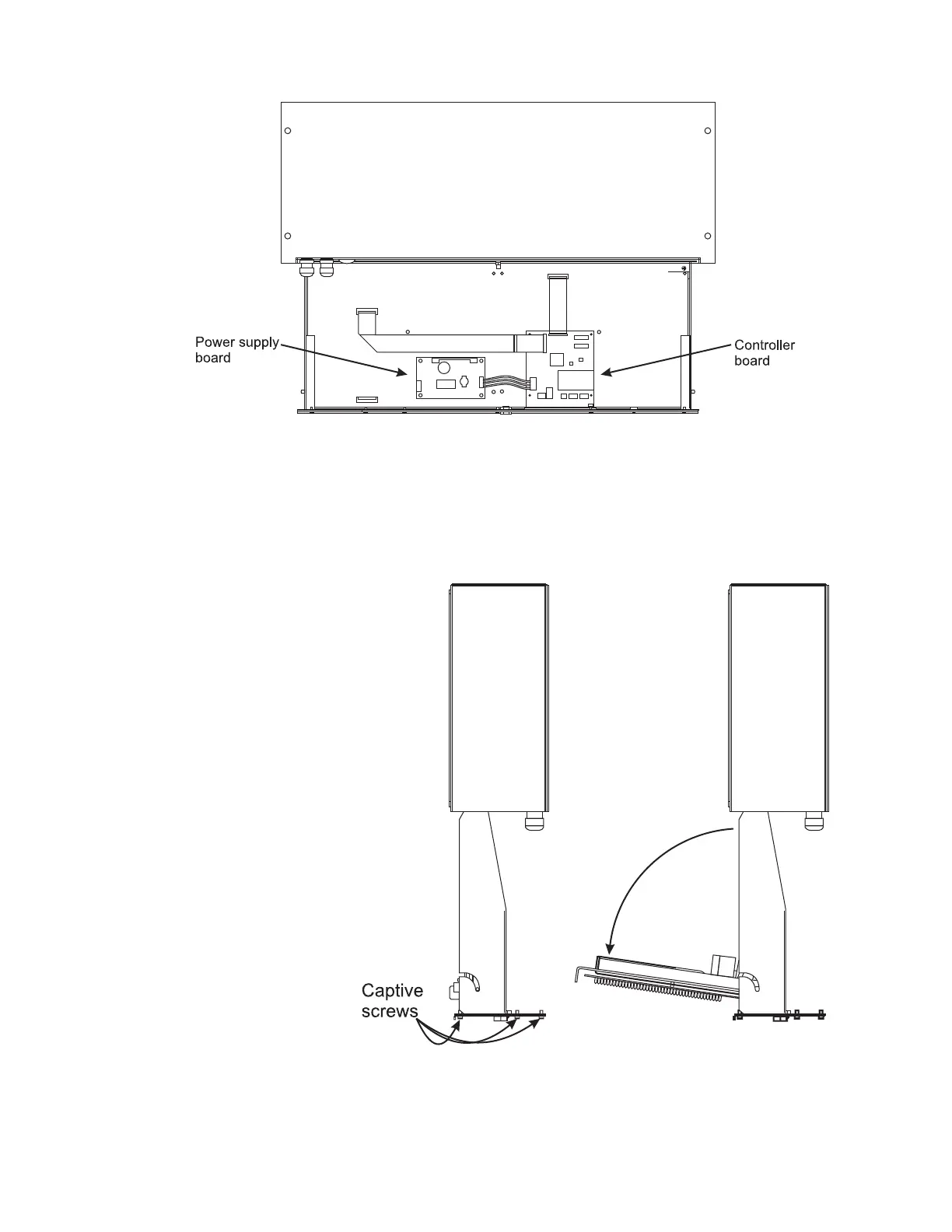

Figure 2.6 Back view
Lowering the Electronics Plate 1. Remove the two (2) captive screws holding the electronics plate to the
electronics carriage.
2. Slowly, allow the electronics plate to swing down, making access
easier for wiring and service. See Figure 2.7.
Figure 2.7 Side view
