Avery Weigh-Tronix XR Series - CONFIG Switches (XR 2000)

XR Series Installation and Technical Instructions 39
6.2 CONFIG Switches (XR 2000)
6.2 CONFIG Switches (XR 2000)
The CONFIG bank of dip switches (SW 3), shown in Figure 6.4, is for the
following features:

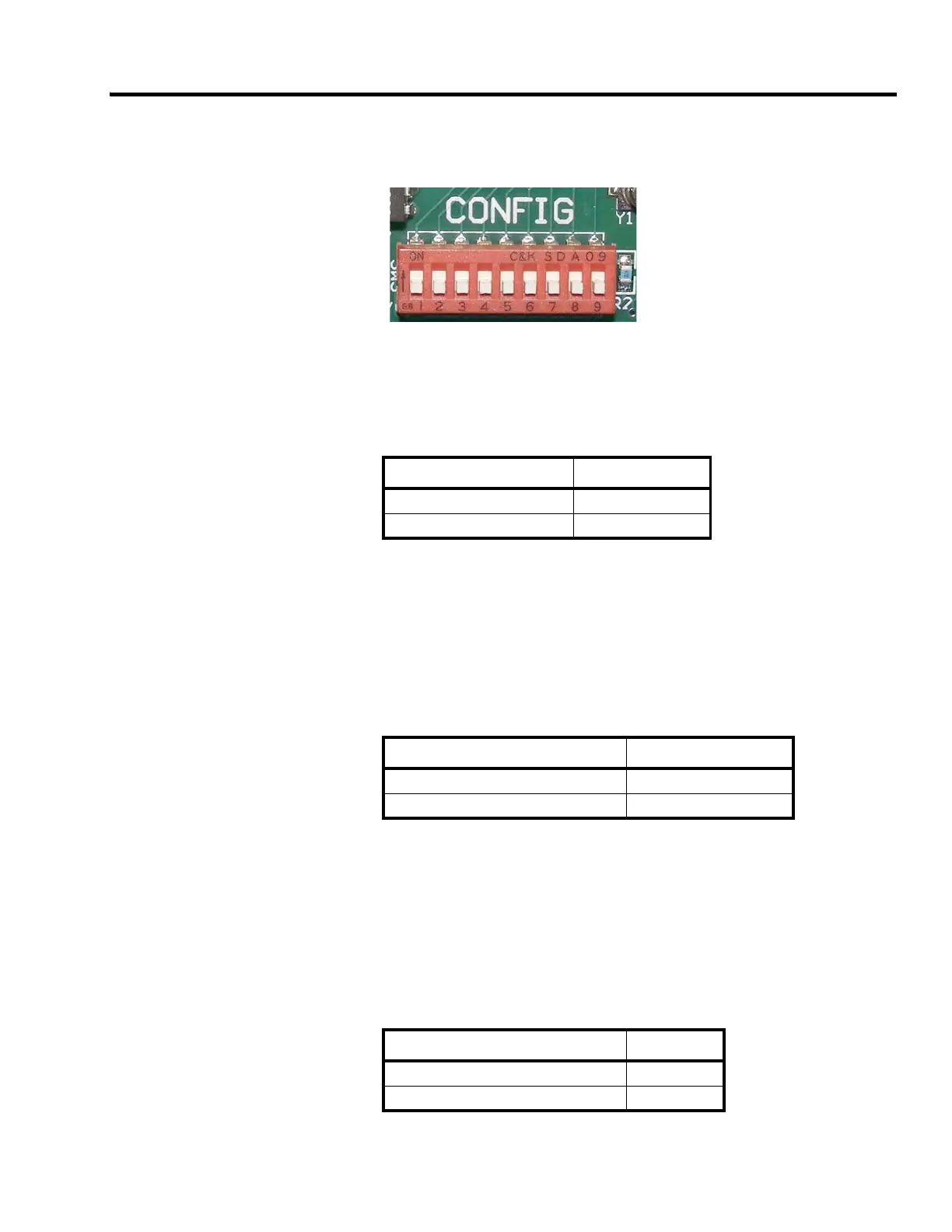

Figure 6.4 SW 3 (CONFIG Switch bank)
Switch 1: Brightness Level
There are 2 selectable brightness levels. Outdoor (brighter) and indoor (less
bright).
Switch 2: Leading Zeros (see note at left)
Leading Zeros may also be
disabled using the scale indicator
(if possible).
In some cases, the scale indicator may transmit leading zeros in the output
string. If leading zeros are NOT required, they may be suppressed. The XR
2000 will automatically remove the leading zeros and replace them with
blank spaces on the display.
Switch 3: Start-up Auto-Learn
On power up, the XR 2000 automatically enters Auto-Learn mode, analyzing
the serial communications and string type. In certain situations, it may be
necessary to disable this feature. Once disabled, the LEARN button on the
controller board must be pressed before the XR will go into Auto-Learn
mode.
BRIGHTNESS LEVEL SWITCH 1
Indoor (default) OFF
Outdoor ON
LEADING ZEROS SWITCH 2
ENABLED (Default) OFF
DISABLED (Remove Leading Zeros) ON
START-UP AUTO-LEARN SWITCH 3
ENABLED (Default) OFF
DISABLED ON
