Pro Tools | HD I/O Guide18

Connecting Pro Tools | HD I/O to Pro Tools|HD Cards

To connect HD I/O to a Pro Tools|HD card:



Connect HD I/O Primary Port to the DigiLink Port on the first available Pro Tools|HD card with a Dig-

iLink cable (included with your Pro Tools|HD hardware) and a DigiLink Mini adapter.

To connect multiple HD I/Os to a Pro Tools|HD system:

Connect the Primary Port of the first HD I/O to the DigiLink Port on the Pro Tools|HD Accel Core card

with a DigiLink cable (included with your Pro Tools|HD system) and a DigiLink Mini adapter.

Do one of the following:

• Connect the Primary Port of the second HD I/O to the Expansion Port on the first HD I/O with the

included 18-inch DigiLink Mini cable.

• Connect the Primary Port of the second HD I/O to the next available Pro Tools|HD card with a

DigiLink cable and a DigiLink to DigiLink Mini adapter.

Connect additional HD I/Os to additional Pro Tools|HD cards.

Make the necessary Loop Sync connections.

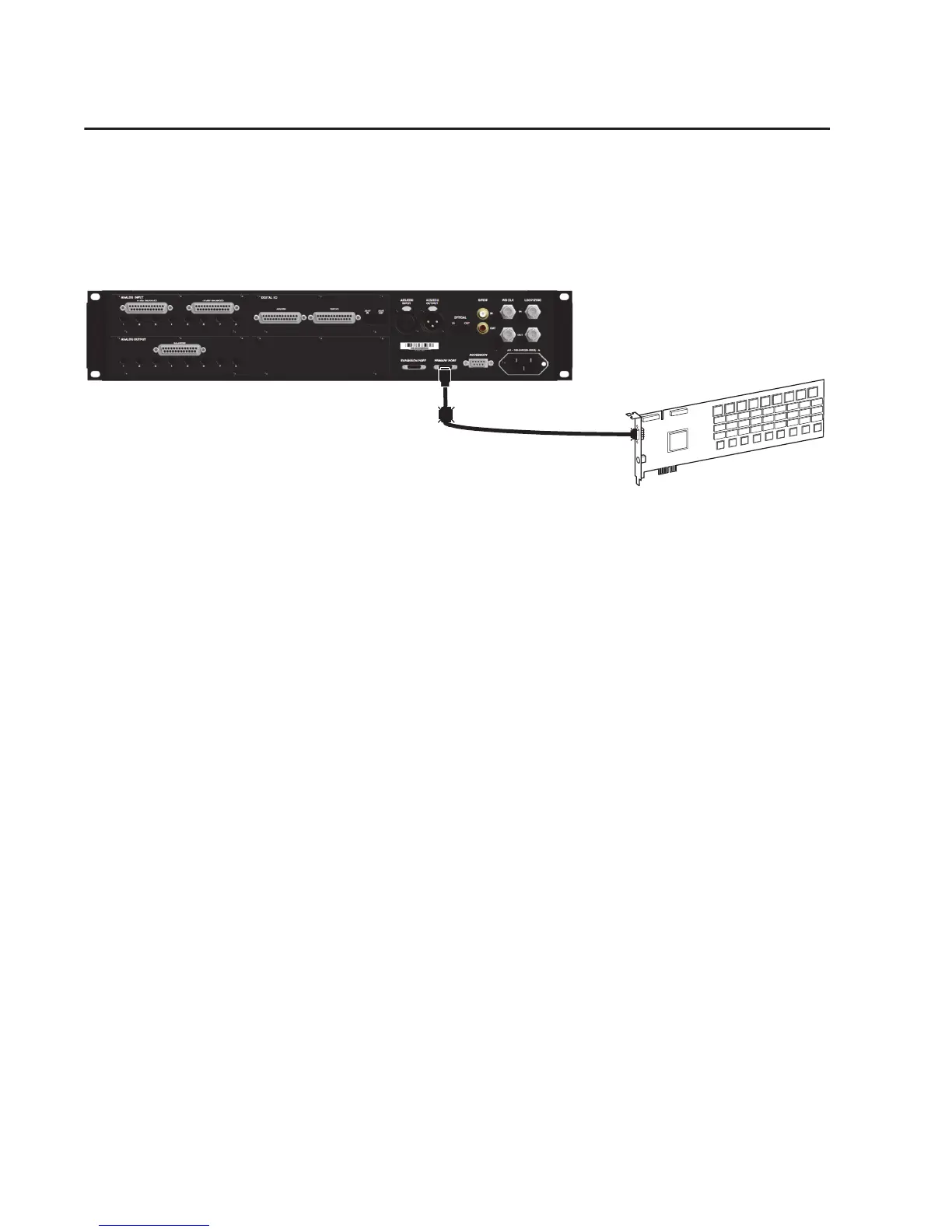

Figure 5. HD I/O connected to the DigiLink Port on a Pro Tools|HD Accel Core card (16-channel I/O system)

12-foot DigiLink cable with

DigiLink Mini adapter
