Chapter 4: Configuring Pro Tools | HD I/O in Pro Tools | HD Software 23
Identify
If you have multiple audio interfaces of the same
type connected to your system, you should confirm
the identity of each interface. This ensures that you
select the appropriate interface in the Peripherals
list when defining its inputs and outputs, and other
settings, in the Hardware Setup dialog.
To identify audio interfaces in your system:
1
Choose
Setup > Hardware.
2
From the Peripherals list, select an audio
interface connected to your system.
3
Select the
Identify
option, located in the lower
left corner of the Hardware Setup dialog. This
illuminates all the LEDs on the front panel of
the selected audio interface.
4
Make a note of which interface in your studio
setup corresponds to the identified interface.
5
Repeat the above steps for each additional audio
interface in your setup.
Configuring HD I/O
To configure controls for HD I/O:
1
Choose
Setup > Hardware
.
2
From the Peripherals list, select the HD I/O
audio interface.
3
Click the
Main
tab and configure the options.
4
If you have at least one HD I/O AD card, click
the
Analog In
tab and configure the options. If
you have two HD I/O AD cards, this tab is la-
beled
Analog In 1–8
.
Use the Up and Down Arrow keys to scroll
though the Peripherals list in the Hardware
Setup dialog.

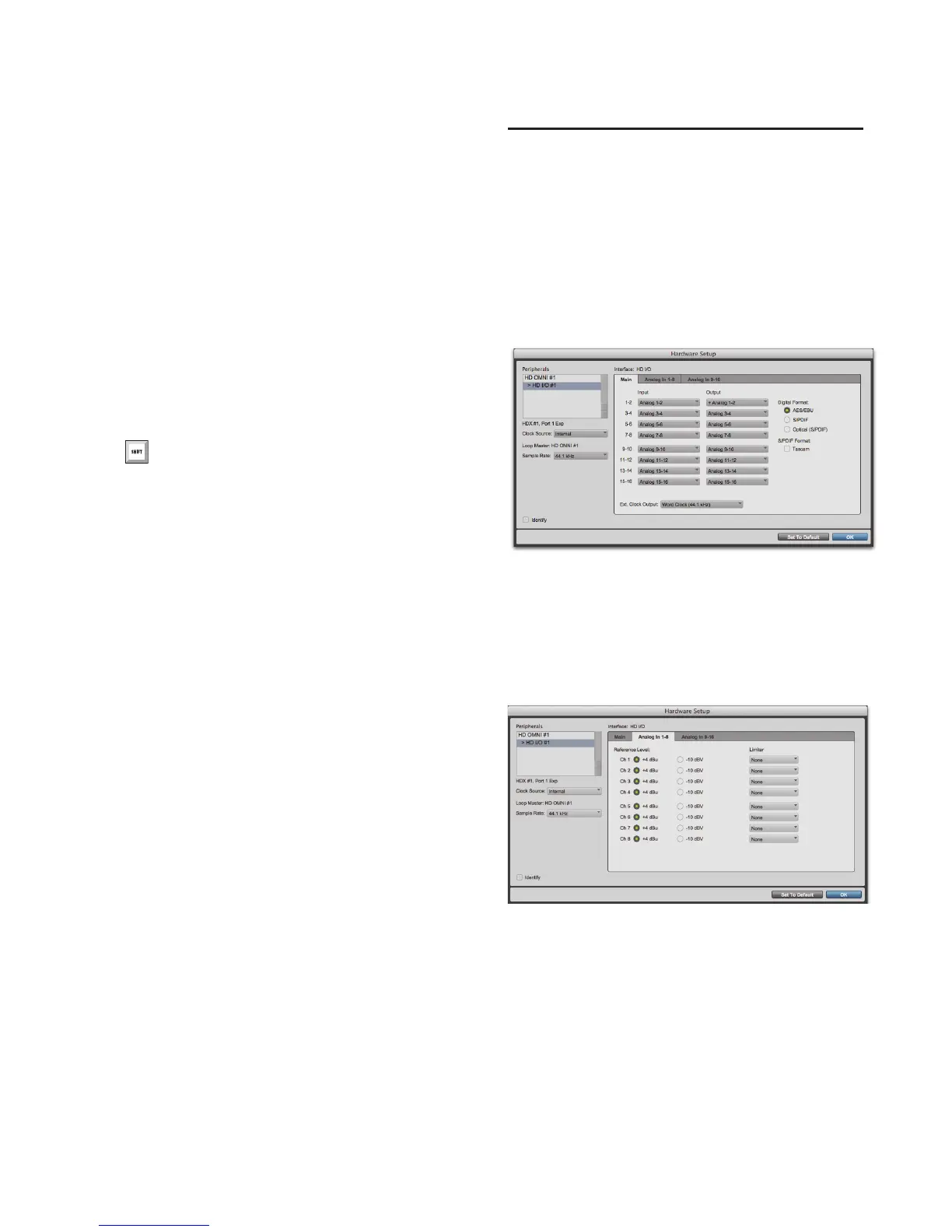

HD I/O Hardware Setup, Main page
HD I/O Hardware Setup, Analog In page
To Next Page
