Avid Technology VENUE S6L Handbook

Configuration 1
Maximum IO Capacity:
Up to 64 Stage Inputs, and up to 32 Stage Outputs
Requirements for Maximum I/O:
•1x Stage 64 (8x 8-ch Input cards, 4x 8-ch Output cards)
•1x AVB-192 Network Card in E6L

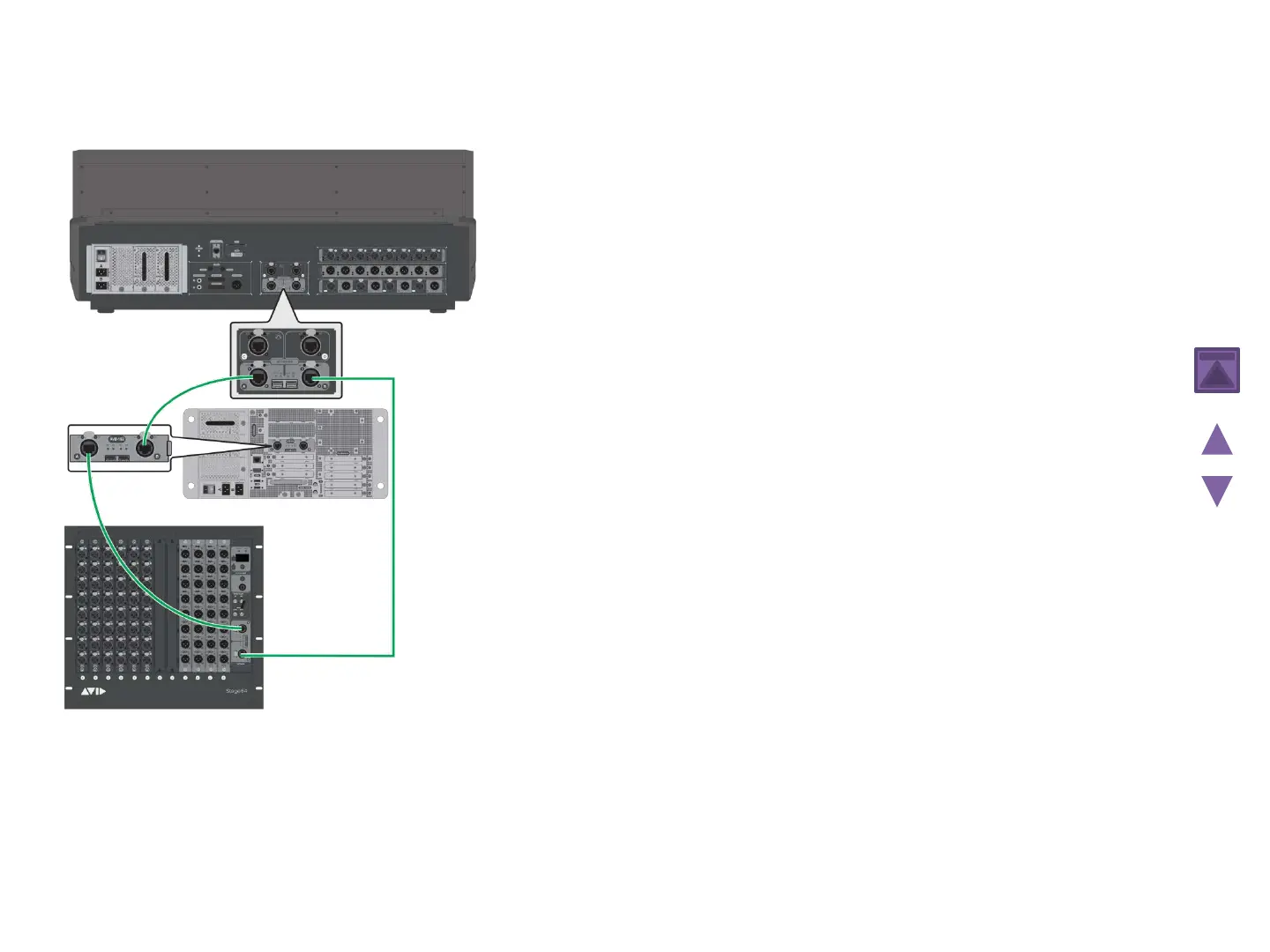

Connections
All connections are made between an “A” port and a “B” port. Examples
(shown at left):
• S6L Network port A connects to port B on the E6L.
• E6L port A connects to Stage 64 port B.
• Stage 64 port B connects to S6L Network port B.
