Configurations with Stage 16
You can use VENUE Stage 16 IO boxes with S6L systems (requires VENUE software version 5.5 or later).

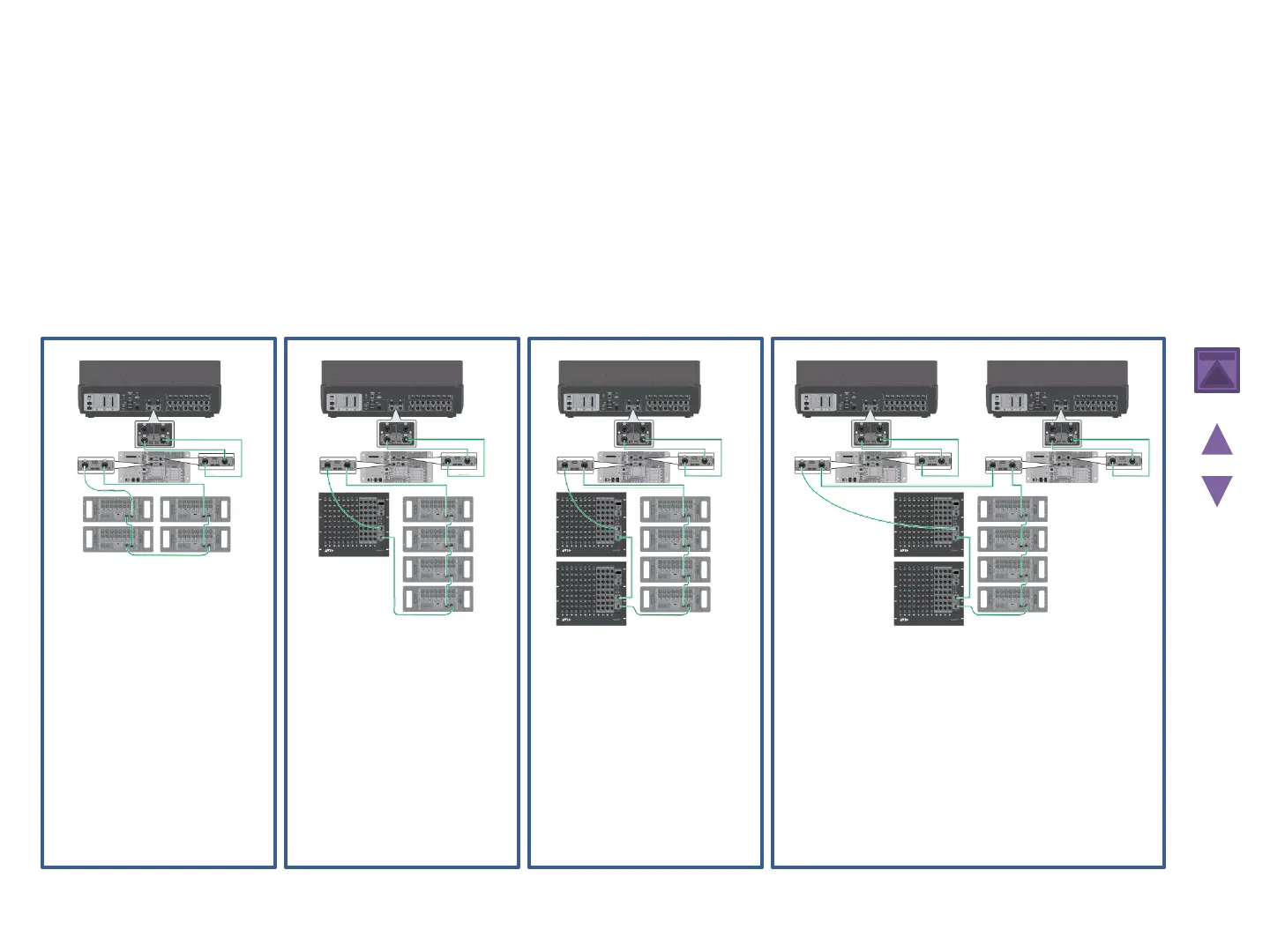

Here are example diagrams of supported configurations with Stage 16s.
Requirements: 2x AVB-192 Network Cards in E6L Engine(s)
Connections: All connections are made between an “A” port and a “B” port.
Maximum I/O Capacity:
• 64 Stage Inputs
• 48 Stage Outputs
Requirements:
• 2x AVB-192 Network
Cards in E6L Engine
• 4x Stage 16s
Maximum I/O Capacity:
• 128 Stage Inputs
• 80 Stage Outputs
Requirements:
• 2x AVB-192 Network Cards
in E6L Engine
• 1x Stage 64
• 4x Stage 16s
Maximum I/O Capacity:
• 192 Stage Inputs
• 112 Stage Outputs
Requirements:
• 2x AVB-192 Network
Cards in E6L Engine
• 2x Stage 64
• 4x Stage 16s
Dual Systems with I/O Sharing
Maximum I/O Capacity:
• 192 Stage Inputs
• 112 Stage Outputs
Requirements:
• 2x AVB-192 Network Cards in both E6L
Engines
• 2x Stage 64
• 4x Stage 16s
